Name: HC1860B SERIES Pluggable Headers
Brand: ebyelectro
Availability: InStock

Euro Style Headers > Shrouded > Power (6mm-20mm) > HC1860B

Approvals

1 1

Power

HC1860B Series - Shrouded - 10.16mm

Request Sample Request 3D File

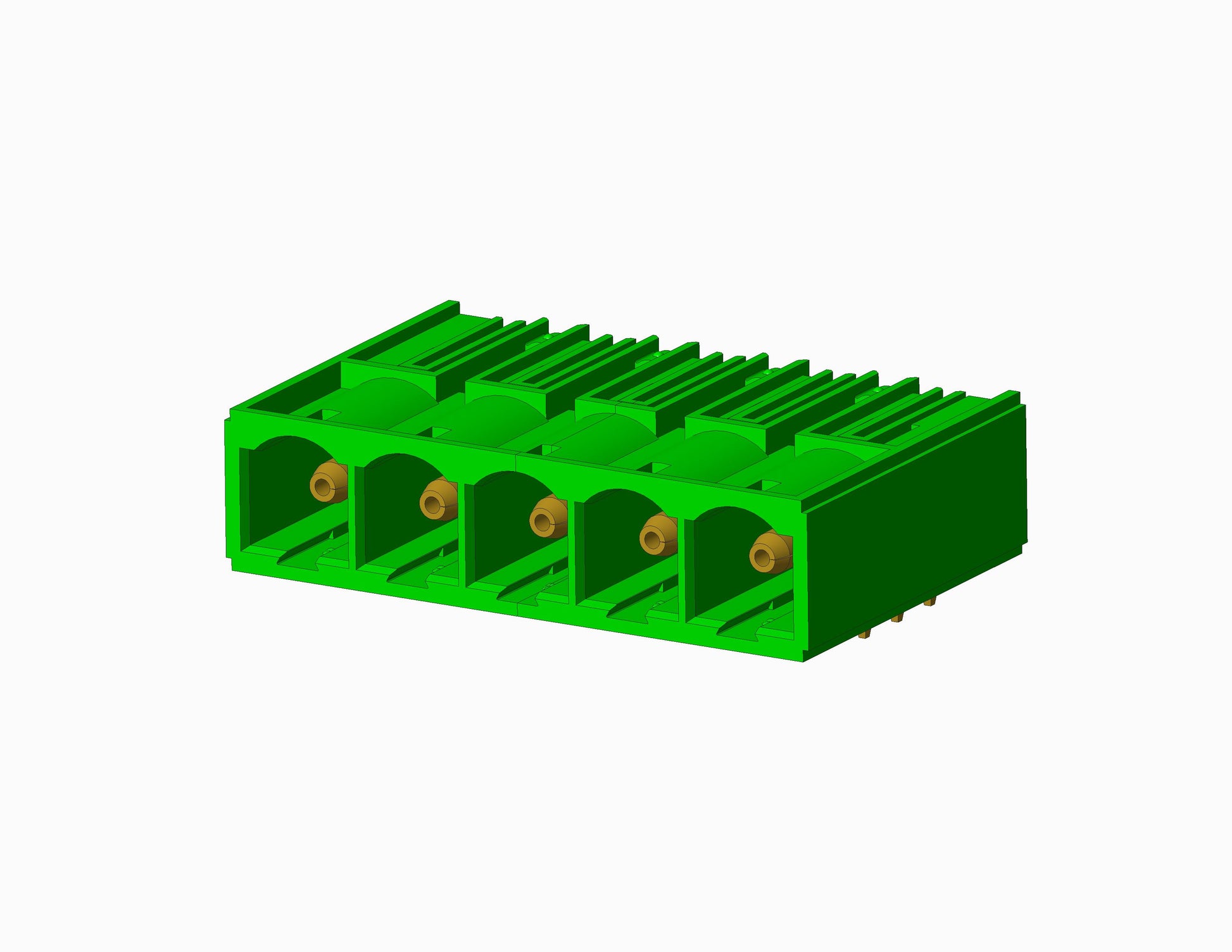

HC1860B Pluggable Headers. It has a centerline spacing of 10.16mm. The voltage rating is 300 VAC. The current rating is 55 Amps. It includes up to 8 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. Feature: Pluggable Header, Horizontal, Closed, Contacts on Down Side.

Maximum number of positions 8

Centerline Spacing 10.16mm Spacing (0.400")

Mechanical

Soldering Temperatures: 260°C, 500°F for 5 seconds Max

Electrical

Voltage Rating: 300 VAC

Current Rating: 55 Amps

Material

Contact Solder Pin Material: Copper, Gold Plated

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Primary Mating Pairs

EB1860-XX-000 Series - Screw Pluggable - Rising Cage (PRS/10.16mm)
