Name: HC1769AM-XX-X00
Brand: ebyelectro
Availability: OutOfStock

Euro Style Headers > Shrouded > Power (6mm-20mm) > HC1769AM-XX-X00

Approvals

1 1

Power

HC1769AM-XX-X00 Series - Shrouded - 7.62mm

Request Sample Request 3D File

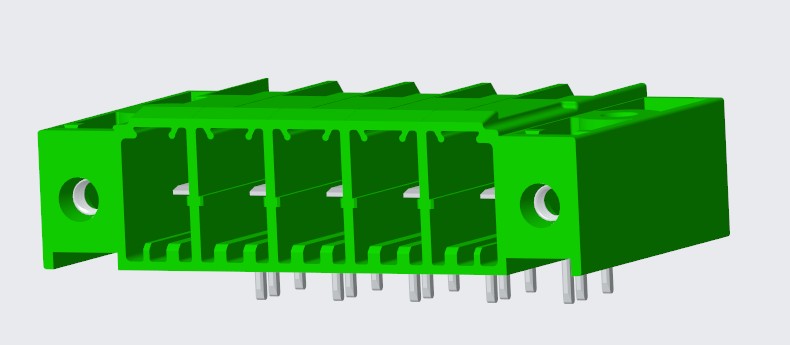

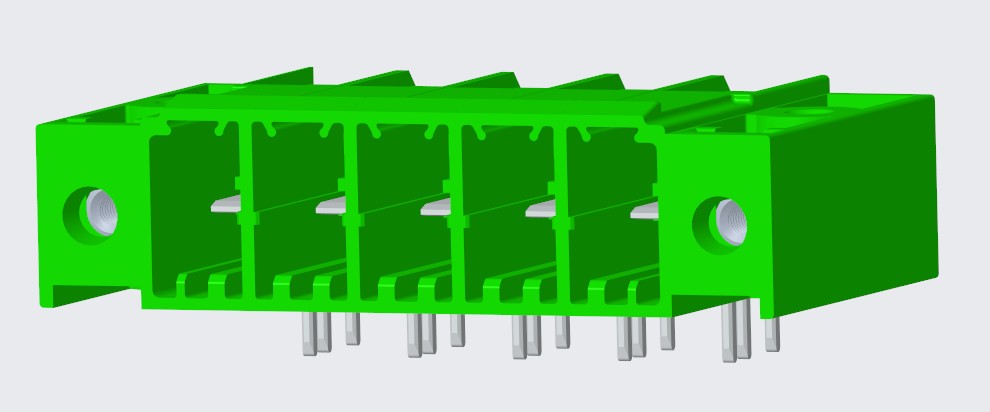

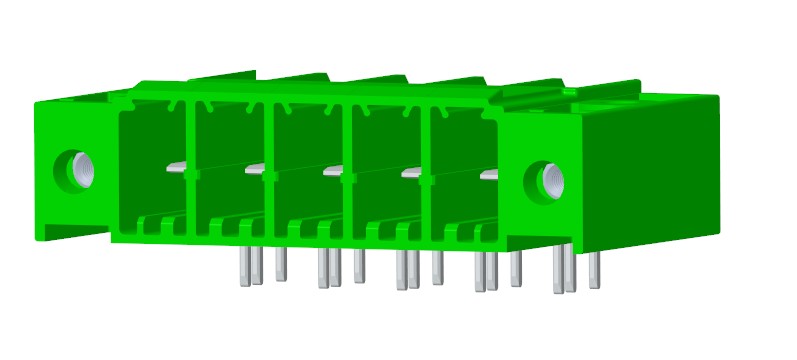

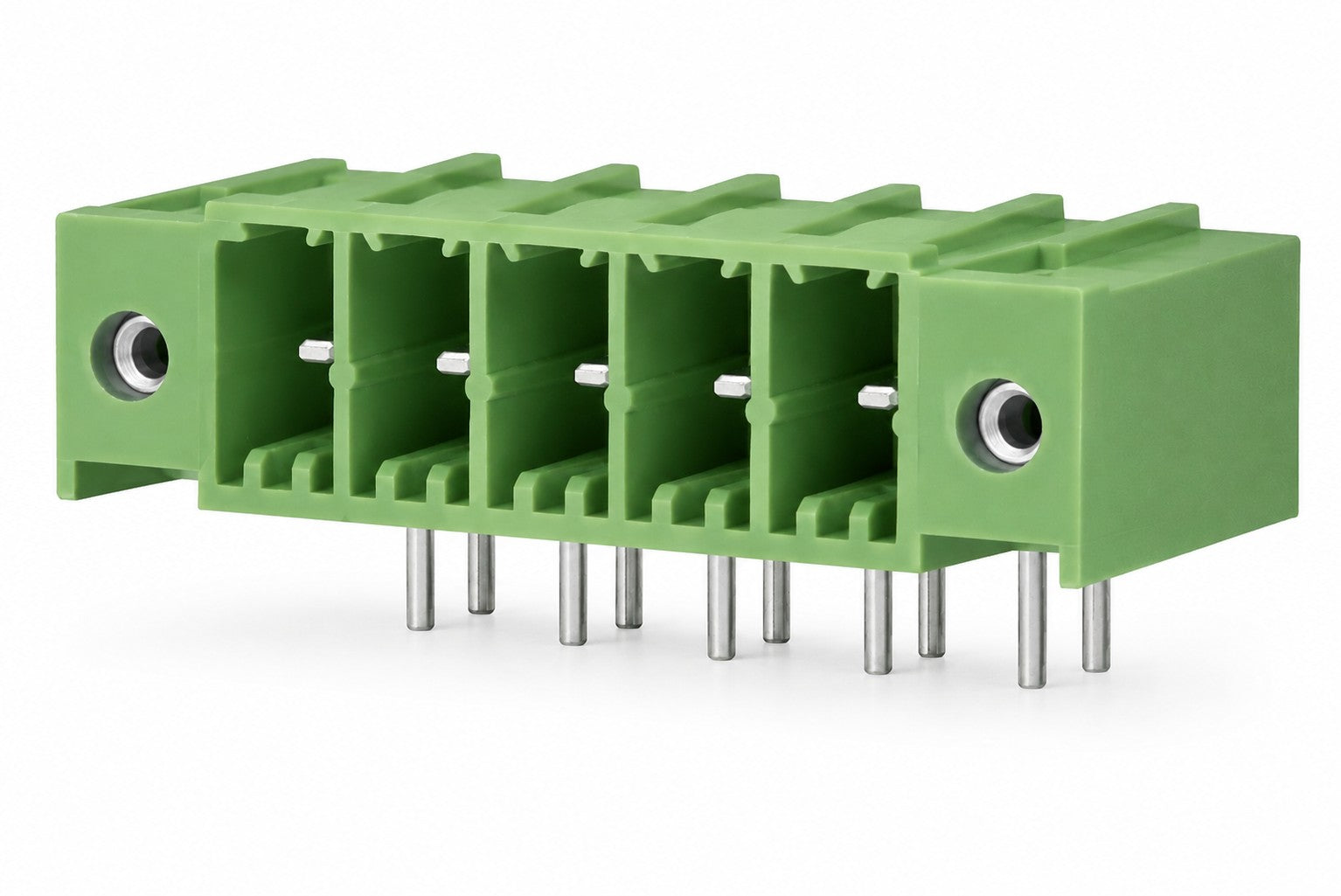

HC1769AM-XX-X00 Pluggable Header with screw flanges. Designed for high-power PCB connections. It has a centerline spacing of 7.62 mm. The voltage rating is 300 VAC. The current rating is 41 Amps. Available in 2-16 positions. The soldering temperature is 260°C (500°F) for 5 seconds maximum. The contact pin solder material is copper, tin-plated. The mounting flange screw is made of steel, zinc plated. The flange screw size is M3.0. The housing is constructed from polyamide, UL 94V-0. Features: Horizontal, Closed

Maximum number of positions 16

Centerline Spacing 7.62mm Spacing (0.300")

Mechanical

Soldering Temperatures: 260° C for 5 sec

Electrical

Voltage Rating: 300 VAC

Current Rating: 41 amps

Material

Insulator Body Material: Polyamide

Contact Solder Pin Material: Copper, tin plated

Mounting Flange Nut: M3.0, Brass

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Request a Sample and 3D file: Product: HC1769AM-XX-X00 Series - Shrouded - (7.62mm)
