Name: HC1381-XX-X10
Brand: ebyelectro
Availability: OutOfStock

Euro Style Headers > Shrouded > Compact (3.5mm-4mm) > HC1381-XX-X10

Approvals

1 1

Compact

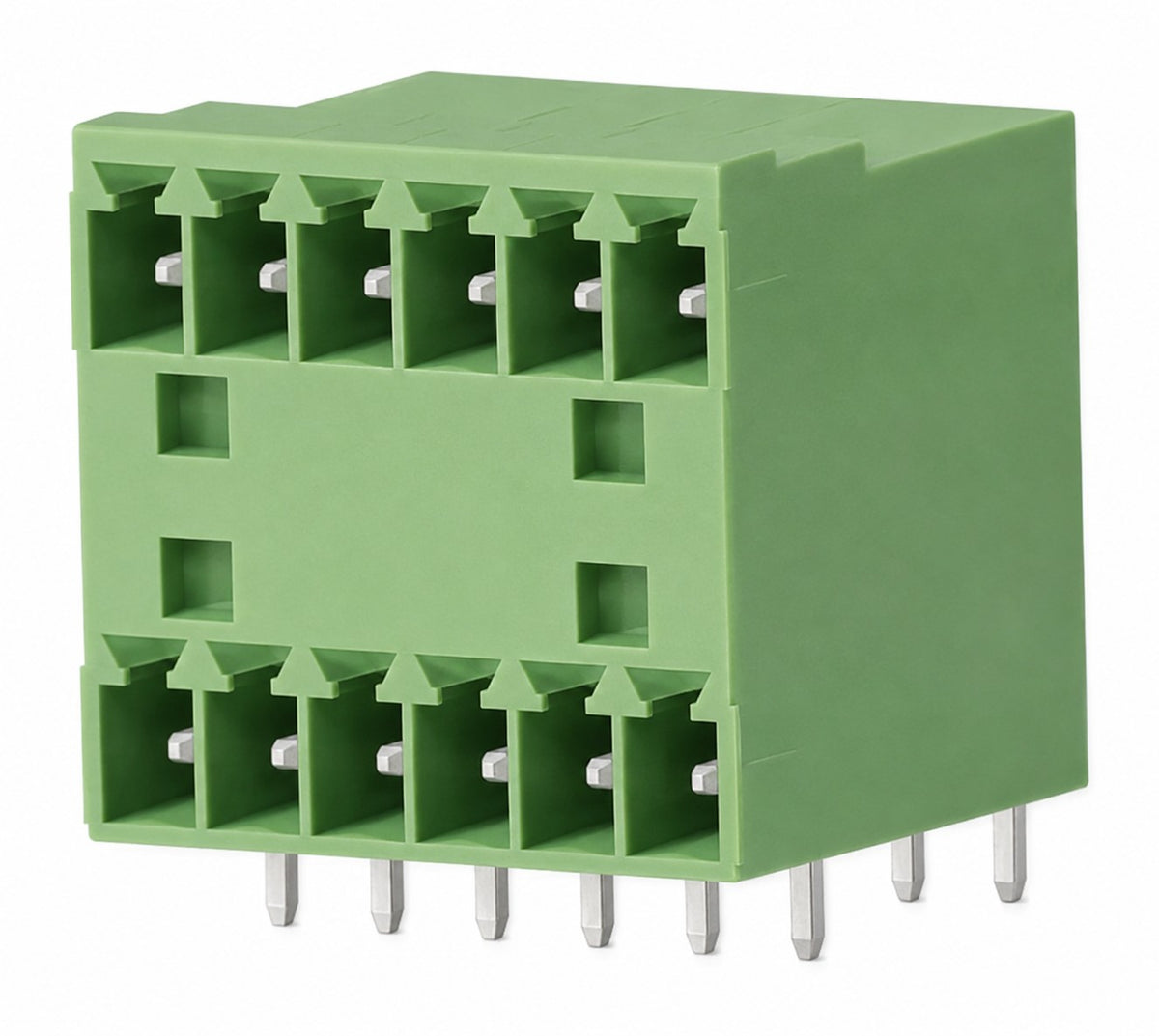

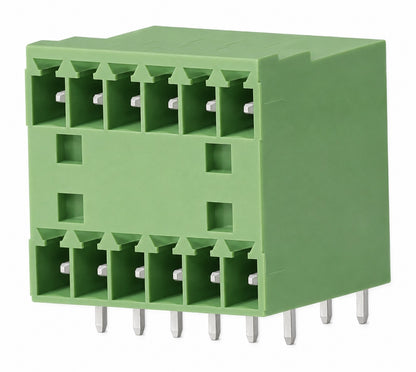

HC1381-XX-X10 Series - Shrouded - 3.81mm

Request Sample Request 3D File

HC1381-XX-X10 Shrouded header with compact design. It has a voltage rating of 300 VAC and a current rating of 10 Amps. The soldering temperature is 260°C (500°F) for 5 seconds maximum. The housing is constructed from polyamide. The contact pin solder material is copper, tin-plated.

Maximum number of positions

Centerline Spacing 3.81mm Spacing (0.150")

Mechanical

Soldering Temperatures: 260° C for 5 sec

Electrical

Voltage Rating: 300 VAC

Current Rating: 10 Amps

Material

Insulator Body Material: Polyamide

Contact Solder Pin Material: Copper, tin plated

Color: Green

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
