Name: HC1351-XX-X0X
Brand: ebyelectro
Availability: InStock

Euro Style Headers > Shrouded > Compact (3.5mm-4mm) > HC1351-XX-X0X

Approvals

1 1

Compact

HC1351-XX-X0X Series - Shrouded - 3.5mm

Request Sample Request 3D File

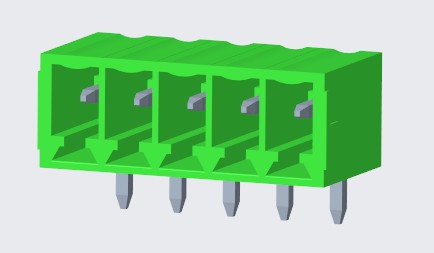

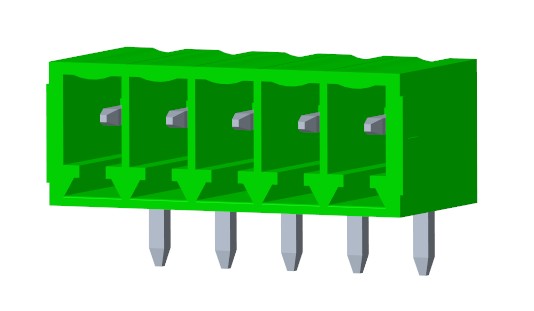

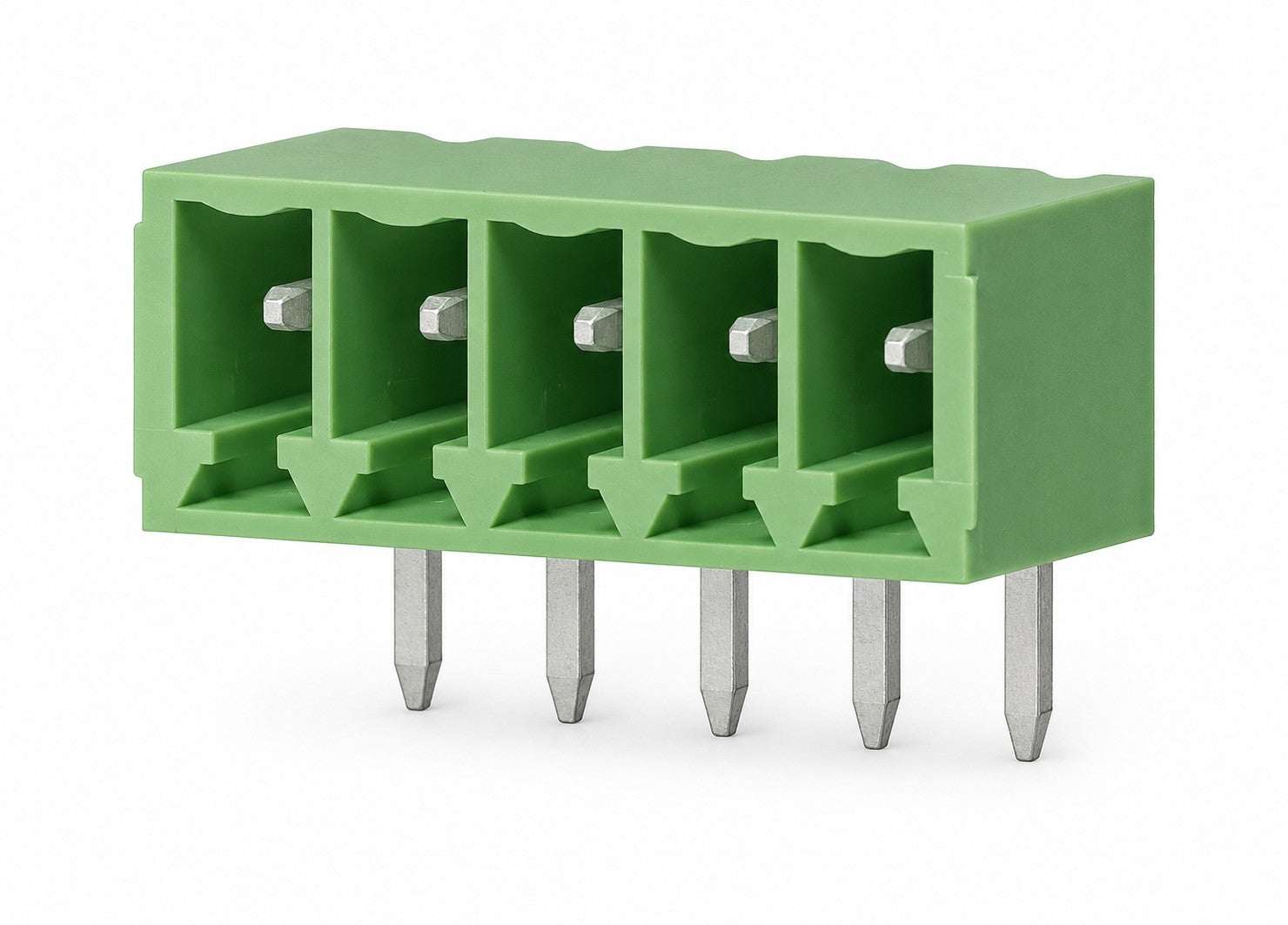

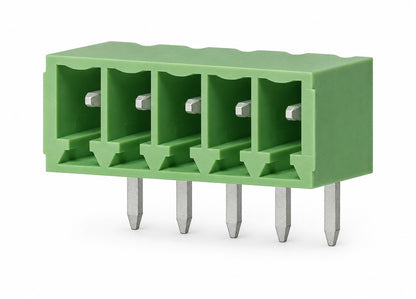

HC1351-XX-X0X Shrouded Header is a shrouded connector with 180-degree reverse mating, designed for reliable PCB connections. It has a centerline spacing of 3.50 mm. The voltage rating is 300 VAC, and the current rating is 10 Amps. It includes up to 24 positions. The soldering temperature is 260°C (500°F) for 5 seconds maximum. The housing is constructed from polyamide, UL 94V-0. The contact pin solder material is copper, tin plated. Features include horizontal orientation and closed design.

Maximum number of positions 24

Centerline Spacing 3.5mm Spacing (0.138")

Mechanical

Soldering Temperatures: 260° C for 5 sec

Electrical

Voltage Rating: 300 VAC

Current Rating: 10 amps

Material

Insulator Body Material: Polyamide

Contact Solder Pin Material: Copper, tin plated

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Primary Mating Pairs
