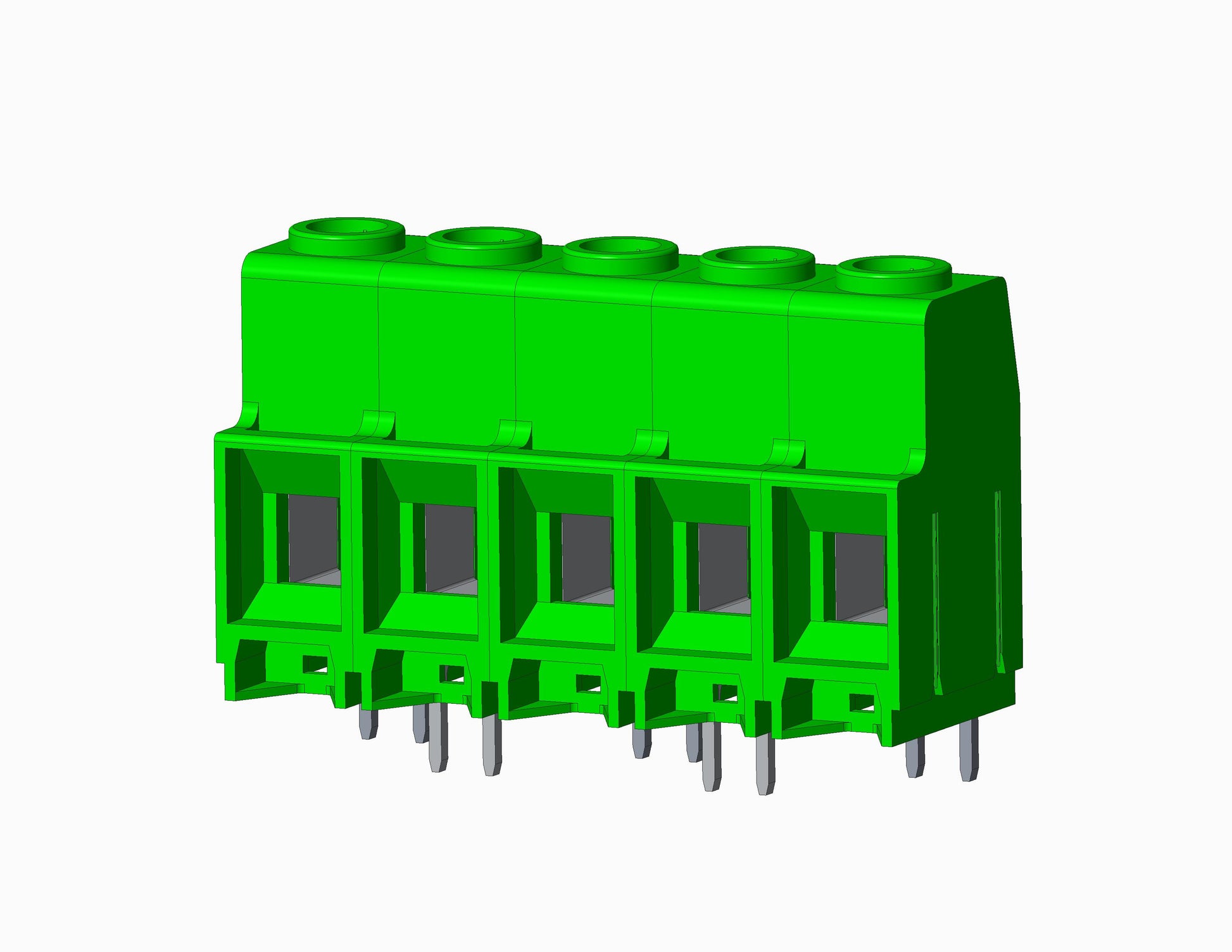

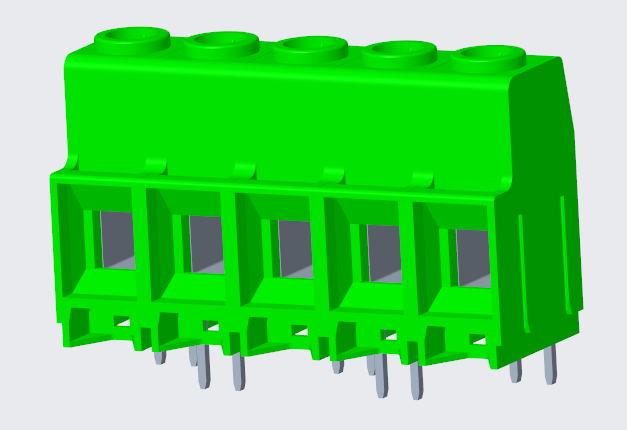

  • EB971 SERIES Rising Cage Blocks dimensional drawing
1 1

Power

EB971 Series - Screw - Direct Solder - Rising Cage - 10.16mm

Request Sample Request 3D File

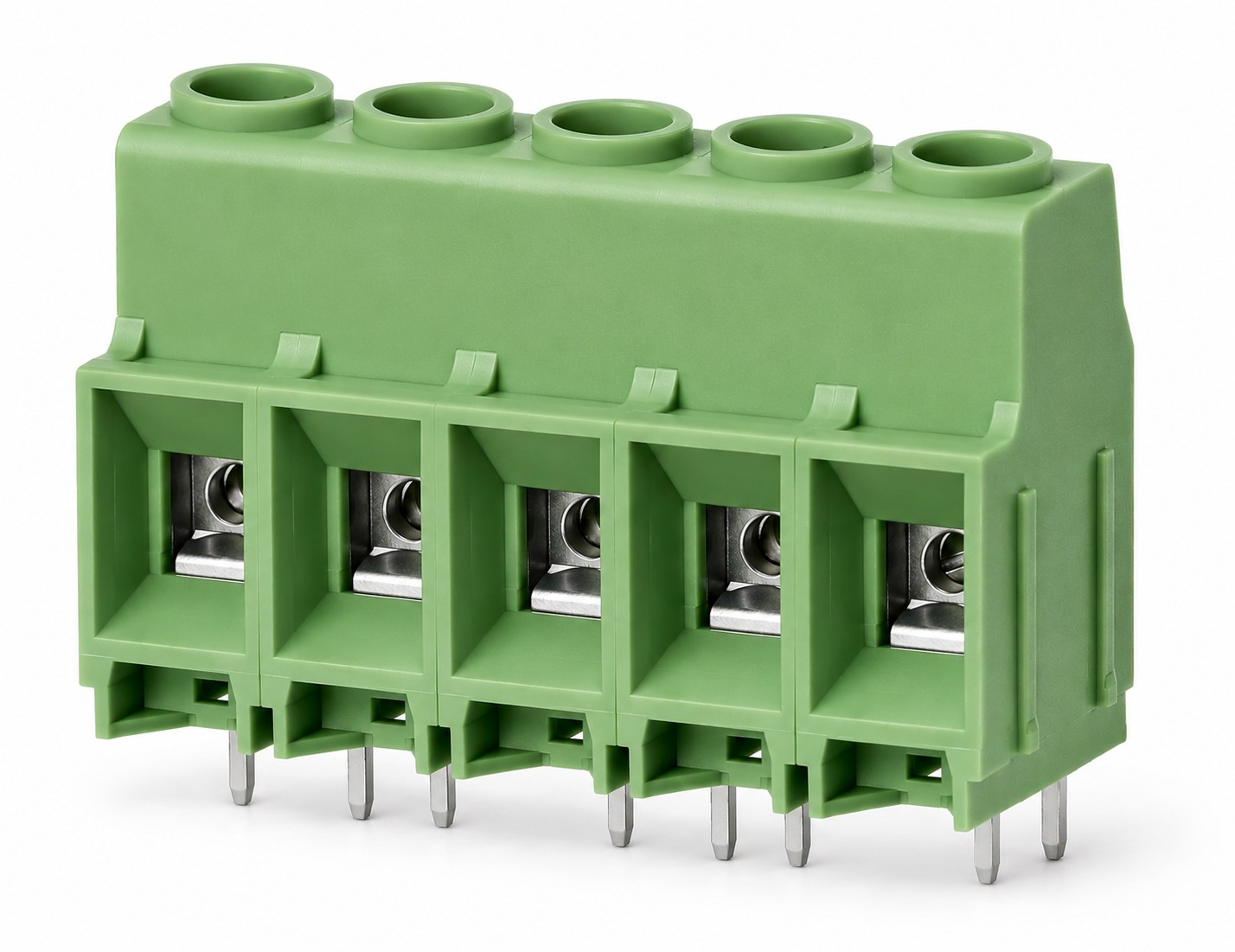

EB971 Rising Cage Pluggable Blocks. It has a centerline spacing of 10.16mm. The voltage rating is 600 VAC. The current rating is 60 Amps. It accommodates wire sizes from 6-20AWG. It includes up to 12 positions. The torque rating is 19.0 lbs-in max. The soldering temperature is 260°C, 500°F for 5 seconds Max. The contact block is made of Brass, Ni Plated. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 12

Centerline Spacing 10.16mm Spacing (0.400")

Electrical

Voltage Rating 600 VAC

Current Rating 60 Amps

Wire Range Min / Max 6-20AWG

Mechanical

Torque 19.0 lbs-in. Max.

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material Polyamide, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size Please See PDF

Terminal Screw Material

Contact Block Material Brass, Ni Plated

Contact Solder Pin Material Brass, Tin Plated

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color

Cover

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
