EB936 Series - Screw - Direct Solder - Wire Protector - 5.0mm

Request Sample Request 3D File

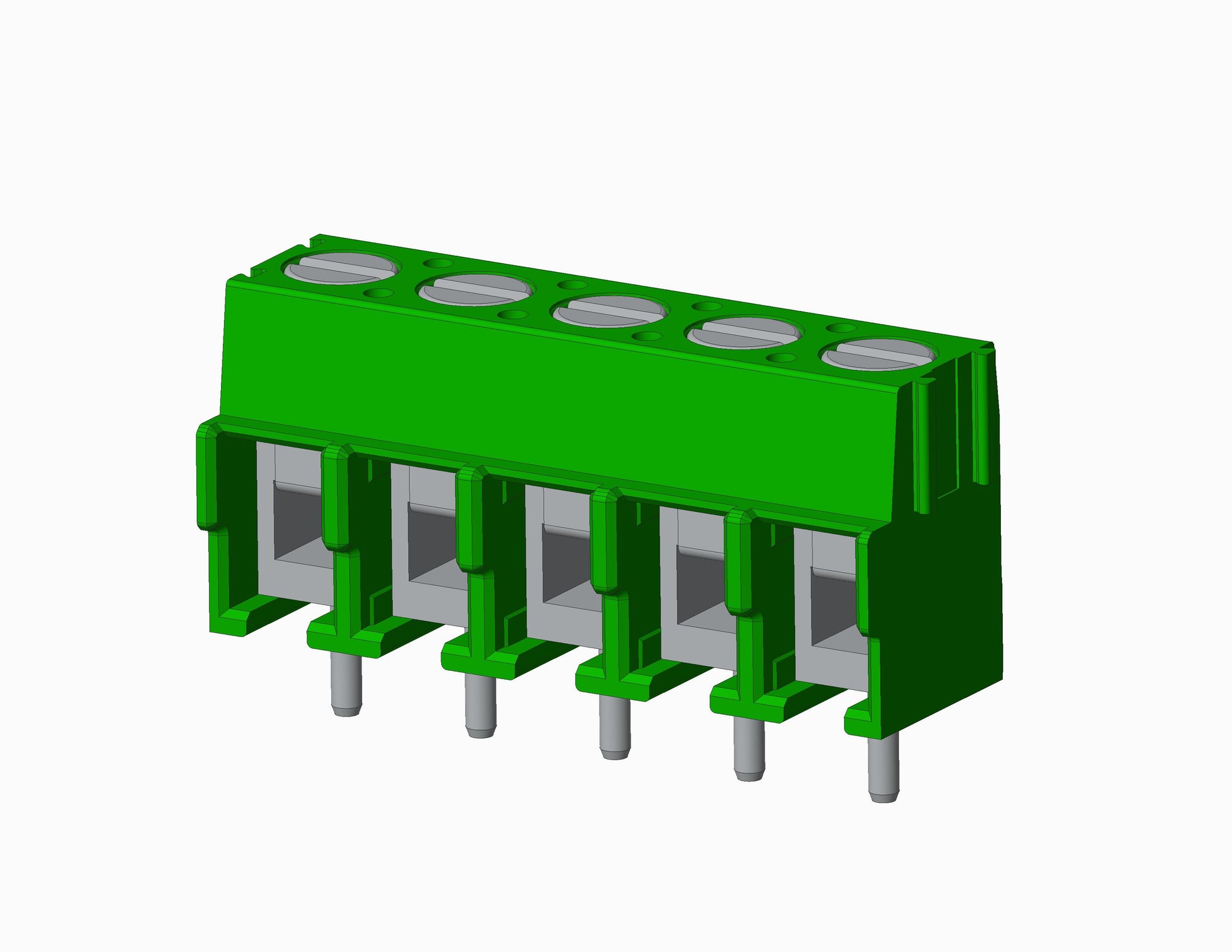

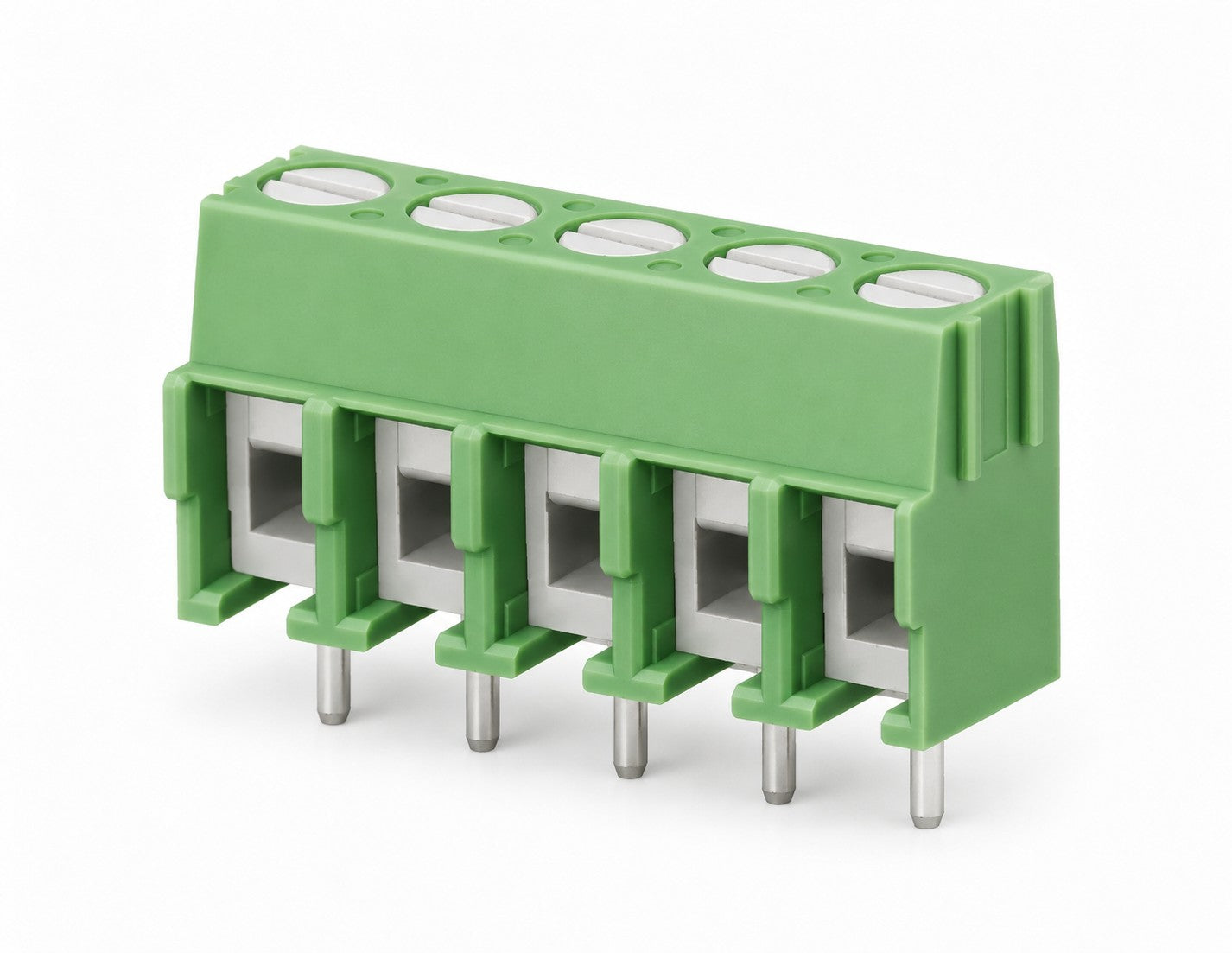

EB936 Wire Guard Pluggable Blocks. It has a centerline spacing of 5.0mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It accommodates wire sizes from 12-26AWG. It includes up to 24 positions. The torque rating is 3.5 lbs-in max. The soldering temperature is 260°C, 500°F for 5 seconds Max. It features a terminal screw made of Steel, Zinc Plated, "-" Slotted. The housing is constructed from PA66, UL94V-0. Feature: Vertical, Square Wire Entry.

Maximum number of positions 24

Centerline Spacing 5.00mm Spacing (0.197")

Electrical

Voltage Rating 300 VAC

Current Rating 10 Amps

Wire Range Min / Max 12-26AWG

Mechanical

Torque 3.5 lbs-in. Max.

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material PA66, UL94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size M2.6

Terminal Screw Material Steel, Zinc Plated, "-" Slotted

Contact Block Material

Contact Solder Pin Material Brass, Tin Plated

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color

Cover

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Request a Sample and 3D file: Product: EB936 Series - Screw - Direct Solder - Wire Protector (5.0mm)

Yes/No
Yes
No
Yes/No
Yes
No
Color Option
No Preference
Green
Black
Blue
Other
