EB769 Series - Screw - Direct Solder - Rising Cage - 6.35mm

Request Sample Request 3D File

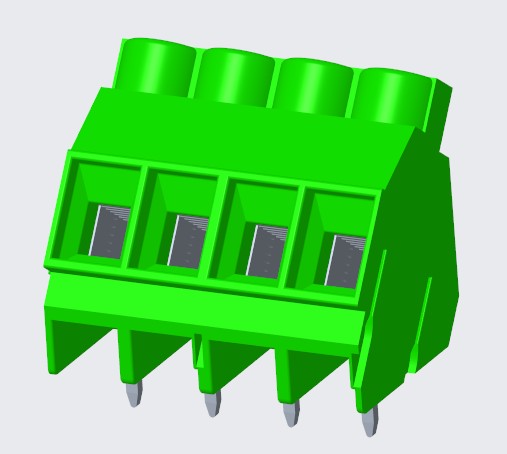

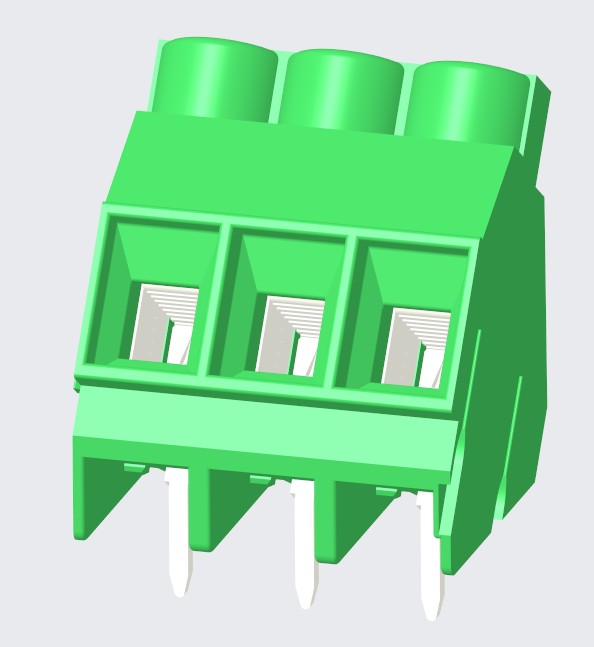

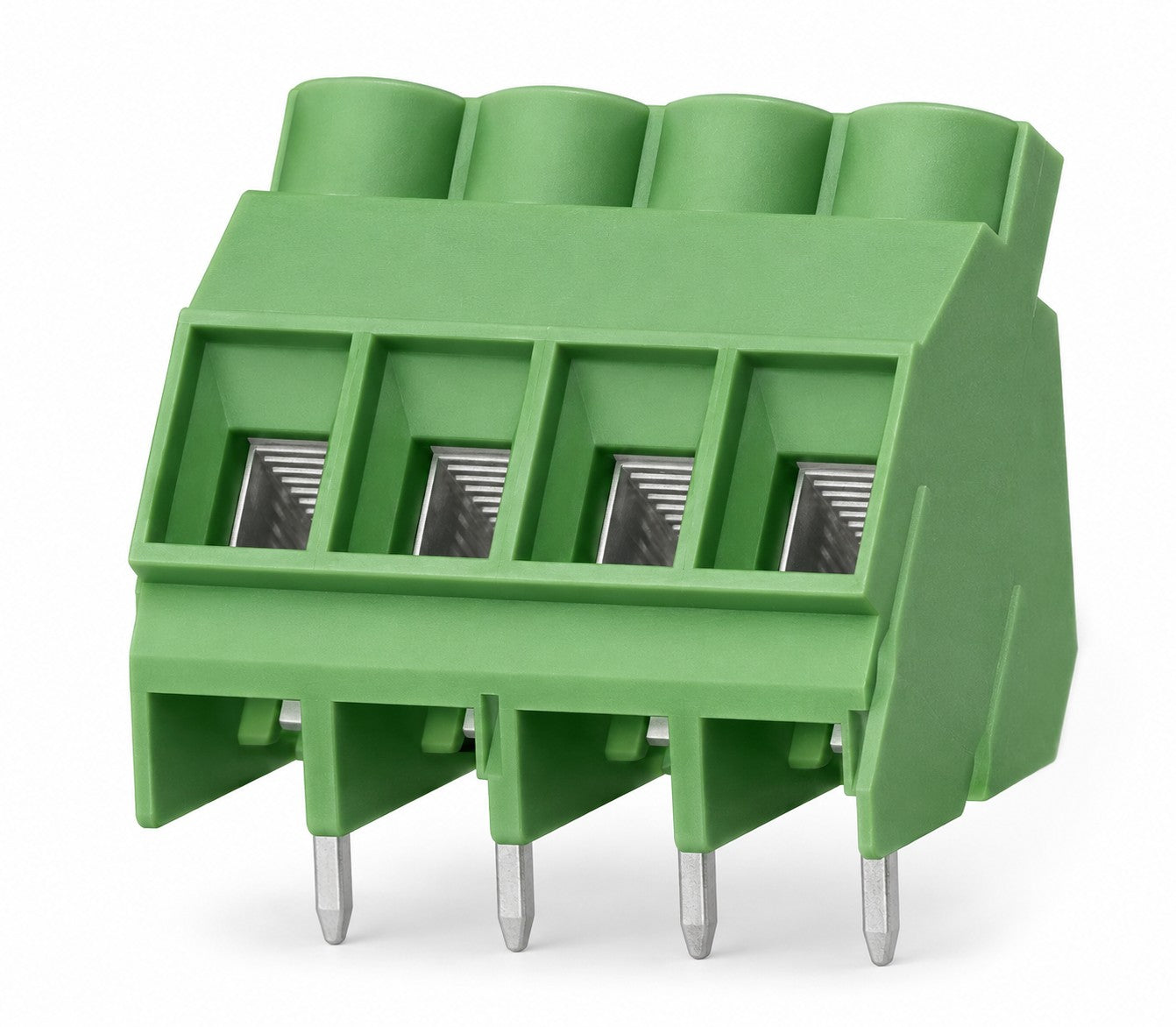

EB769 Rising Cage Direct Solder Block. It features a 45-degree wire entry and is designed for high-power PCB connections. It has a centerline spacing of 6.35 mm. The voltage rating is 300 VAC. The current rating is 30 Amps. It accommodates wire sizes from 10–24 AWG. Available in 2-16 positions. The terminal screw size is M3.5 and is made of steel, zinc-plated. The torque rating is 8.9 lbs-in maximum. The contact block is made of brass, Ni-plated. The contact solder pin material is copper, tin plated. The soldering temperature is 260°C for 5 seconds. The insulator body is made of polyamide.

Maximum number of positions 16

Centerline Spacing 6.35mm Spacing (.250")

Mechanical

Torque: 8.9lbs-in

Soldering Temperatures: 260° C for 5 sec

Electrical

Voltage Rating: 300 VAC

Current Rating: 30

Wire Range Min / Max: 10-24AWG

Material

Insulator Body Material: Polyamide

Terminal Screw Size: M3.5

Terminal Screw Material: Steel, Zinc Plated

Contact Block Material: Brass, Ni Plated

Contact Solder Pin Material: Copper, Tin Plated

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
