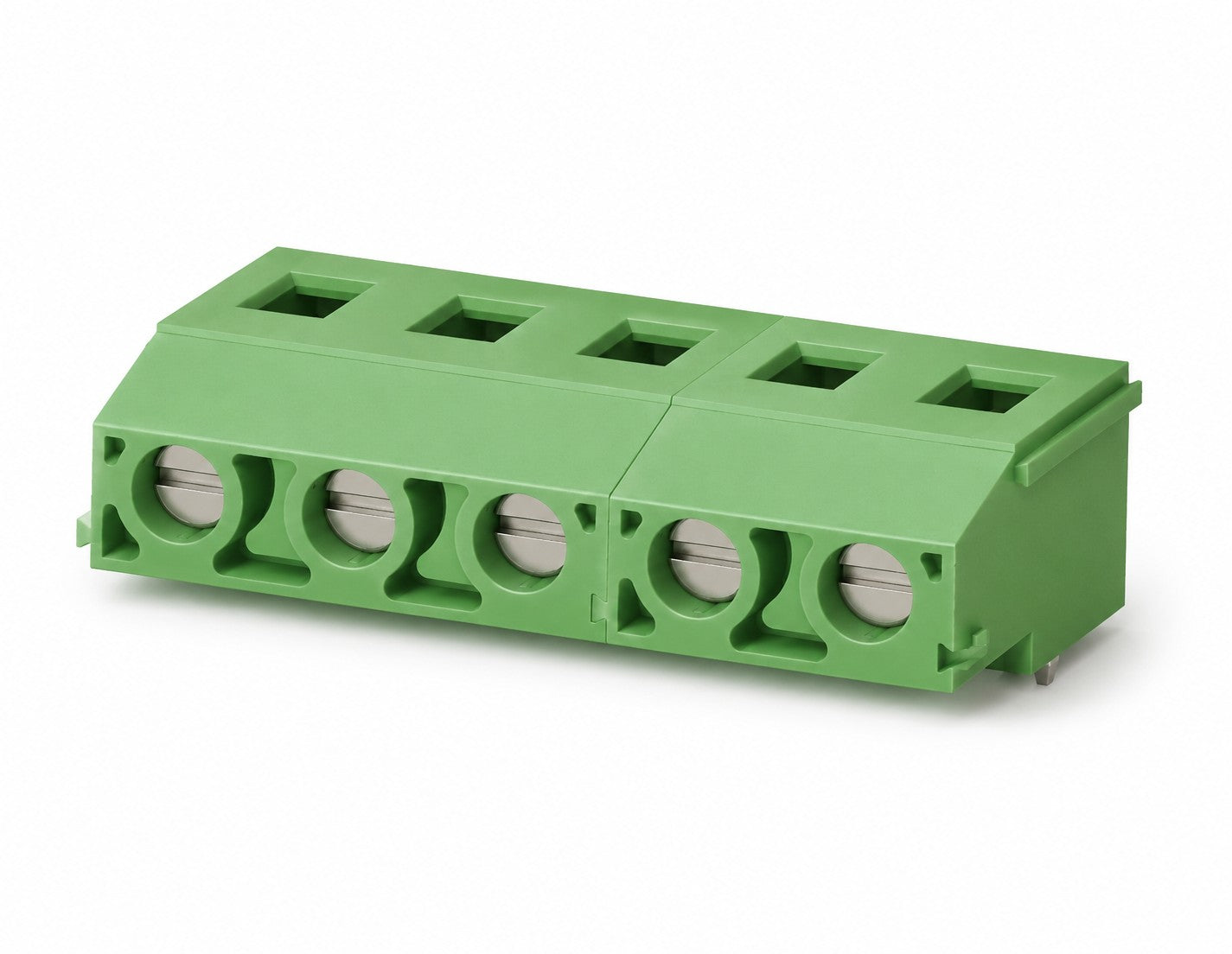

  • EB715 SERIES Rising Clamp Blocks

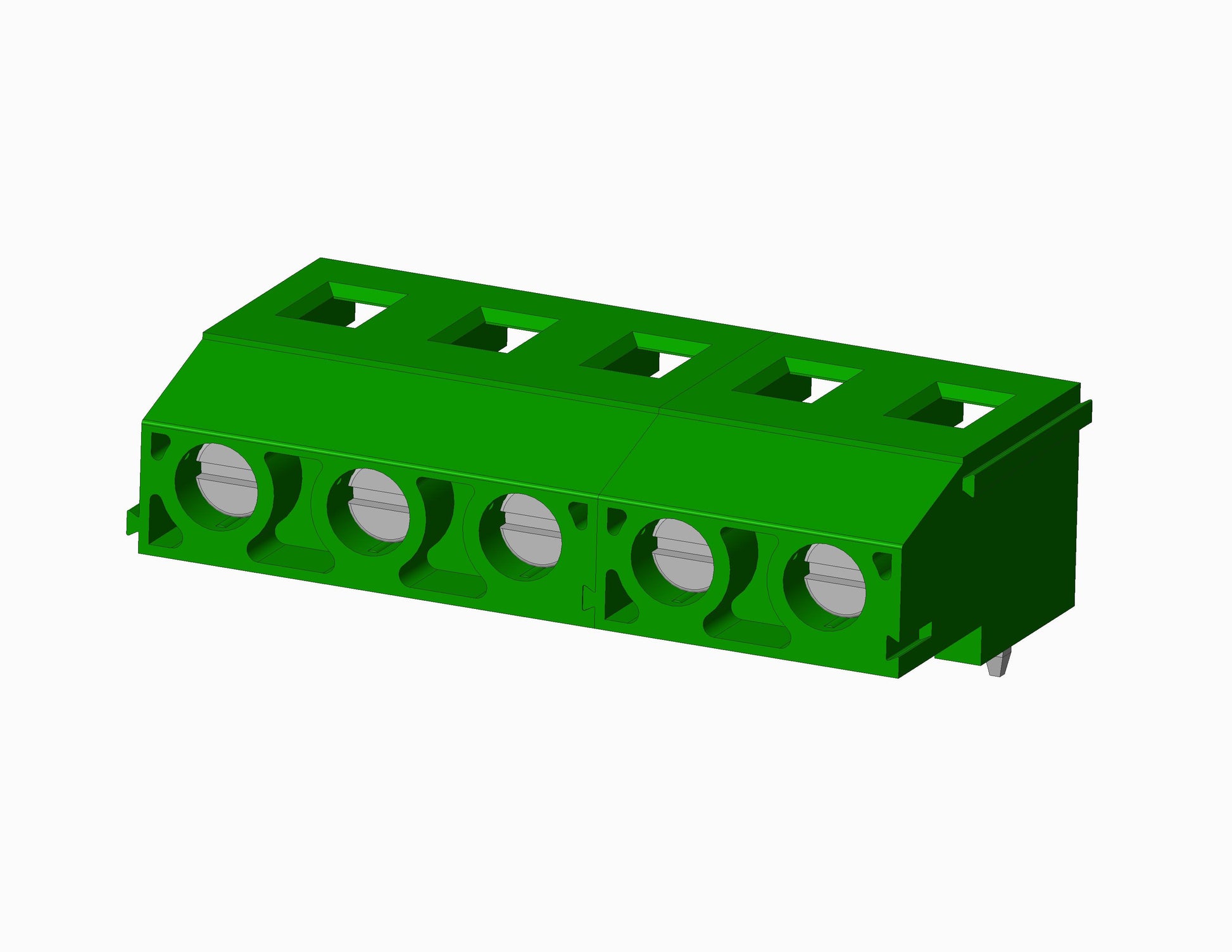

  • EB715 SERIES Rising Cage Blocks dimensional drawing
1 1

Power

EB715 Series - Screw - Direct Solder - Rising Cage - 7.5mm

Request Sample Request 3D File

EB715 Rising Cage Pluggable Blocks. It has a centerline spacing of 7.5mm. The voltage rating is 300 VAC. The current rating is 20 Amps. It accommodates wire sizes from 12-30AWG. It includes up to 16 positions. The contact block is made of Brass, Tin Plated. It features a terminal screw made of Steel, Zinc Plated, "-" Slotted. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 16

Centerline Spacing 7.50mm Spacing (0.295")

Electrical

Voltage Rating 300 VAC

Current Rating 20 Amps

Wire Range Min / Max 12-30AWG

Mechanical

Torque

Soldering Temperatures

Insulator Body Material: Polyamide, UL 94V-0

Terminal Screw Size: M3.0

Terminal Screw Material: Steel, Zinc Plated, "-" Slotted

Contact Block Material: Brass, Tin Plated

Contact Solder Pin Material: Brass, Tin Plated

Color: Green

Product Notes

EBY's Cage Clamp, direct solder, mini-blocks are the ideal choice for high reliability applications or those that require frequent insertion and withdrawals of the wiring harness. • Available in modular and molded to size constructions. • Standard molding materials to all UL94V-O flammability class. • High temperature materials for re-flow applications available. • Custom marking, screws and pin length readily available.
