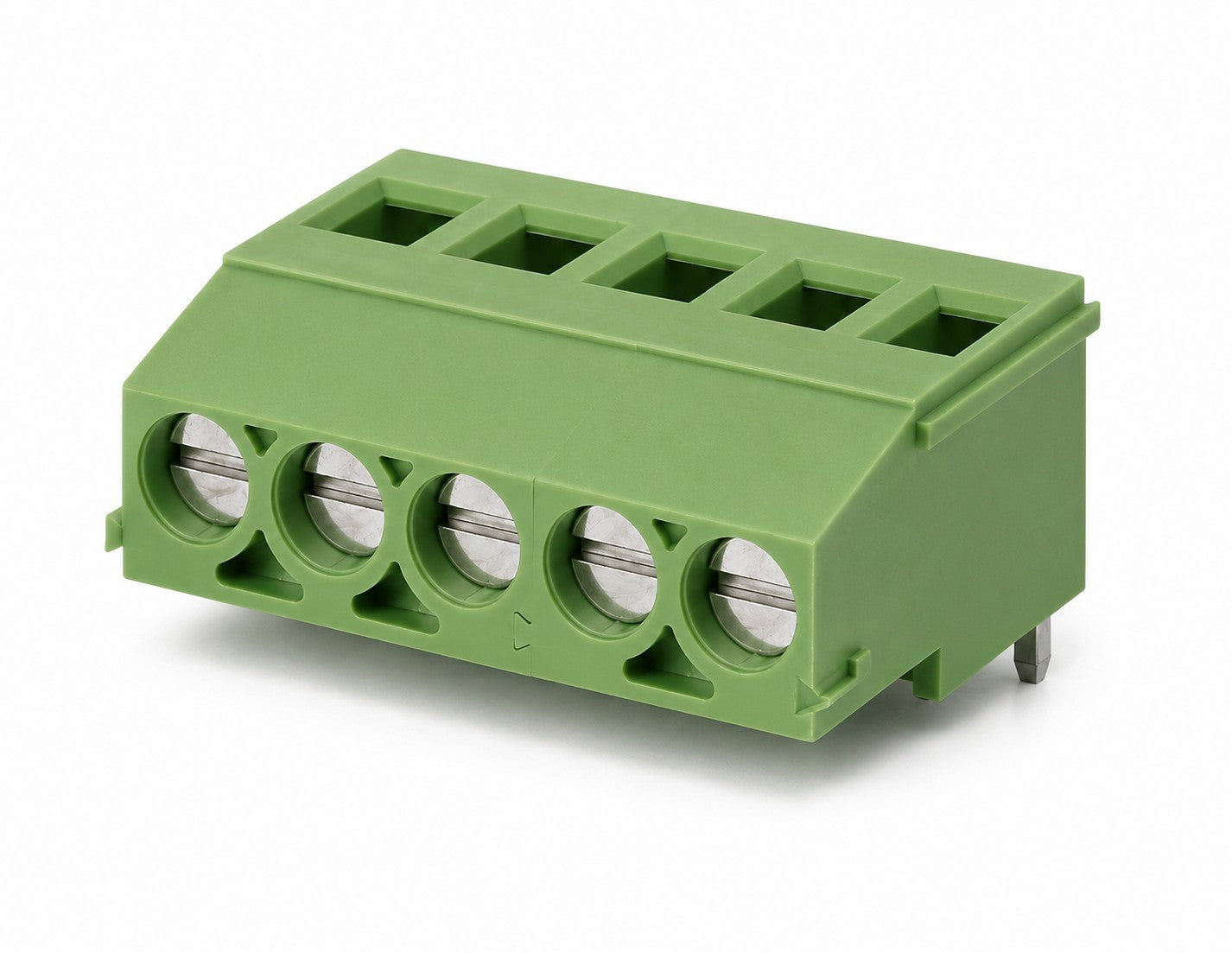

  • EB706 SERIES Rising Clamp Blocks

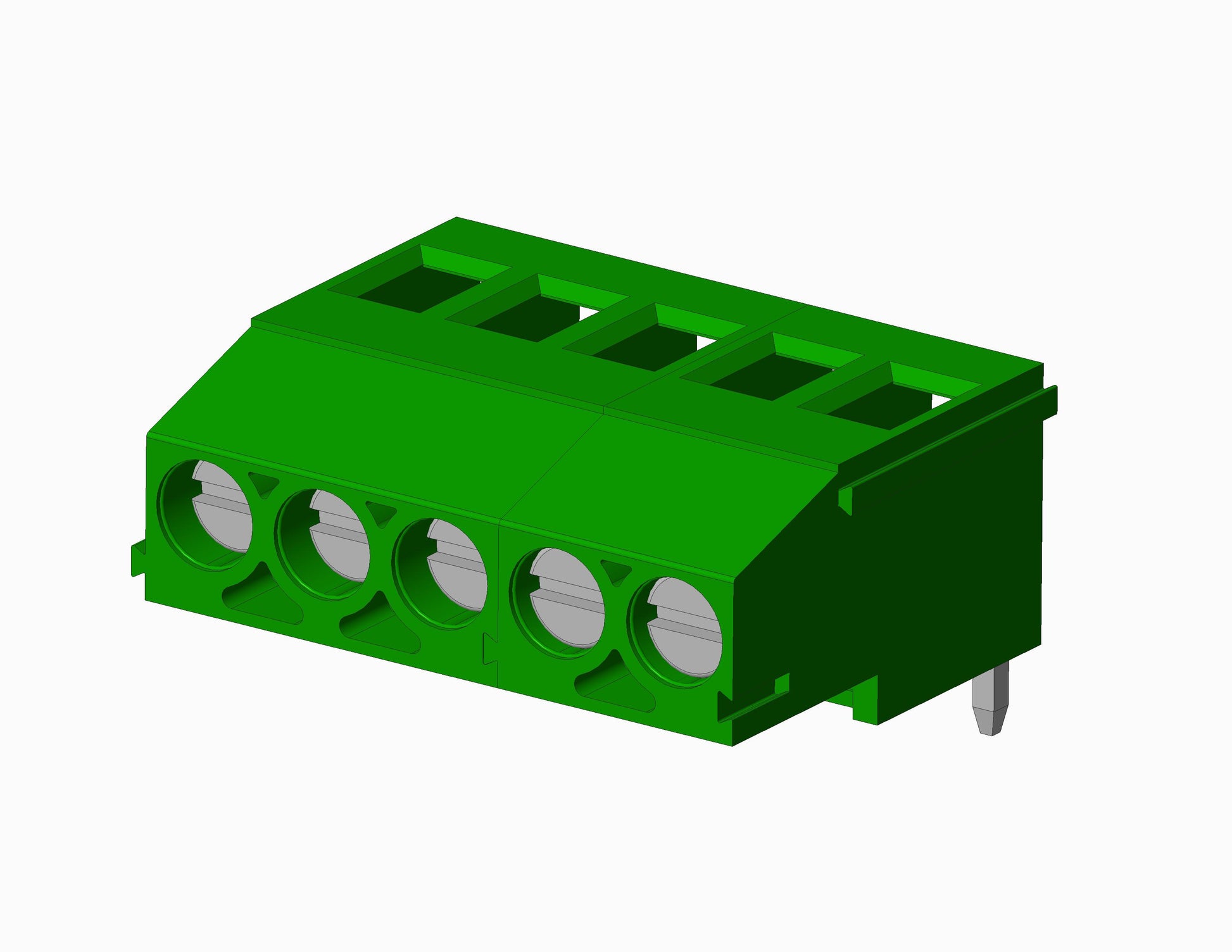

  • EB706 SERIES Rising Cage Blocks dimensional drawing
1 1

Standard

EB706 Series - Screw - Direct Solder - Rising Cage - 5.0mm

Request Sample Request 3D File

EB706 Rising Cage Pluggable Blocks. It has a centerline spacing of 5.0mm. The voltage rating is 300 VAC. The current rating is 20 Amps. It accommodates wire sizes from 12-30AWG. It includes up to 24 positions. The torque rating is 5.0 lbs-in. Max. The soldering temperature is 260°C, 500°F for 5 seconds Max. The contact block is made of Brass, Ni Plated. It features a terminal screw made of Steel, Zinc Plated, "-" Slotted. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 24

Centerline Spacing 5.00mm Spacing (0.197")

Electrical

Voltage Rating 300 VAC

Current Rating 20 Amps

Wire Range Min / Max 12-30AWG

Mechanical

Torque 5.0 lbs-in. Max

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Insulator Body Material: Polyamide, UL 94V-0

Terminal Screw Size: M3.0

Terminal Screw Material: Steel, Zinc Plated, "-" Slotted

Contact Block Material: Brass, Ni Plated

Contact Solder Pin Material: Brass, Tin Plated

Product Notes

NOTE: Does not have bottom cover
