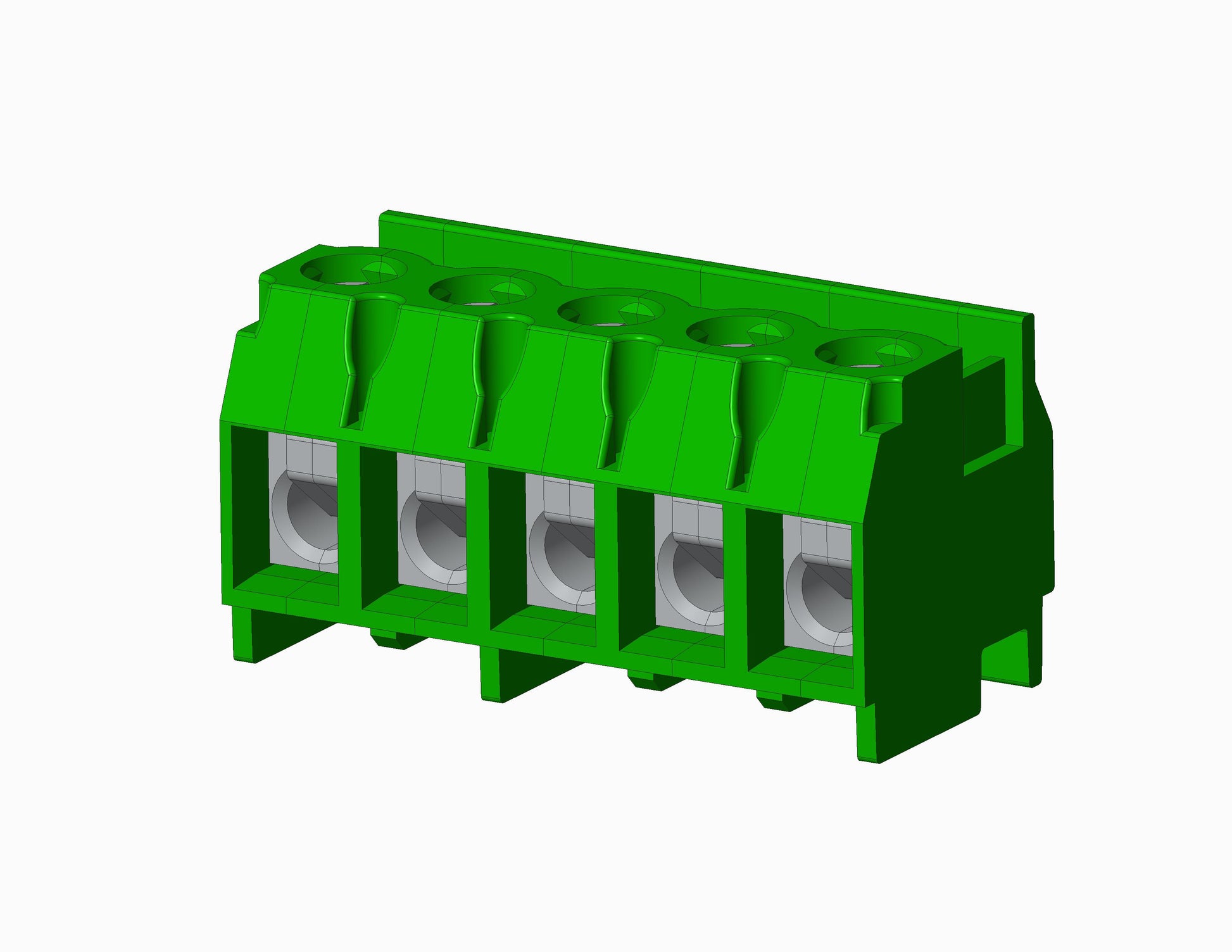

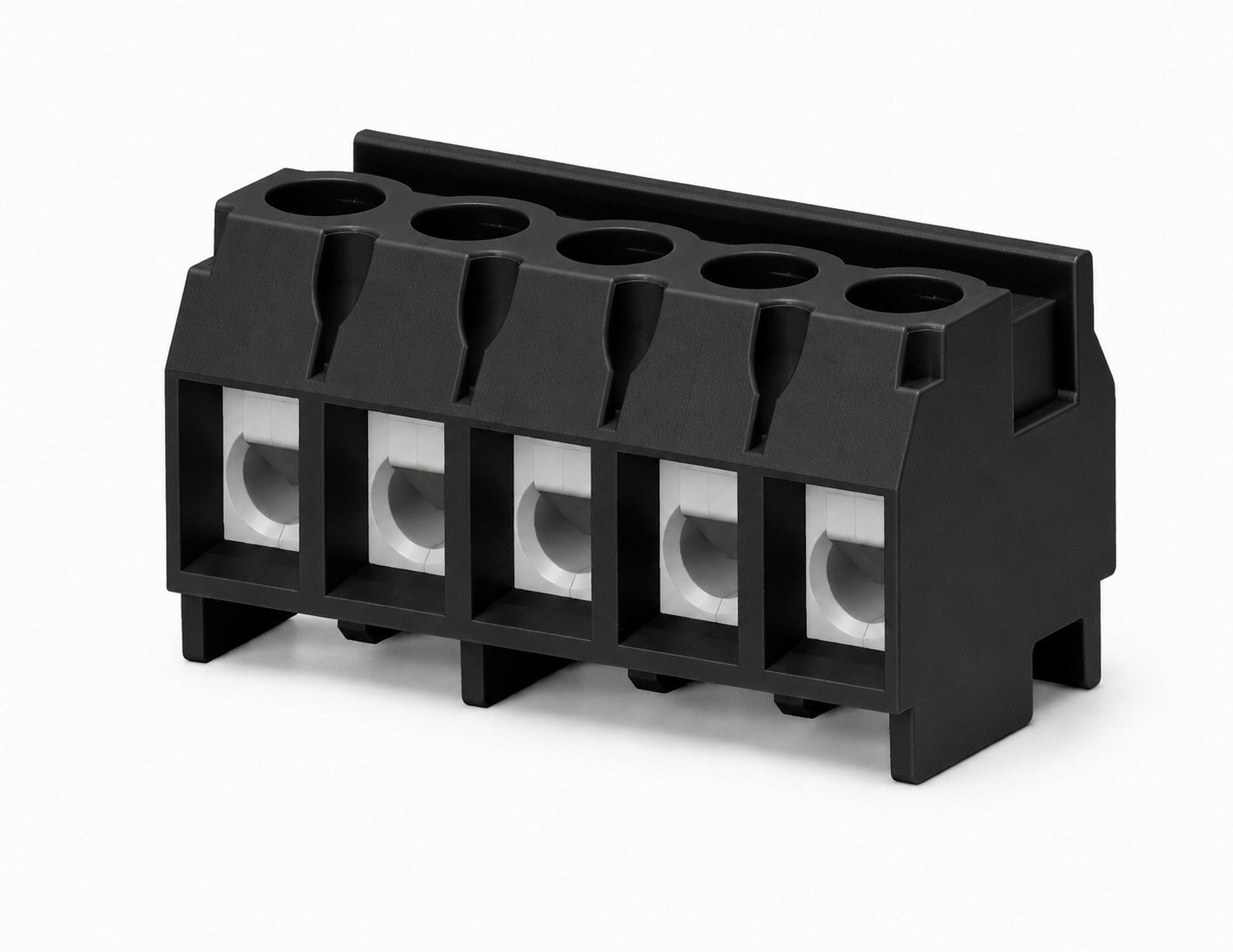

Name: EB565A SERIES Pluggable Blocks
Brand: ebyelectro
Availability: InStock

Euro Style Terminal Blocks > Screw > Pluggable > Wire Protector > Standard (5mm-5.08mm) > EB565A

Approvals

1 1

Standard

EB565A Series - Screw - Pluggable - Wire Protector - 5.0mm

Request Sample Request 3D File

EB565A Pluggable Block. It has a centerline spacing of 5.0mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It accommodates wire sizes from 14-26AWG. It includes up to 24 positions. The torque rating is 3.5 lbs-in max. The contact block is made of Brass (CuZn), Ni Plated. It features a terminal screw made of Steel, Zinc Plated, "-" Slotted. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 24

Centerline Spacing 5.00mm Spacing (0.197")

Electrical

Voltage Rating 300 VAC

Current Rating 10 Amps

Wire Range Min / Max 14-26AWG

Mechanical

Torque 3.5 lbs-in. Max.

Soldering Temperatures

Material

Insulator Body Material: Polyamide, UL 94V-0

Terminal Screw Size: M2.6

Terminal Screw Material: Steel, Zinc Plated, "-" Slotted

Contact Block Material: Brass (CuZn), Ni Plated

Wire Guard Material: PhBz, (CuSn), Tin Plated

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
