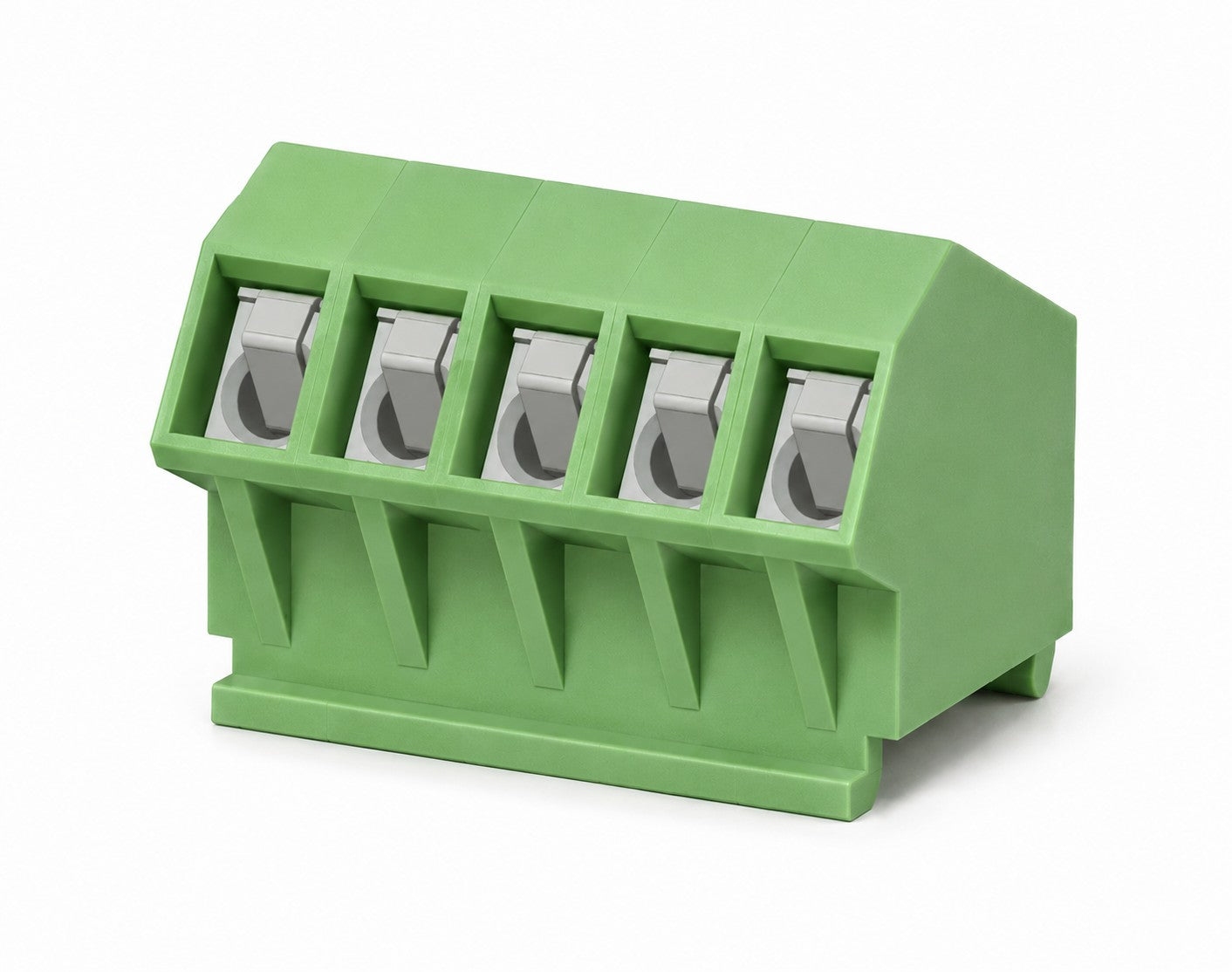

  • EB551 SERIES Pluggable Blocks

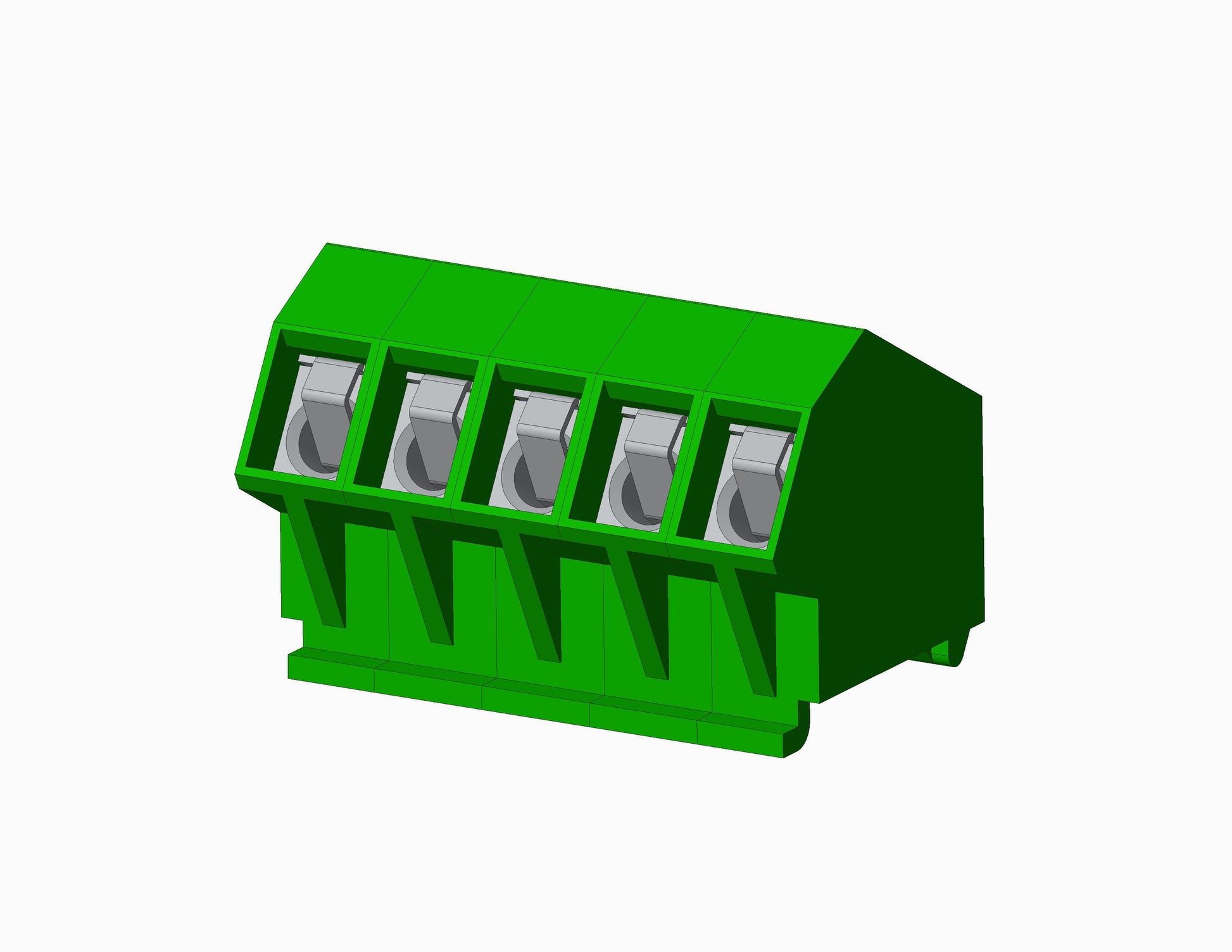

  • EB551 SERIES Pluggable Blocks dimensional drawing
1 1

Standard

EB551 Series - Screw - Pluggable - Wire Protector - 5.0mm

Request Sample Request 3D File

EB551 Pluggable Block. It has a centerline spacing of 5.0mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It accommodates wire sizes from 14-26AWG. It includes up to 24 positions. The torque rating is 3.5 lbs-in max. The soldering temperature is 260°C, 500°F for 5 seconds Max. The contact block is made of Brass, Ni Plated. It features a terminal screw made of Steel, Zinc Plated, Straight Slot. The housing is constructed from Polyamide, UL 94V-0. Feature: Chassis Mount.

Maximum number of positions 24

Centerline Spacing 5.00mm Spacing (0.197")

Electrical

Voltage Rating 300 VAC

Current Rating 10 Amps

Wire Range Min / Max 14-26AWG

Mechanical

Torque 3.5 lbs-in. Max.

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material Polyamide, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size M3.0

Terminal Screw Material Steel, Zinc Plated, Straight Slot

Contact Block Material Brass, Ni Plated

Contact Solder Pin Material

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material PhBz, Tin Plated

Color Please See PDF
