Euro Style Terminal Blocks >  Spring > Pluggable > Push-Button > Compact (3.5mm-4.57mm) > EB5350M
Approvals
cRU US logo cRU US logo

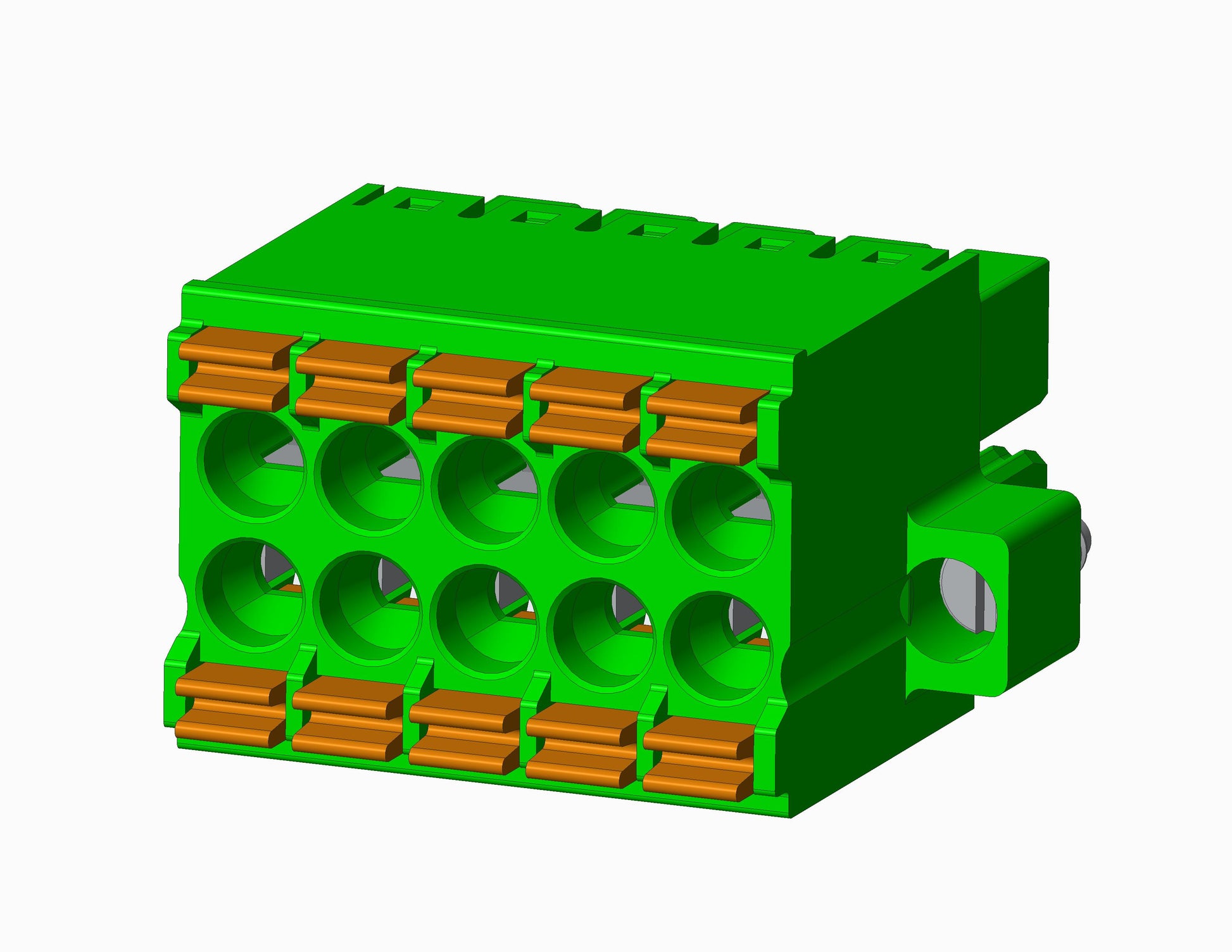

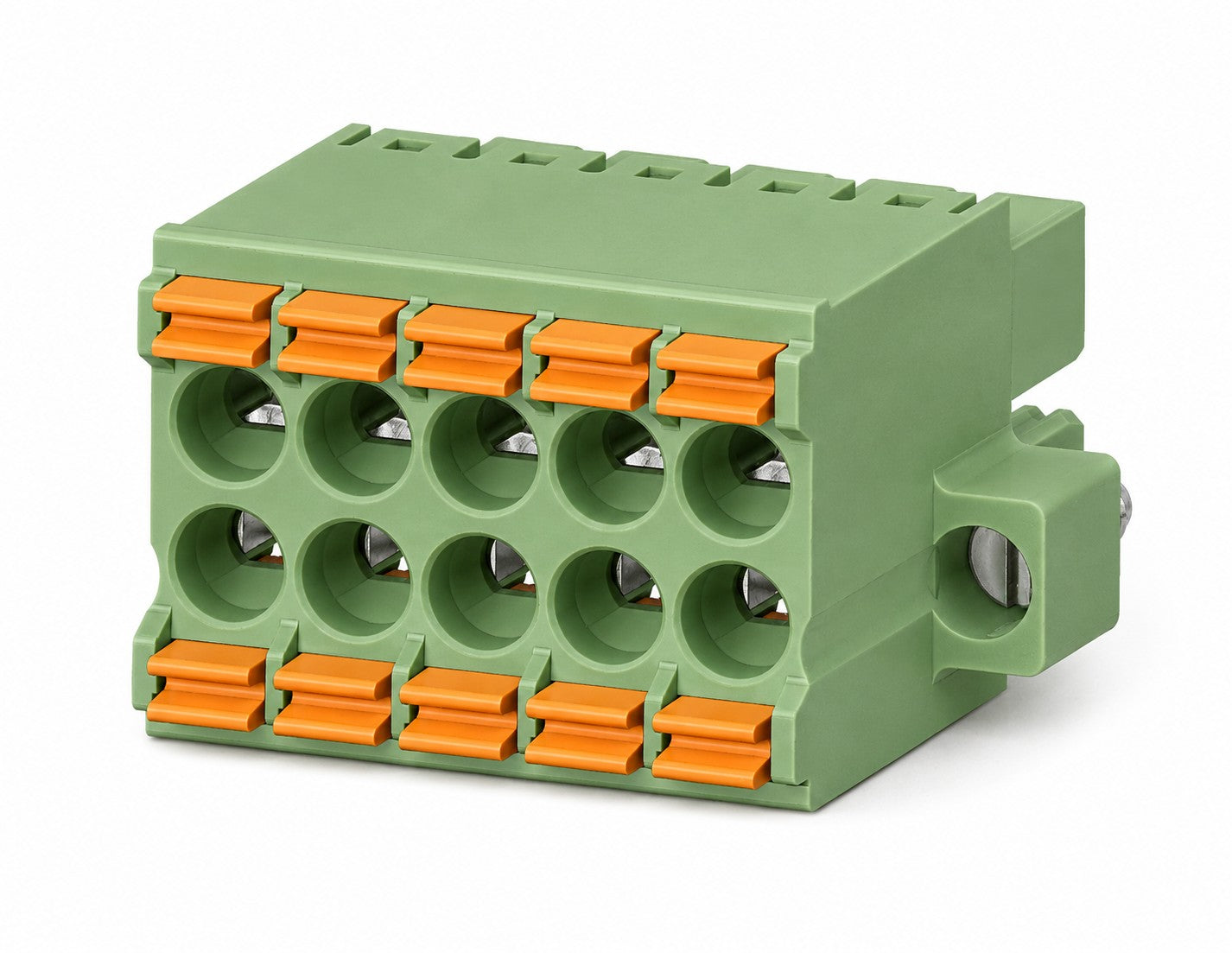

  • EB5350M SERIES Screwless Pluggable Blocks
  • EB5350M SERIES Push-Button Pluggable Blocks dimensional drawing
1 1

Compact

EB5350M Series - Spring - Pluggable - Push-Button - 3.5mm

Request Sample Request 3D File

EB5350M Push-Button Pluggable Block. It has a centerline spacing of 3.5mm. The voltage rating is 150 VAC. The current rating is 5.5 Amps. It accommodates wire sizes from 16-24AWG. It includes up to 48 positions. The housing is constructed from Thermoplastic, UL 94V-0. Feature: 2-Finger Contact Clip.

Maximum number of positions 48

Centerline Spacing 3.50mm Spacing (0.138")

Electrical

Voltage Rating 150 VAC

Current Rating 5.5 Amps

Wire Range Min / Max 16-24AWG

Mechanical

Torque YES

Soldering Temperatures YES

Insulator Body Material: Thermoplastic, UL 94V-0

Contact Clip Material: PhBz, Tin Plated

Mounting Flange Screw: M2.0, Steel, Zinc Plated

Terminal Lever: Thermoplastic, UL 94V-0

Wire Retention Spring: Stainless Steel

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
