Euro Style Terminal Blocks >  Spring > Direct Solder > Push-Button > Standard (5mm-5.08mm) > EB4898-XX-X00
Approvals
cRU US logo cRU US logo
  • EB4898-XX-X00 SERIES Screwless Blocks

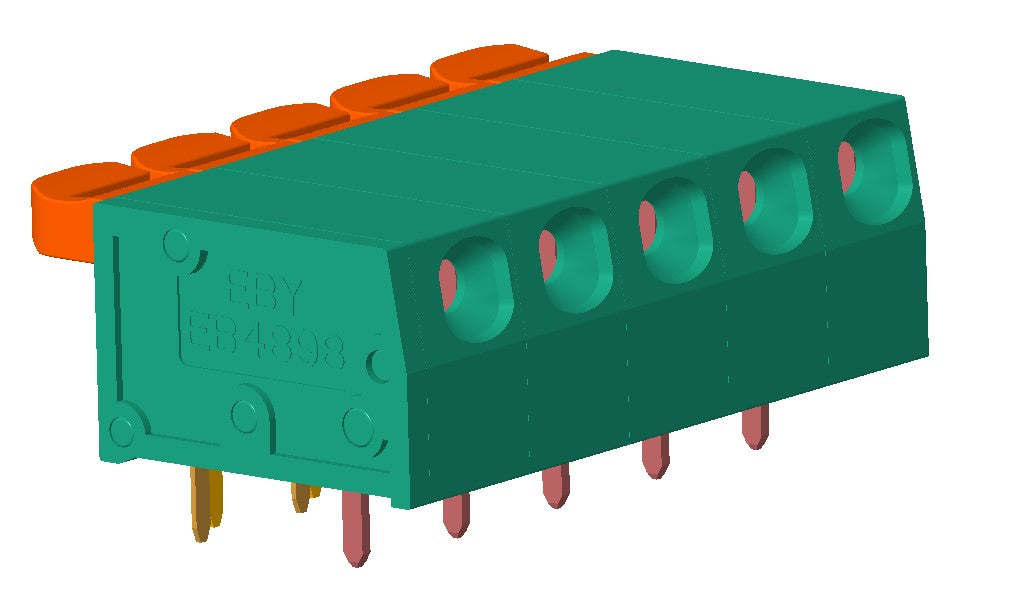

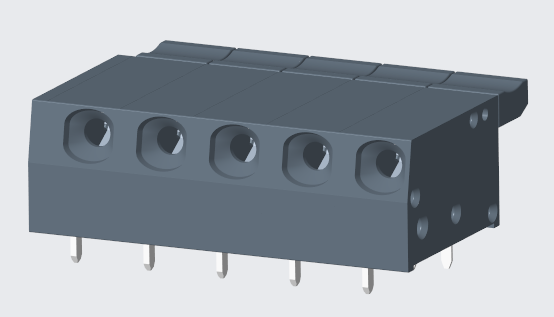

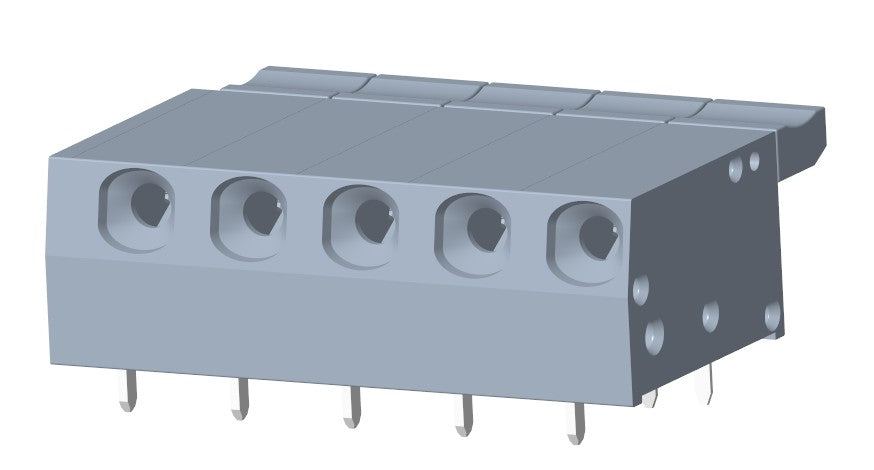

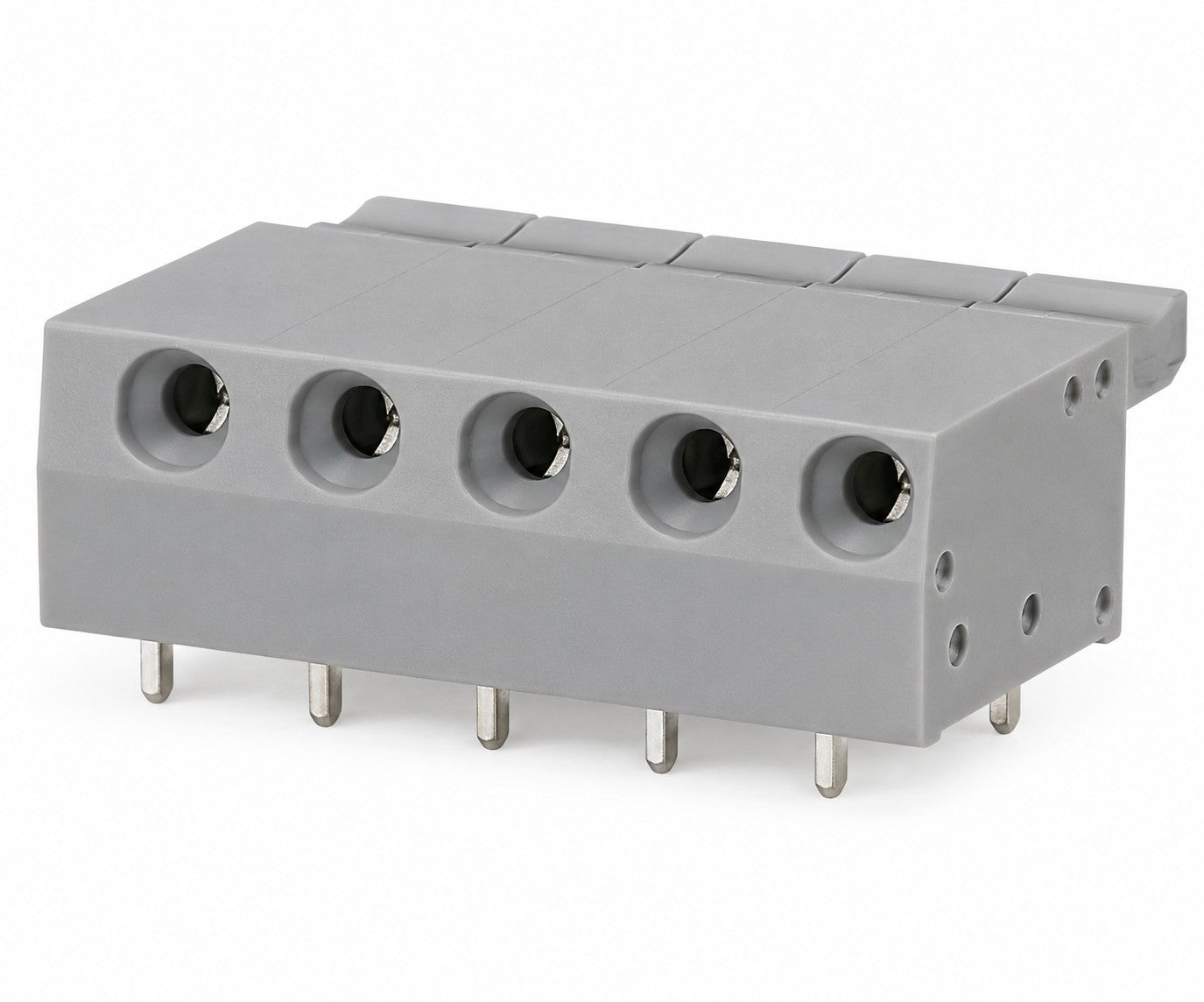

  • EB4898-XX-X00 SERIES Push-Button Blocks dimensional drawing
1 1

Standard

EB4898-XX-X00 Series - Spring - Direct Solder - Push-Button - 5.0mm

Request Sample Request 3D File

EB4898-XX-X00 Push-Button Pluggable Blocks. It has a centerline spacing of 5.0mm. The voltage rating is 150 VAC. The current rating is 2 Amps. It accommodates wire sizes from 16-24AWG. It includes up to 24 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from EB4890-XX-X0X. Each individual pole has an internal switch feature to detect wires.

Maximum number of positions 24

Centerline Spacing 5.00mm Spacing (0.197")

Electrical

Voltage Rating 150 VAC

Current Rating 2 Amps

Wire Range Min / Max 16-24AWG

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Insulator Body Material: EB4890-XX-X0X

Contact Housing Material: PhBz, Tin Plated

Contact Cam: PhBz, Tin Plated

Product Notes

The EB4898 has an “internal switch” in each position to detect the presence of wire. 22 and 24 AWG stranded must be twisted together before insertion to ensure proper detecting switch function.

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Request a Sample and 3D file: Product: EB4898-XX-X00 Series - Spring Direct Solder - Push-Button (5.0mm)
