Name: EB4892-XX-00X SERIES Direct Solder Push-Button Blocks
Brand: ebyelectro
Availability: InStock

Euro Style Terminal Blocks > Spring > Push-Button > Direct Solder > Standard (5mm-5.08mm) > EB4892-XX-00X

Approvals

Available in SMD

1 1

Standard

EB4892-XX-00X Series - Spring - Push-Button - Direct Solder - 5.0mm

Request Sample Request 3D File

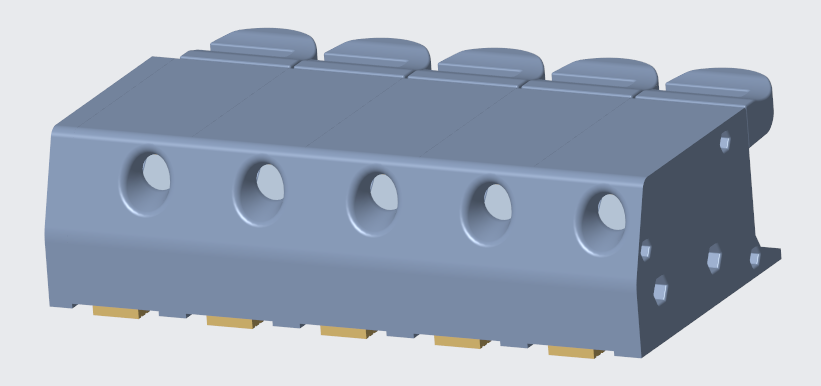

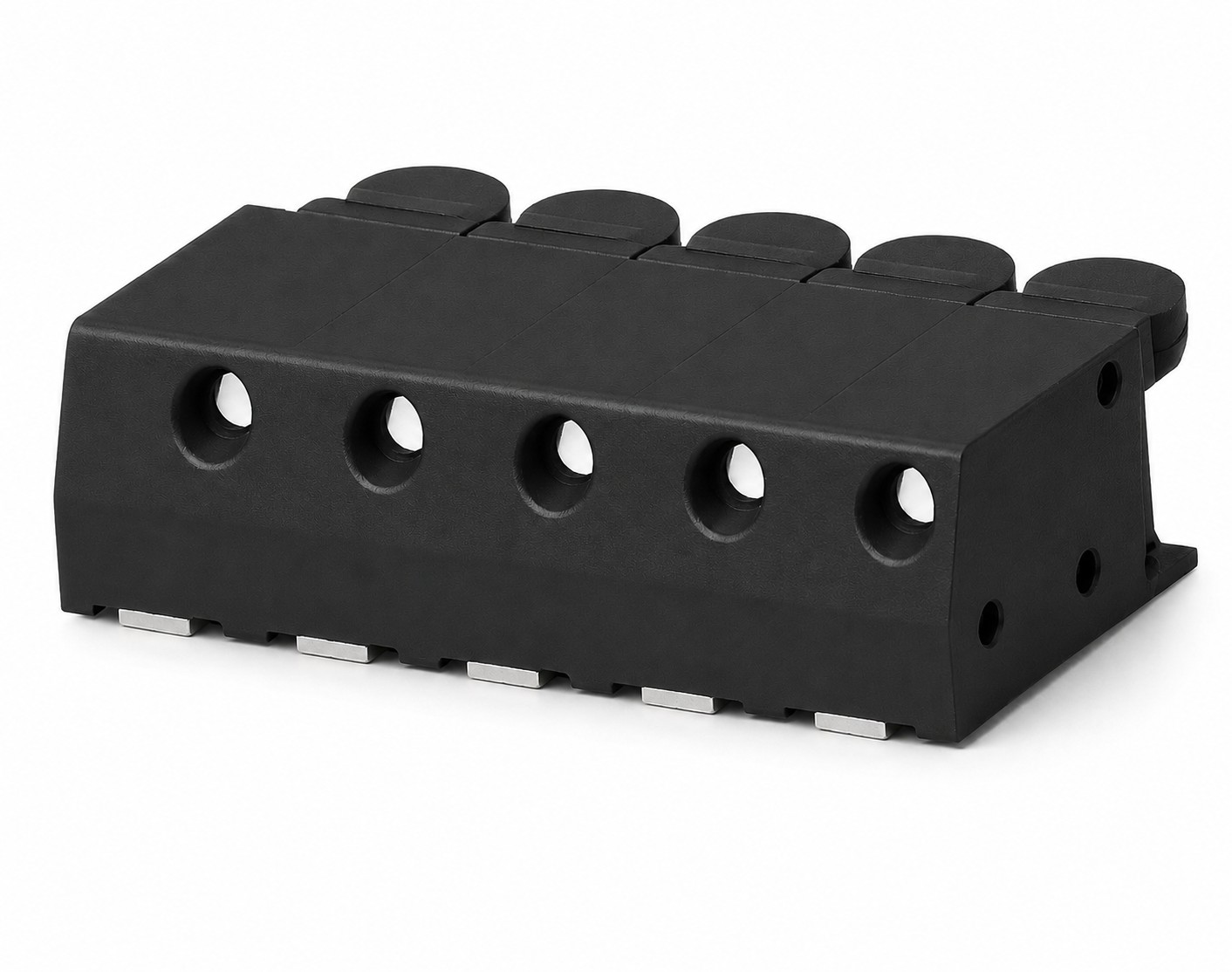

EB4892-XX-00X Push-Button Direct Solder Push-Button Blocks. Low profile High Temp, SMD. It has a centerline spacing of 5.0mm. The voltage rating is 300 VAC. The current rating is 7 Amps. It accommodates wire sizes from 16-24AWG. It includes up to 24 positions. The contact block is made of Brass, Tin Plated. The housing is constructed from Polyamide PA6T, UL94V-0. Feature: Surface Mount Push-Button Terminal Block.

Maximum number of positions 24

Centerline Spacing 5.00mm Spacing (0.197")

Mechanical

Torque: YES

Soldering Temperatures: 260° C for 5 sec

Electrical

Voltage Rating: 300 VAC

Current Rating: 7 Amps

Wire Range Min / Max: 16-24AWG

Material

Insulator Body Material: PA6T

Wire Retention Spring: Stainless Steel

Contact Block Material: Brass, Tin Plated

Contact Solder Pin Material: Brass, Tin Plated

Color: Black

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
