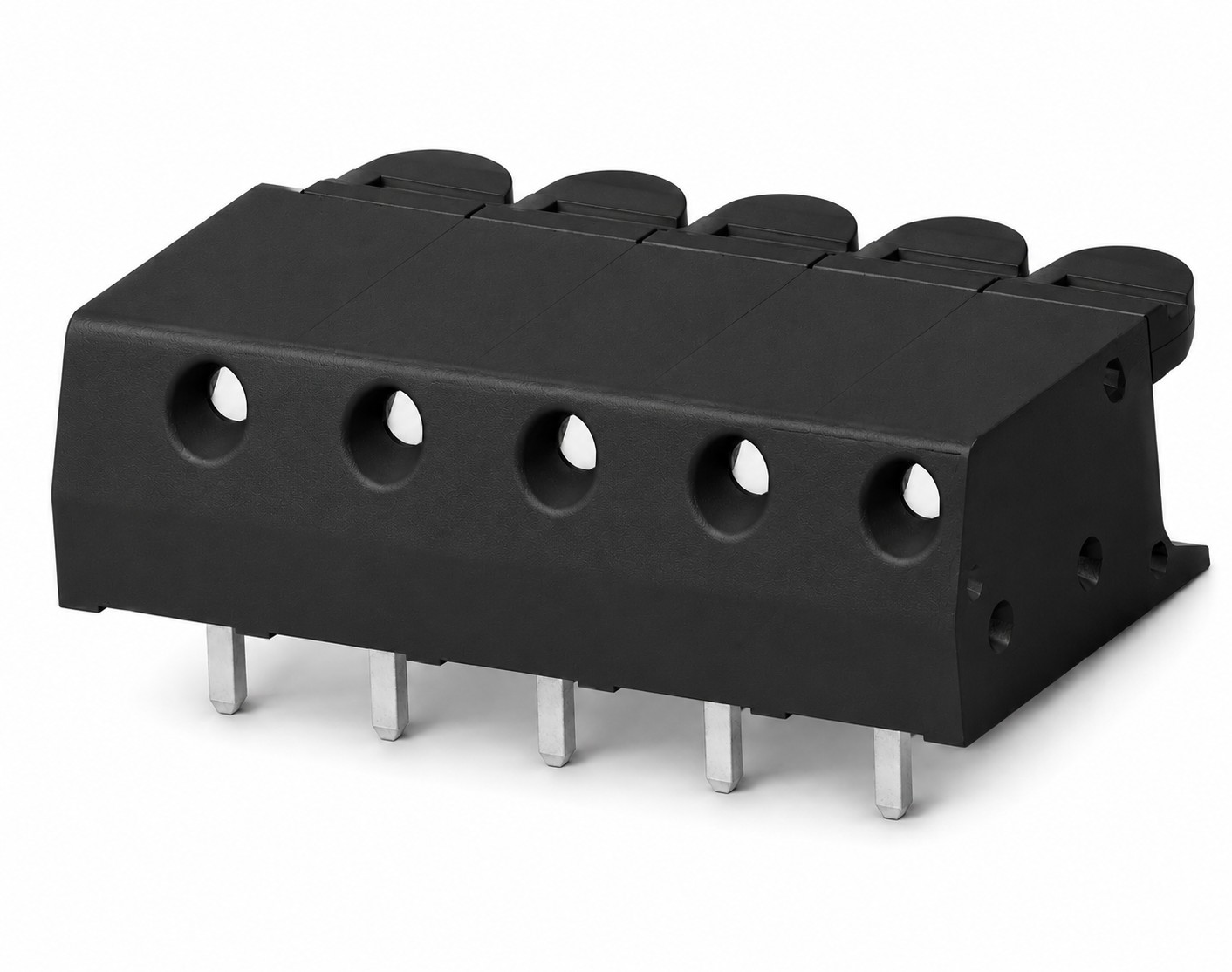

Name: EB4890 SERIES Push-Button Blocks
Brand: ebyelectro
Availability: InStock

Euro Style Terminal Blocks > Spring > Direct Solder > Push-Button > Standard (5mm-5.08mm) > EB4890

Approvals

1 1

Standard

EB4890 Series - Spring - Direct Solder - Push-Button - 5.0mm

Request Sample Request 3D File

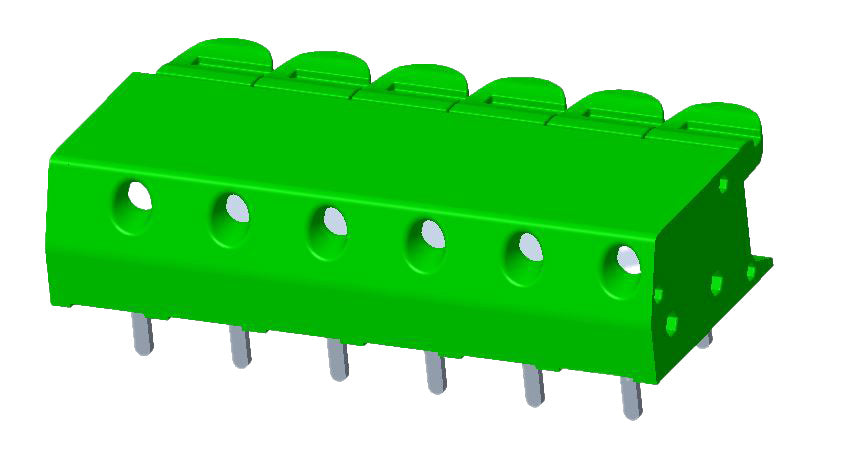

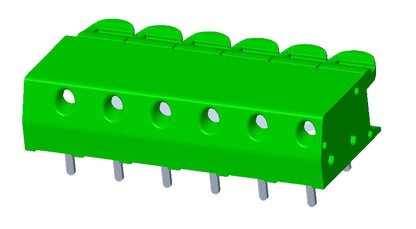

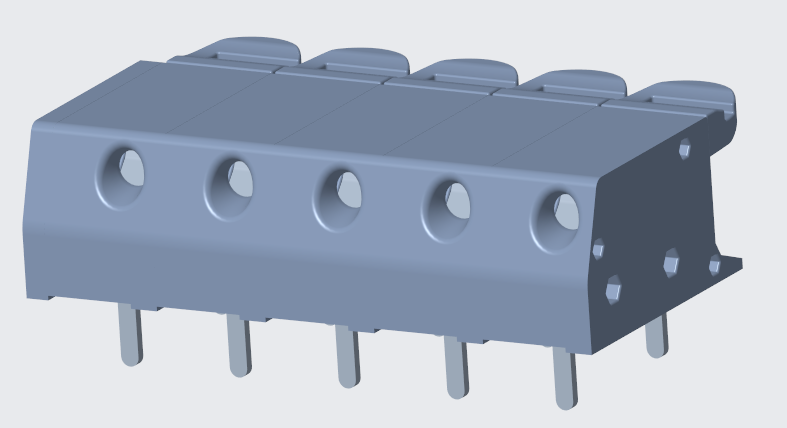

EB4890 Push-Button Pluggable Blocks. It has a centerline spacing of 5.0mm. The voltage rating is 300 VAC. The current rating is 7 Amps. It accommodates wire sizes from 16-24AWG. It includes up to 24 positions. The contact block is made of Brass, Tin Plated. The housing is constructed from PA6T, 20%GF, UL94V-0. Feature: Modular.

Maximum number of positions 24

Centerline Spacing 5.00mm Spacing (0.197")

Electrical

Voltage Rating 300 VAC

Current Rating 7 Amps

Wire Range Min / Max 16-24AWG

Mechanical

Torque YES

Soldering Temperatures YES

Material

Insulator Body Material: PA6T, 20%GF, UL94V-0

Wire Retention Spring: Stainless Steel

Contact Block Material: Brass, Tin Plated

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
