Name: EB487-XX-813 SERIES Tool Required Blocks
Brand: ebyelectro
Availability: InStock

Euro Style Terminal Blocks > Spring > Direct Solder > Tool Required > Power (6mm-20mm) > EB487-XX-813

Approvals

1 1

Power

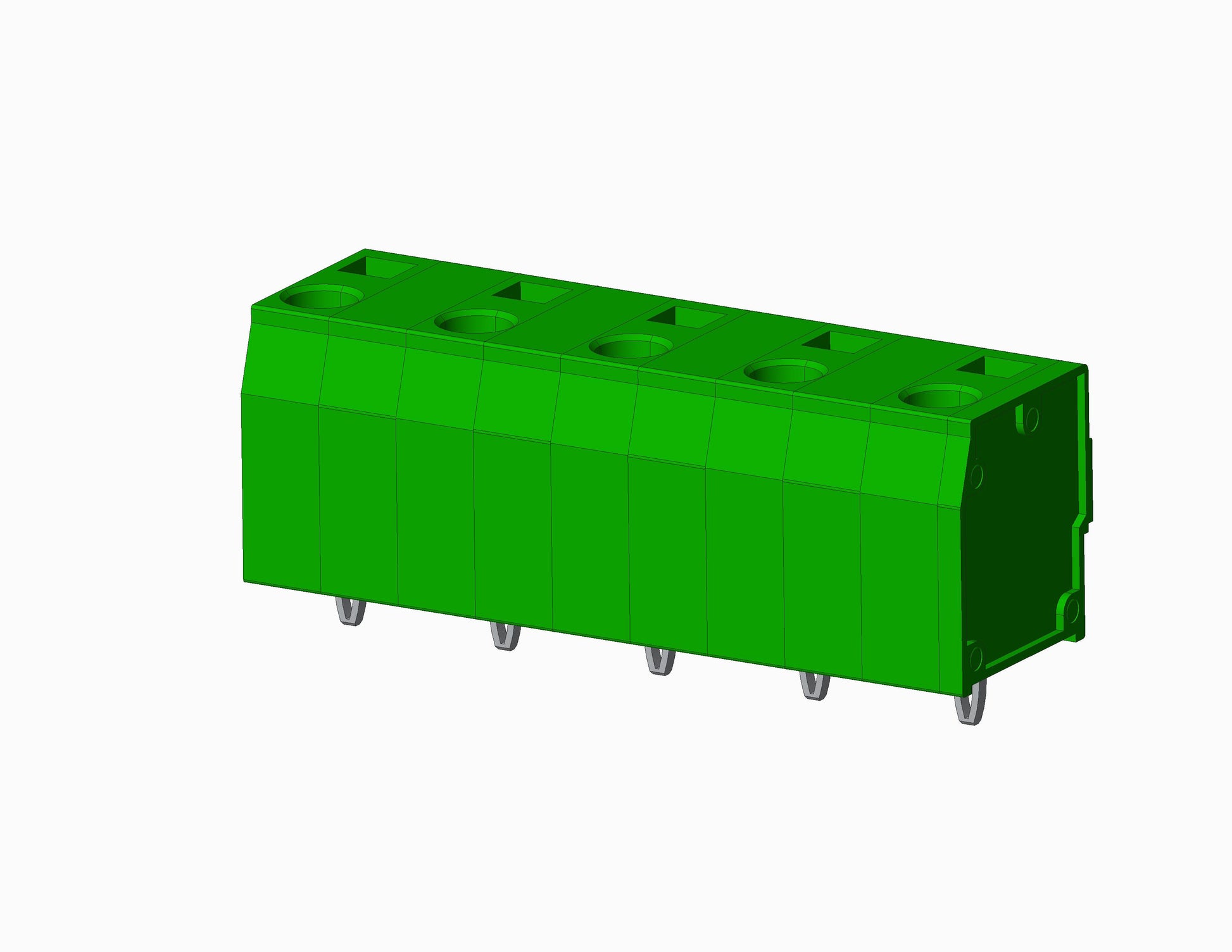

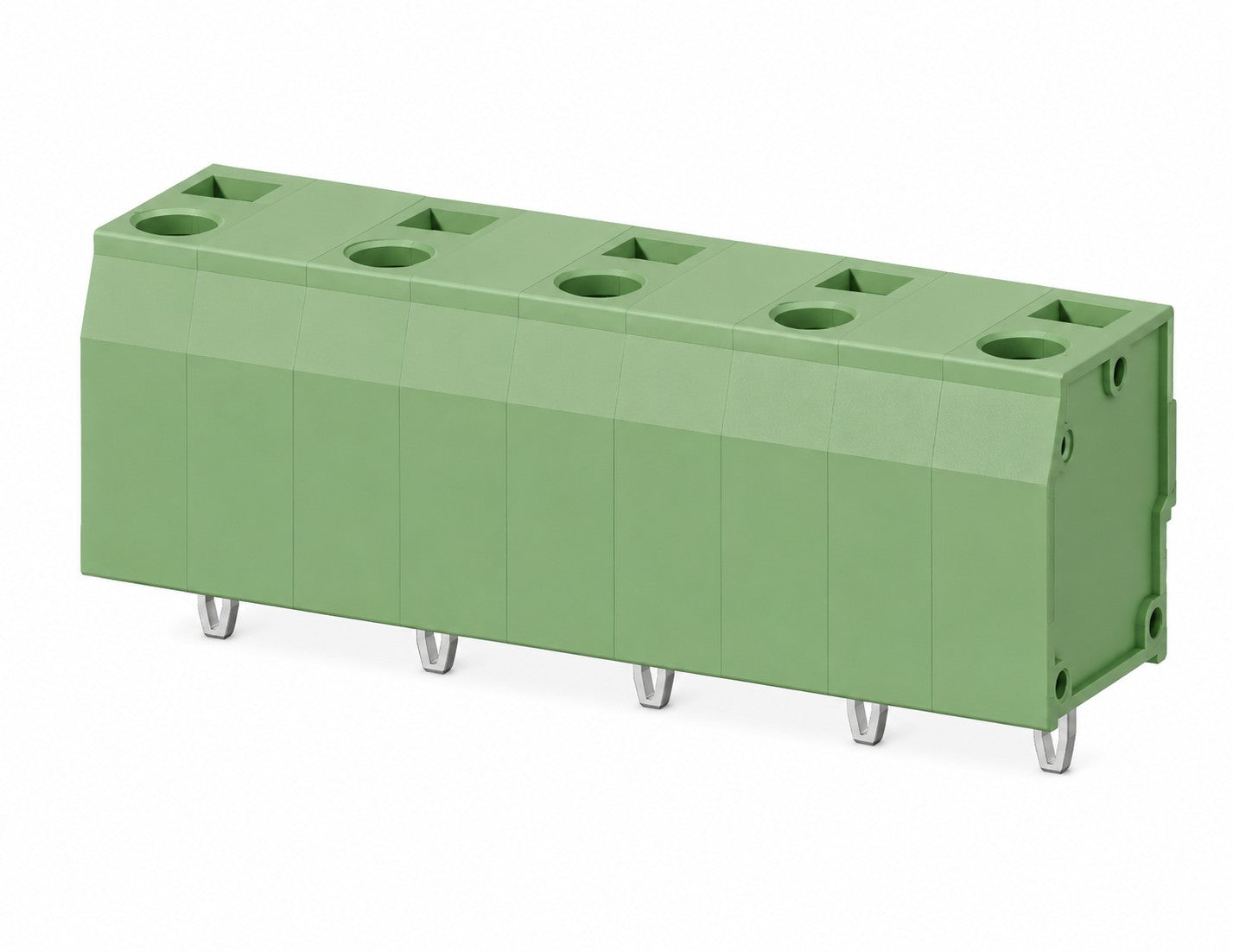

EB487-XX-813 Series - Spring - Direct Solder - Tool Required - 10.0mm

Request Sample Request 3D File

EB487-XX-813 Tool Required Pluggable Blocks. It has a centerline spacing of 10.0mm. The voltage rating is 250 VAC. The current rating is 8 Amps. It accommodates wire sizes from 12-28AWG. It includes up to 12 positions. The housing is constructed from Polyamide, UL 94V-0. Feature: Press Fit.

Maximum number of positions 12

Centerline Spacing 10.00mm Spacing (0.394")

Electrical

Voltage Rating 250 VAC

Current Rating 8 Amps

Wire Range Min / Max 12-28AWG

Mechanical

Torque YES

Soldering Temperatures YES

Material

Insulator Body Material: Polyamide, UL 94V-0

Wire Retention Spring: Stainless Steel

Contact Solder Pin Material: Brass, Tin Plated

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
