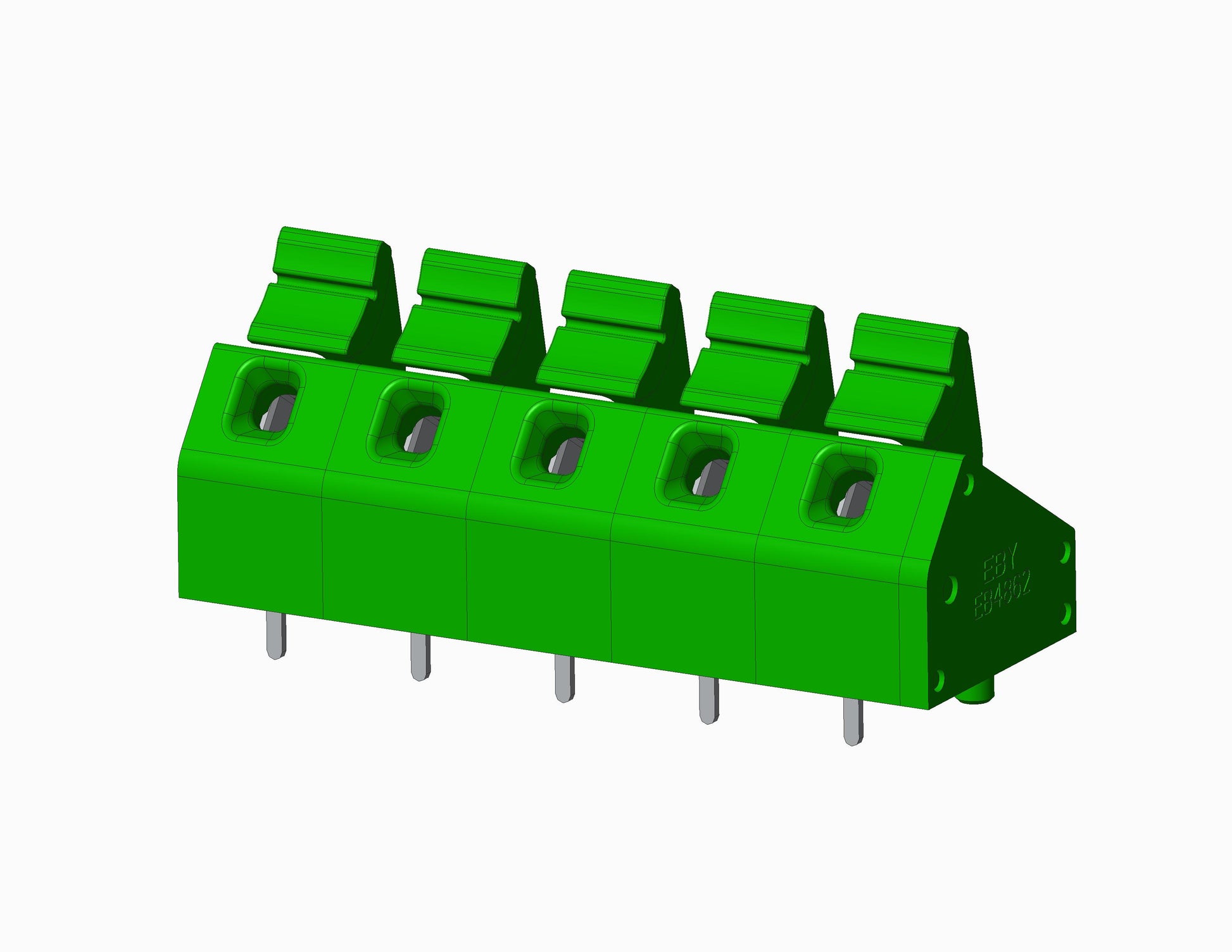

  • EB4862-XX-X00 SERIES Screwless Blocks

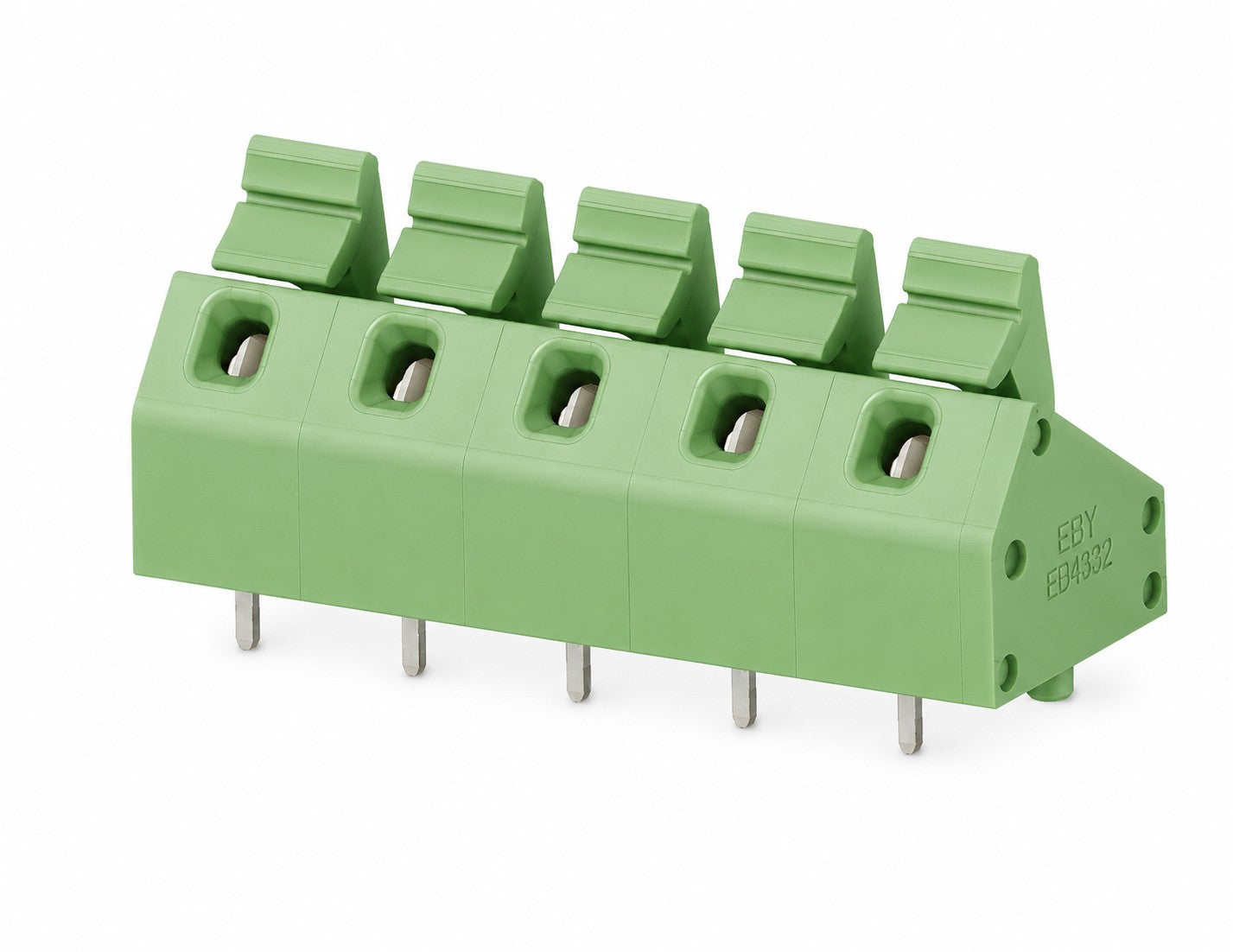

  • EB4862-XX-X00 SERIES Push-Button Blocks dimensional drawing
1 1

Power

EB4862-XX-X00 Series - Spring - Direct Solder - Push-Button - 7.62mm

Request Sample Request 3D File

EB4862-XX-X00 Push-Button Pluggable Blocks. It has a centerline spacing of 7.62mm. The voltage rating is 300 VAC. The current rating is 8 Amps. It accommodates wire sizes from 14-22AWG. It includes up to 30 positions. The contact block is made of Brass, Tin Plated. The housing is constructed from Polyamide PA66, UL 94V-. Feature: Modular.

Maximum number of positions 30

Centerline Spacing 7.62mm Spacing (0.300")

Electrical

Voltage Rating 300 VAC

Current Rating 8 Amps

Wire Range Min / Max 14-22AWG

Mechanical

Torque YES

Soldering Temperatures YES

Insulator Body Material: Polyamide PA66, UL 94V-

Wire Retention Spring: Stainless Steel

Contact Block Material: Brass, Tin Plated

Product Notes

Lever and wire entry in same 45 degree plane Wide pad finger friendly lever and slot Multi-color sections Low wire insertion force 300V, 8A and 14-22 AWG EB4862 Feature Sheet

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
