Euro Style Terminal Blocks >  Spring > Pluggable > Push-Button > Compact (3.5mm-4.57mm) > EB475MN-XX-500
Approvals
cRU US logo cRU US logo

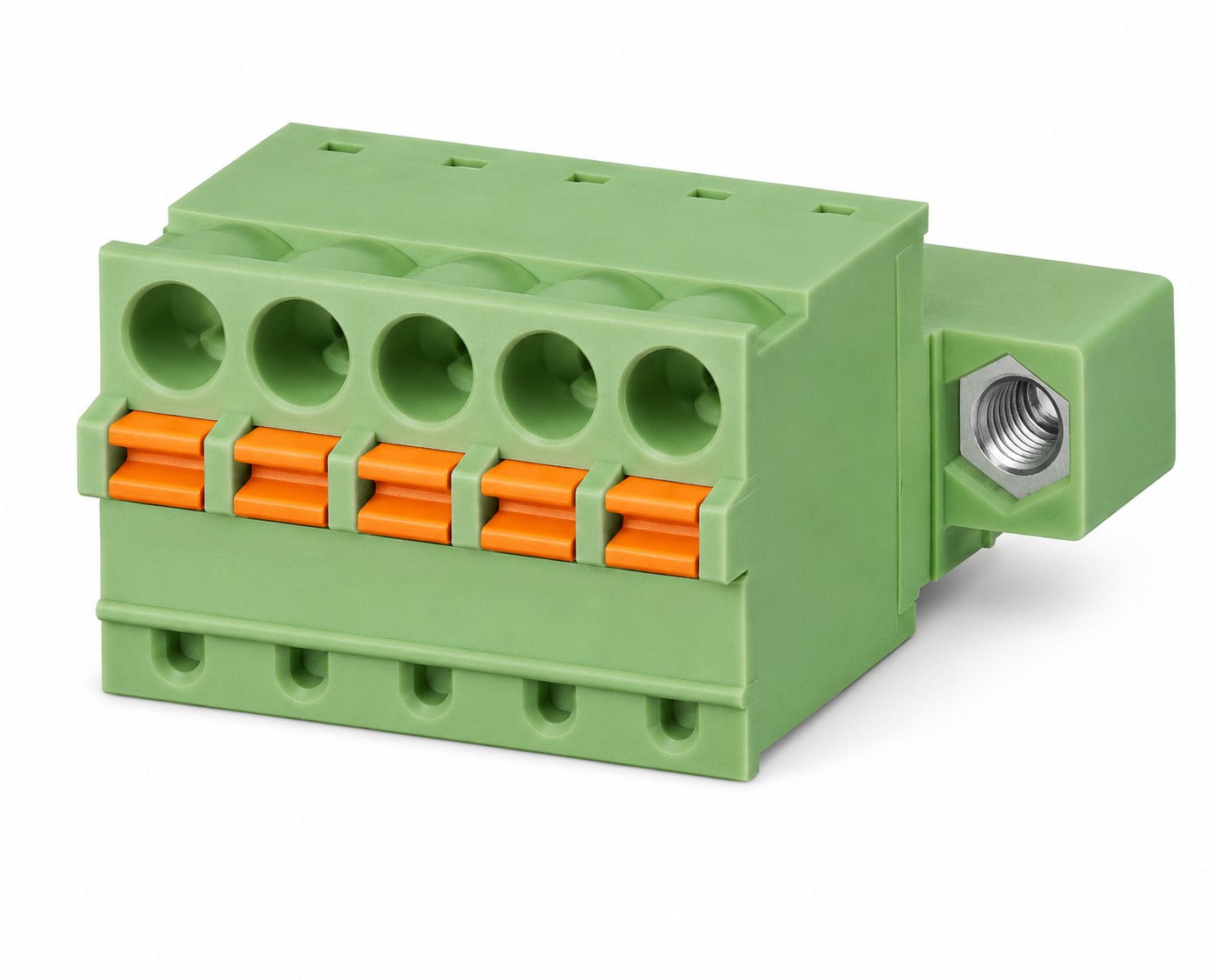

  • EB475MN-XX-500 SERIES Screwless Pluggable Blocks
  • EB475MN-XX-500 SERIES Push-Button Pluggable Blocks dimensional drawing
1 1

Compact

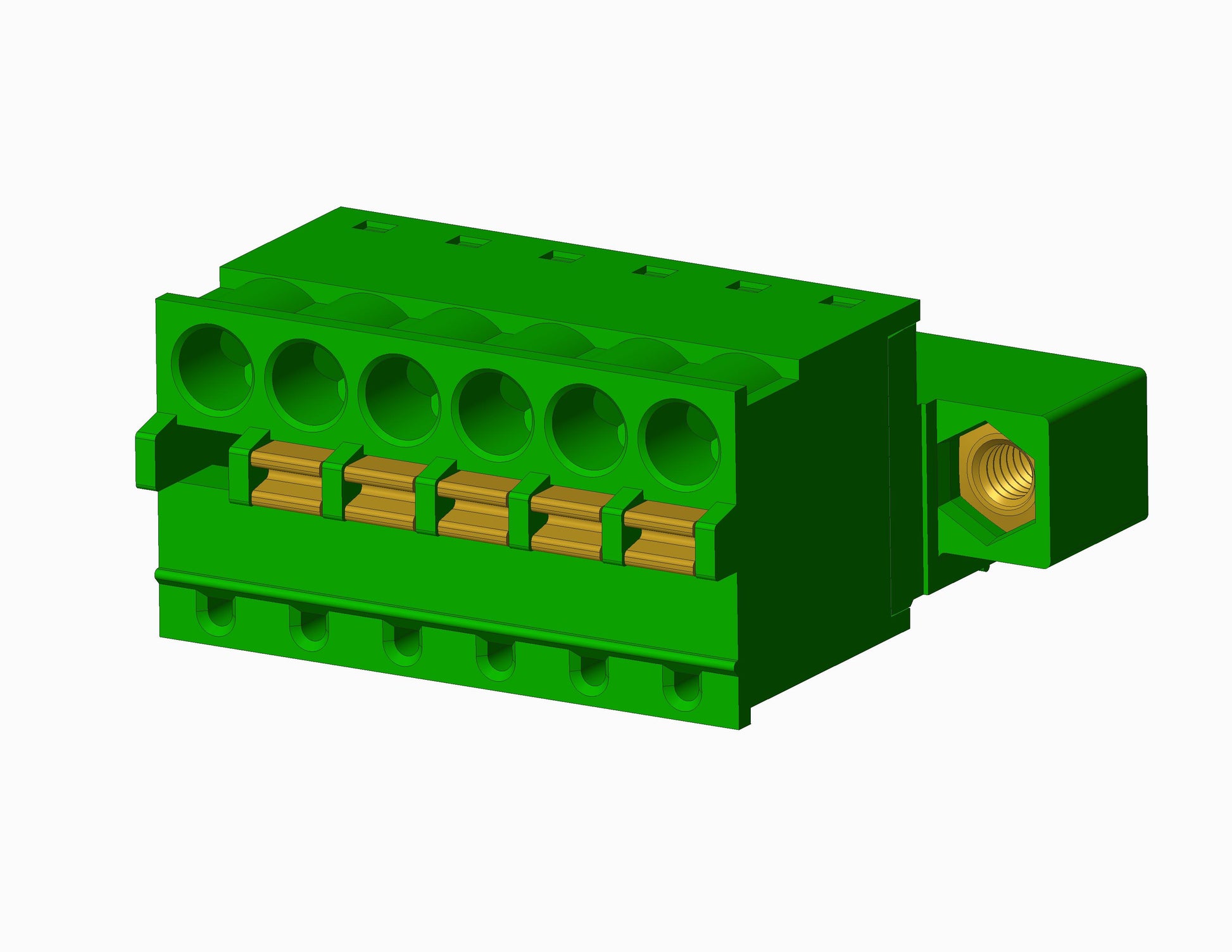

EB475MN-XX-500 Series - Spring - Pluggable - Push-Button - 3.81mm

Request Sample Request 3D File

EB475MN-XX-500 Push-Button Pluggable Block. It has a centerline spacing of 3.81mm. The voltage rating is 300 VAC. The current rating is 4 Amps. It accommodates wire sizes from 16-28AWG. It includes up to 0 positions. The contact block is made of PhBz, Tin Plated. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 0

Centerline Spacing 3.81mm Spacing (0.150")

Electrical

Voltage Rating 300 VAC

Current Rating 4 Amps

Wire Range Min / Max 16-28AWG

Mechanical

Torque YES

Soldering Temperatures YES

Insulator Body Material: Polyamide, UL 94V-0

Contact Block Material: PhBz, Tin Plated

Contact Solder Pin Material: PhBz, Tin Plated

Mounting Flange Nut: M2.5, Brass

Wire Guard Material: Stainless Steel

Color: Green

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Request a Sample and 3D file: Product: EB475MN-XX-500 Series - Spring Pluggable - Push-Button (3.81mm)
