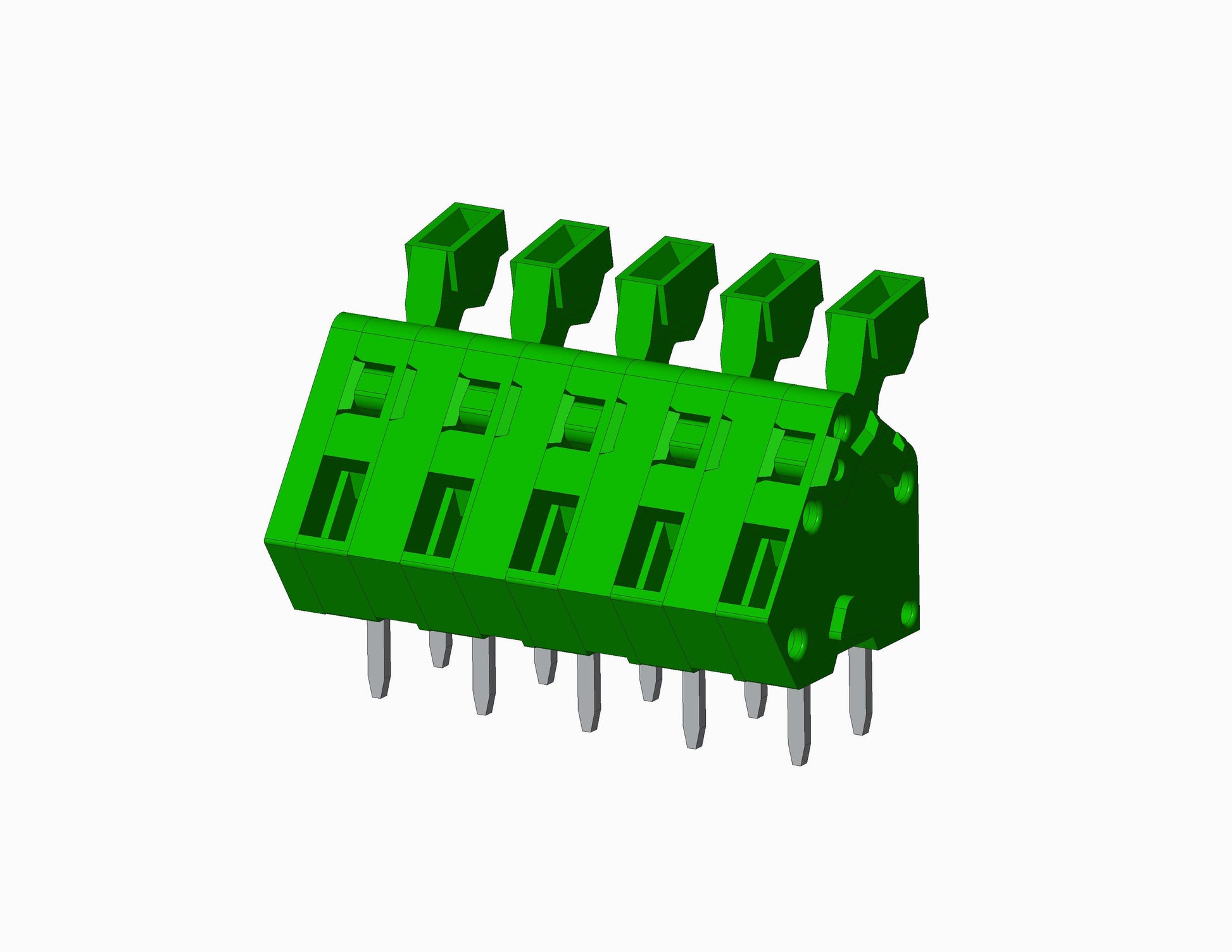

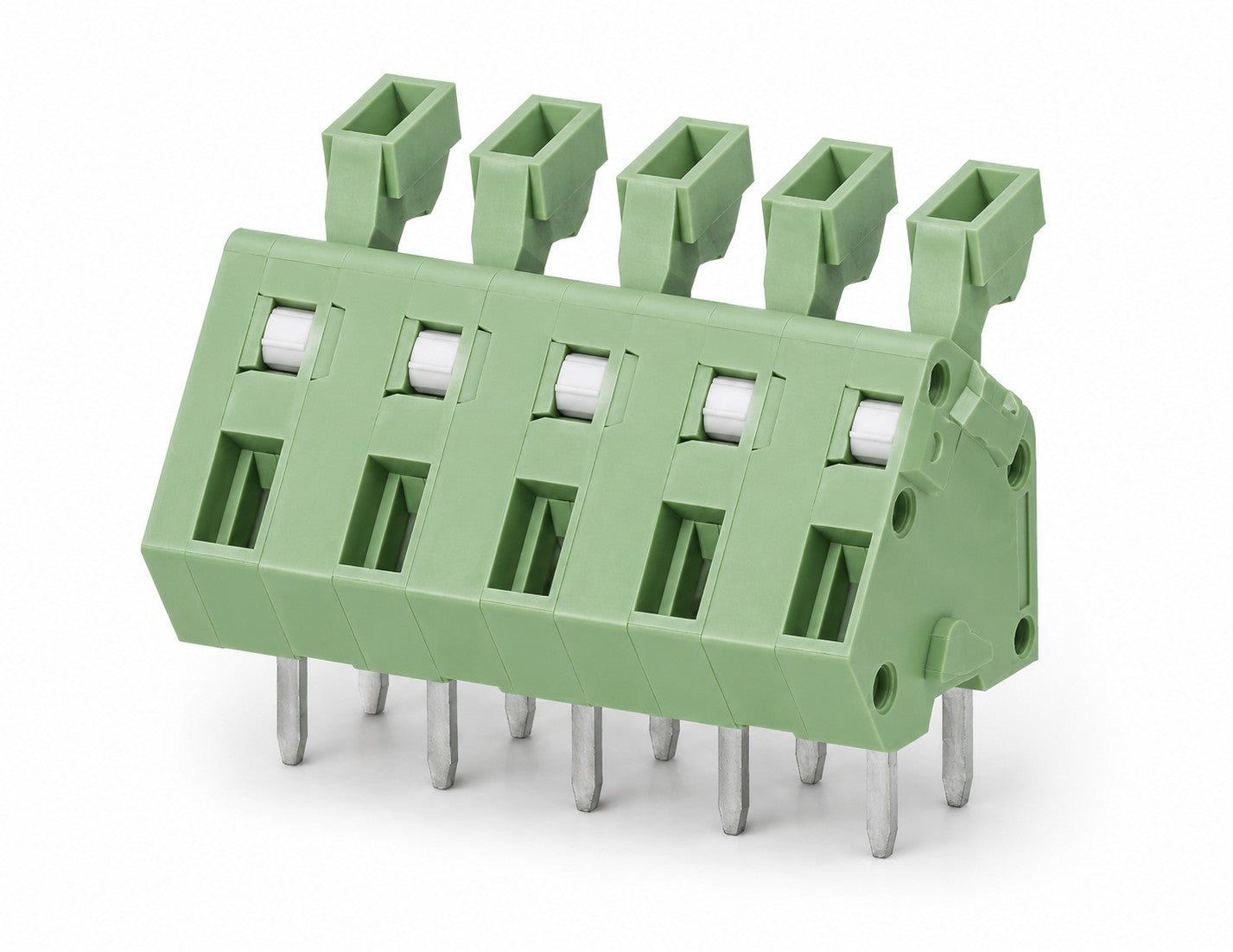

Name: EB472-XX-302 SERIES Push-Button Blocks
Brand: ebyelectro
Availability: InStock

Euro Style Terminal Blocks > Spring > Direct Solder > Push-Button > Standard (5mm-5.08mm) > EB472-XX-302

Approvals

1 1

Standard

EB472-XX-302 Series - Spring - Direct Solder - Push-Button - 5.08mm

Request Sample Request 3D File

EB472-XX-302 Push-Button Pluggable Blocks. It has a centerline spacing of 5.08mm. The voltage rating is 150 VAC. The current rating is 4 Amps. It accommodates wire sizes from 22-28AWG. It includes up to 8 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 8

Centerline Spacing 5.08mm Spacing (0.200")

Electrical

Voltage Rating 150 VAC

Current Rating 4 Amps

Wire Range Min / Max 22-28AWG

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material: Polyamide, UL 94V-0

Wire Retention Spring: Stainless Steel

Contact Solder Pin Material: Brass, Tin Plated

Color: Orange

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
