Terminal Blocks >  Spring > Direct Solder > Push-Button > Micro (2.5mm-2.54mm) > EB472-XX-300
Approvals
cRU US logo cRU US logo

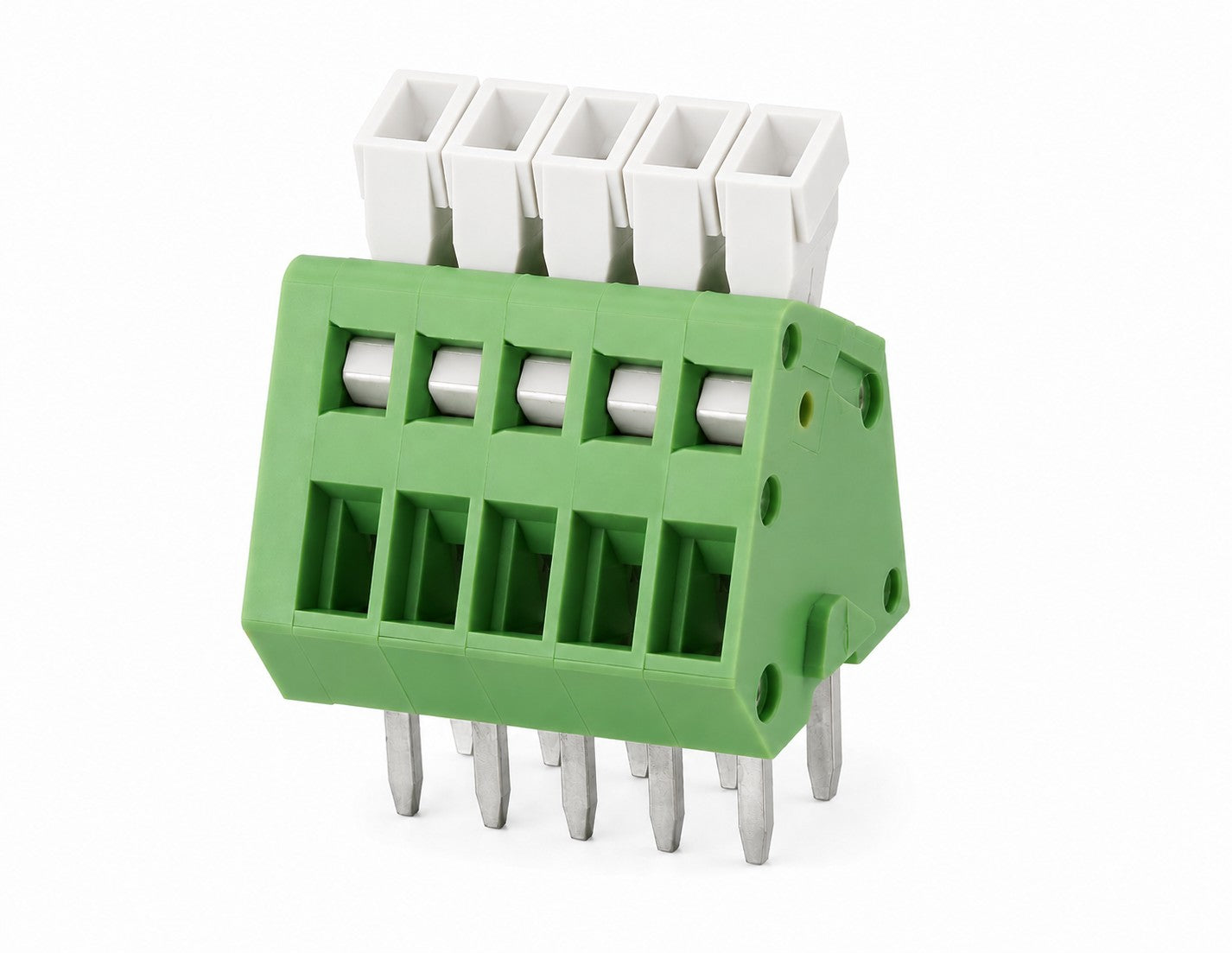

  • EB472-XX-300 SERIES Screwless Blocks

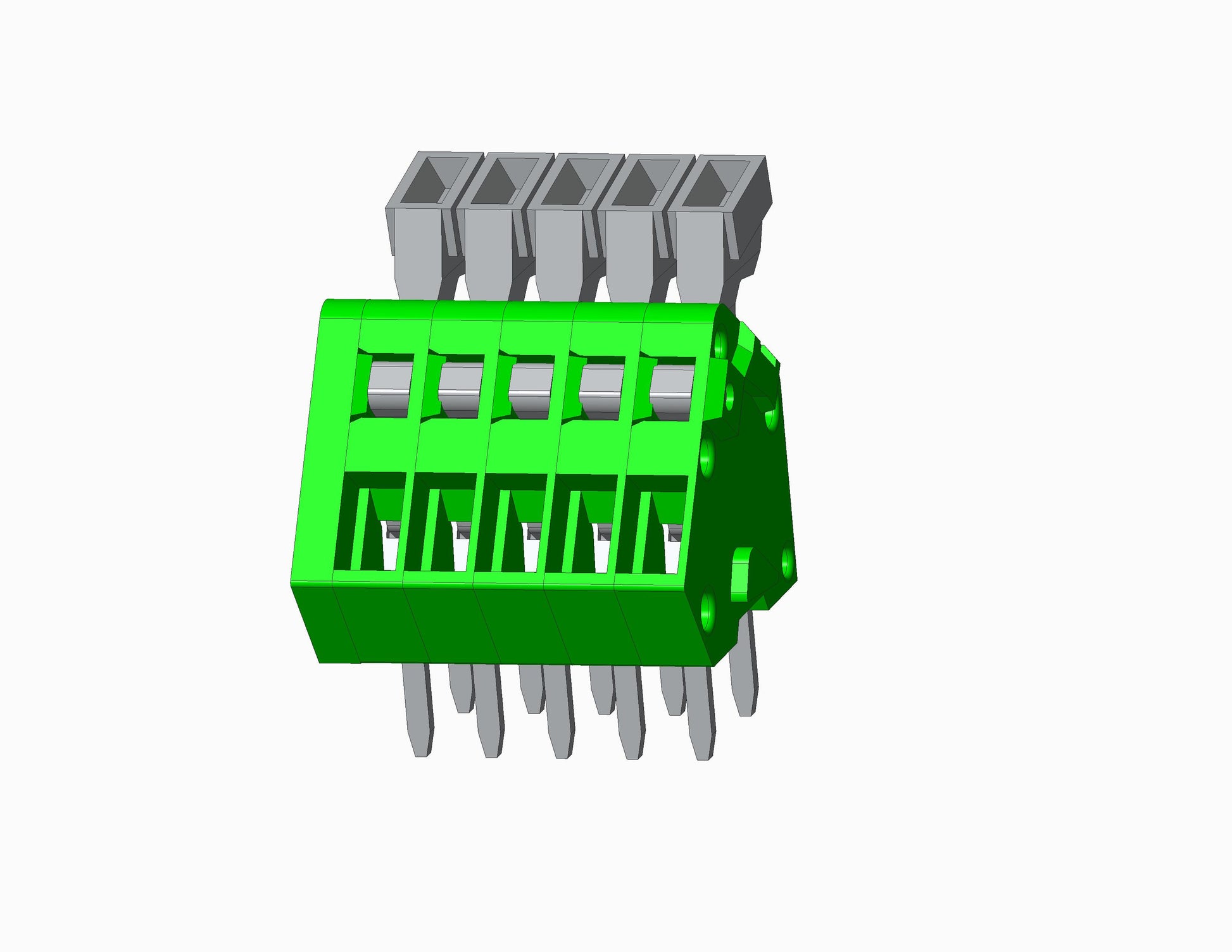

  • EB472-XX-300 SERIES Push-Button Blocks dimensional drawing
1 1

Micro

EB472-XX-300 Series - Spring - Direct Solder - Push-Button - 2.54mm

Request Sample Request 3D File

EB472-XX-300 Push-Button Pluggable Blocks. It has a centerline spacing of 2.54mm. The voltage rating is 150 VAC. The current rating is 4 Amps. It accommodates wire sizes from 22-28AWG. It includes up to 12 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 12

Centerline Spacing 2.54mm Spacing (0.100")

Electrical

Voltage Rating 150 VAC

Current Rating 4 Amps

Wire Range Min / Max 22-28AWG

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material Polyamide, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring Stainless Steel

Terminal Screw Size

Terminal Screw Material

Contact Block Material

Contact Solder Pin Material Brass, Tin Plated

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color Orange

Cover

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Request a Sample and 3D file: Product: EB472-XX-300 Series - Spring - Direct Solder - Push-Button (2.54mm)
