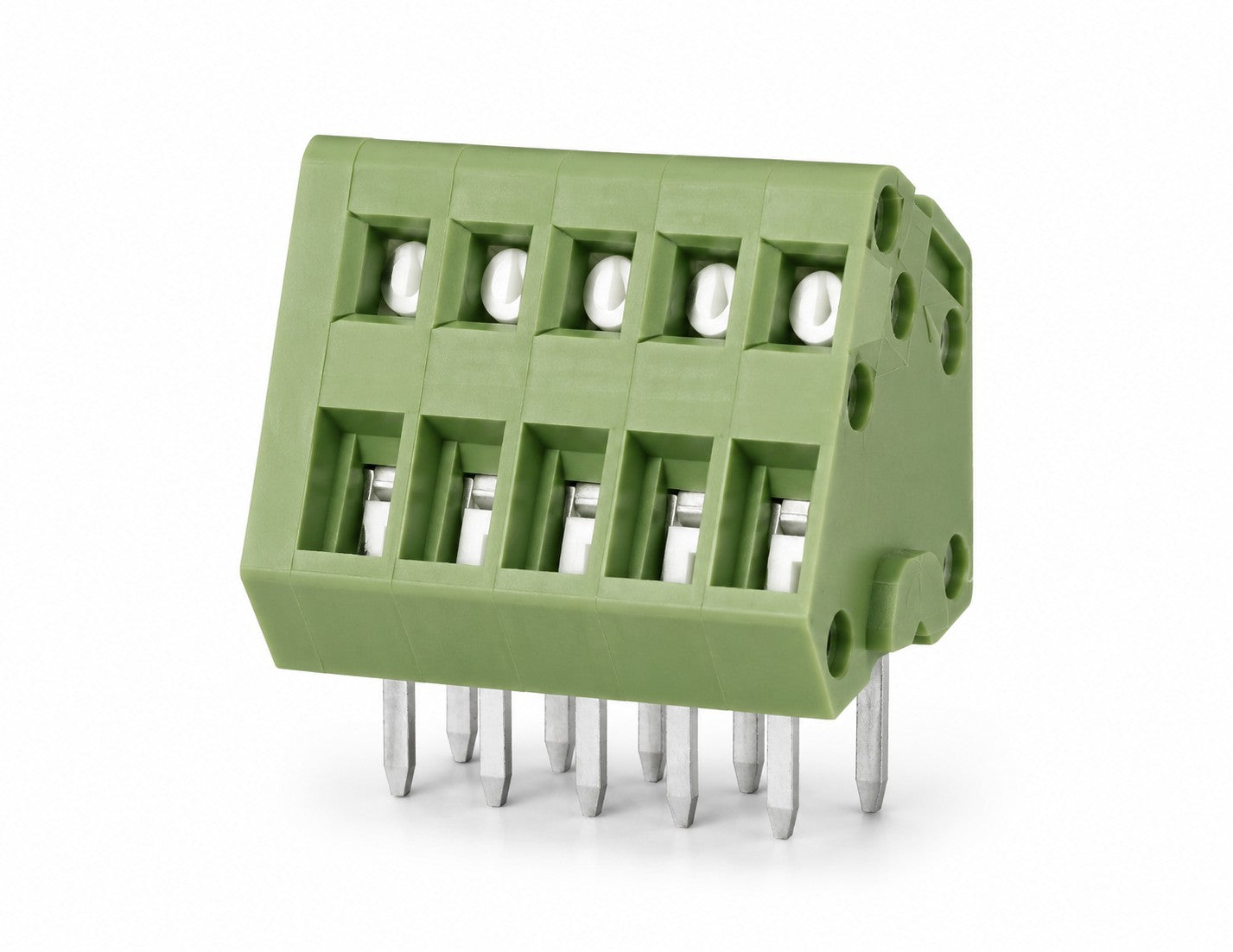

Name: EB471-XX-800 SERIES Tool Required Blocks
Brand: ebyelectro
Availability: InStock

Euro Style Terminal Blocks > Spring > Direct Solder > Tool Required > Micro (2.5mm-2.54mm) > EB471-XX-800

Approvals

1 1

Micro

EB471-XX-800 Series - Spring - Direct Solder - Tool Required - 2.5mm

Request Sample Request 3D File

EB471-XX-800 Tool Required Pluggable Blocks. It has a centerline spacing of 2.5mm. The voltage rating is 150 VAC. The current rating is 4 Amps. It accommodates wire sizes from 22-28AWG. It includes up to 24 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 24

Centerline Spacing 2.50mm Spacing (0.098")

Electrical

Voltage Rating 150 VAC

Current Rating 4 Amps

Wire Range Min / Max 22-28AWG

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material: Polyamide, UL 94V-0

Wire Retention Spring: Stainless Steel

Contact Solder Pin Material: Brass, Tin Plated

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
