Standard

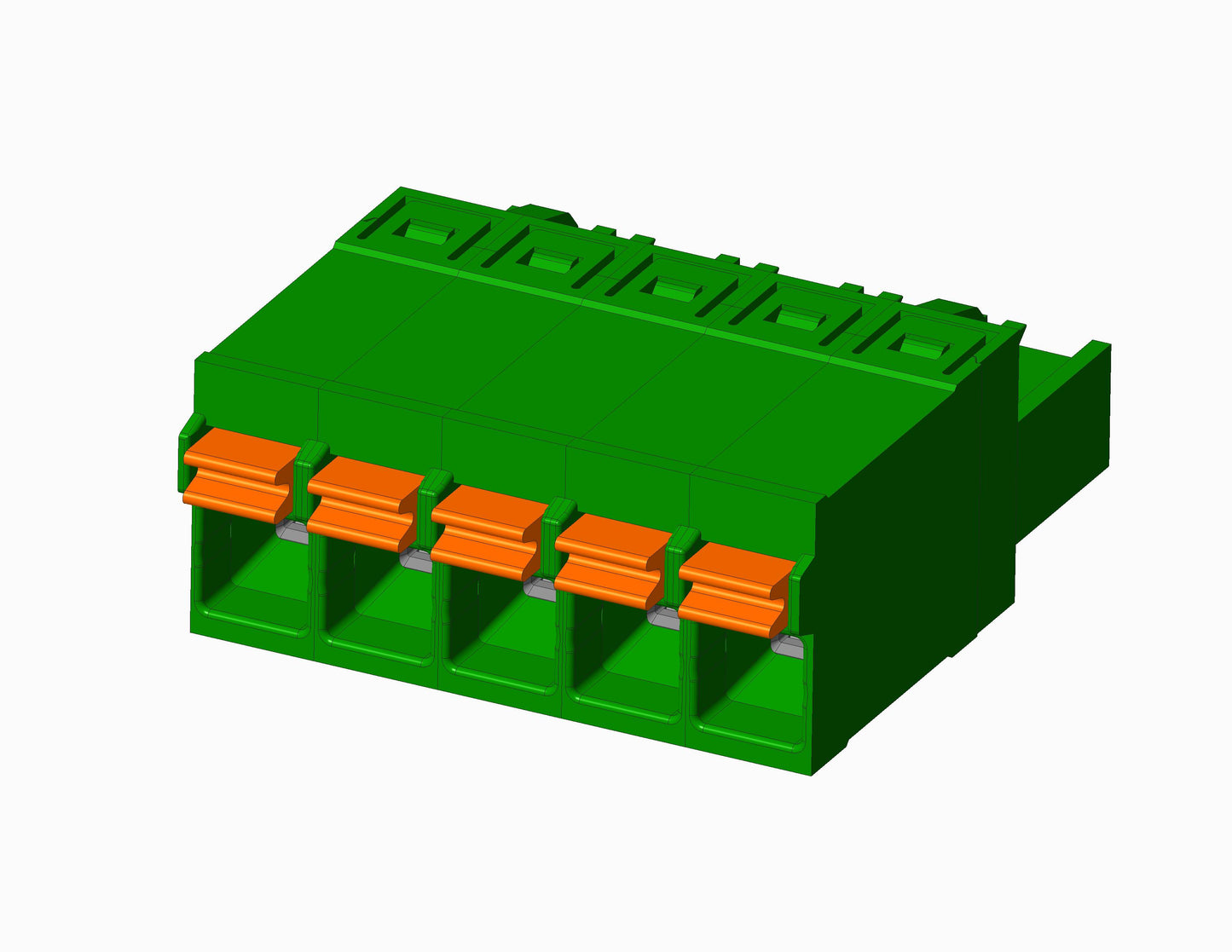

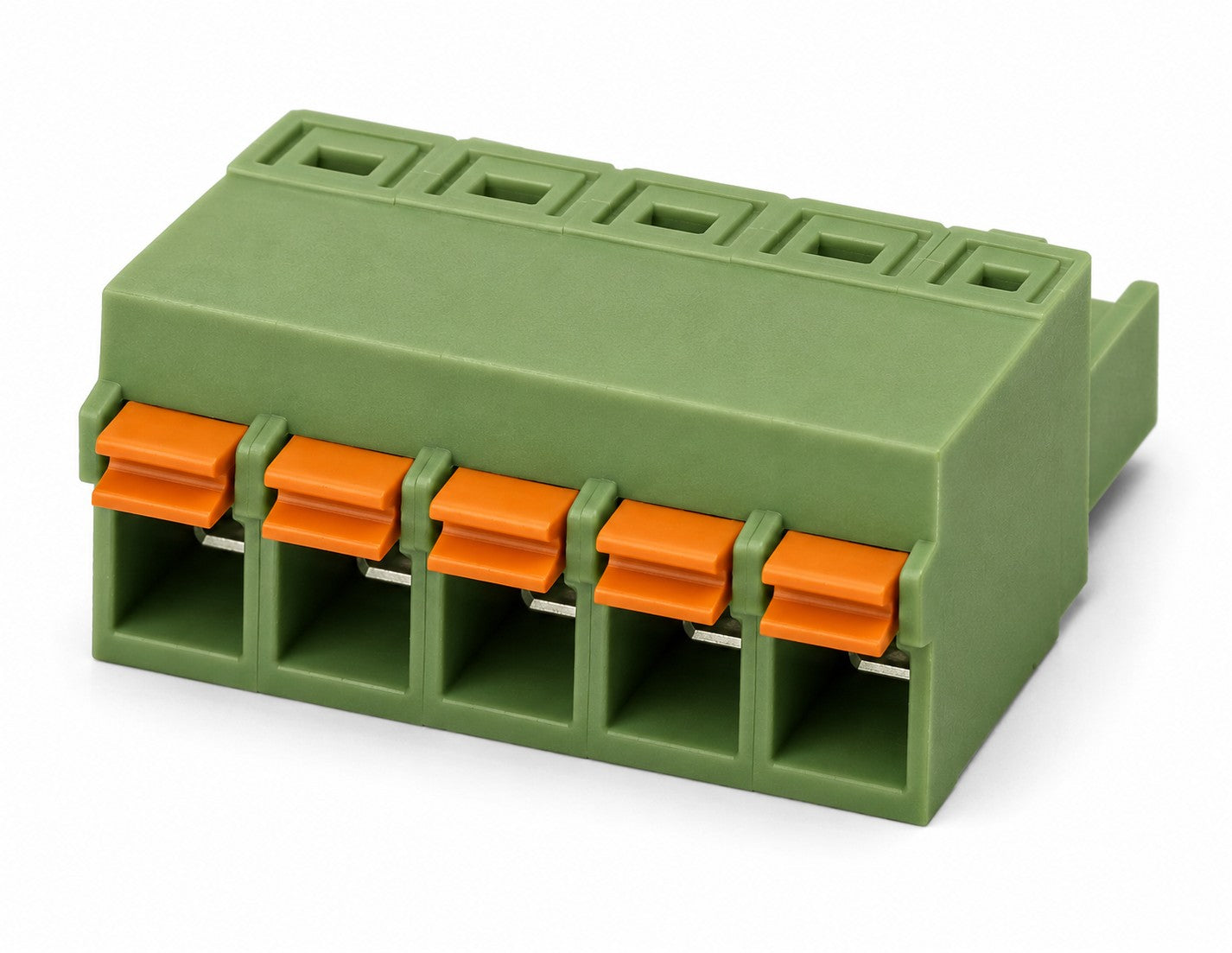

EB465-XX-500 Series - Screw - Pluggable - Push-Button - 5.0mm

EB465-XX-500 Pluggable Block. It has a centerline spacing of 5.0mm. The voltage rating is 300 VAC. The current rating is 12 Amps. It accommodates wire sizes from 14-24AWG. It includes up to 0 positions. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions

Centerline Spacing 5.00mm Spacing (0.197")

Electrical

Voltage Rating 300 VAC

Current Rating 12 Amps

Wire Range Min / Max 14-24AWG

Mechanical

Torque YES

Soldering Temperatures YES

Material

Insulator Body Material Polyamide, UL 94V-0

Contact Clip Material PhBz, Tin Plated

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring Stainless Steel

Terminal Screw Size

Terminal Screw Material

Contact Block Material

Contact Solder Pin Material

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color Green

Cover

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Request a Sample and 3D file: Product: EB465-XX-500 Series - Screw Pluggable - Push-Button (5.0mm)
