Euro Style Terminal Blocks >  Spring > Pluggable > Push-Button > Power (6mm-20mm) > EB462AM
Approvals
cRU US logo cRU US logo

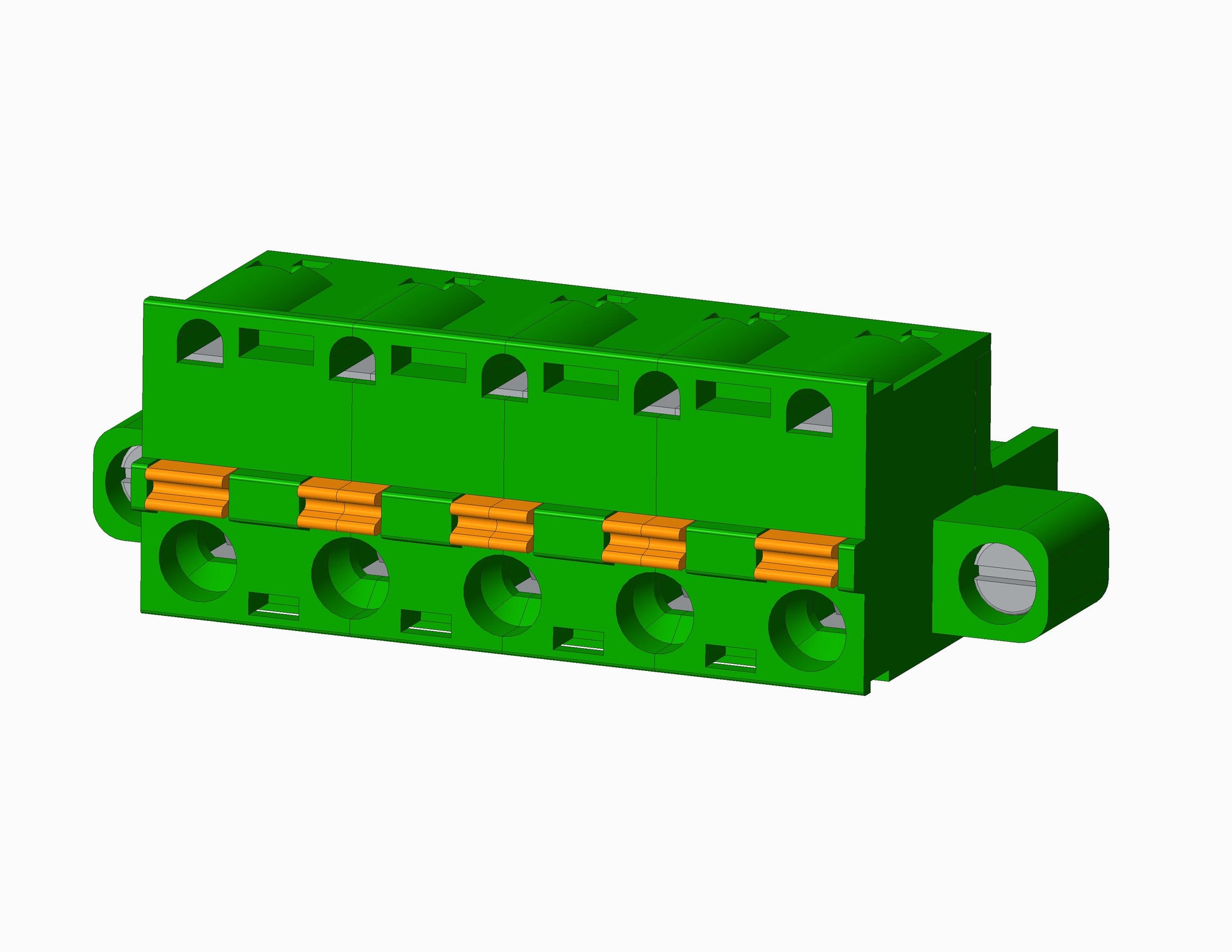

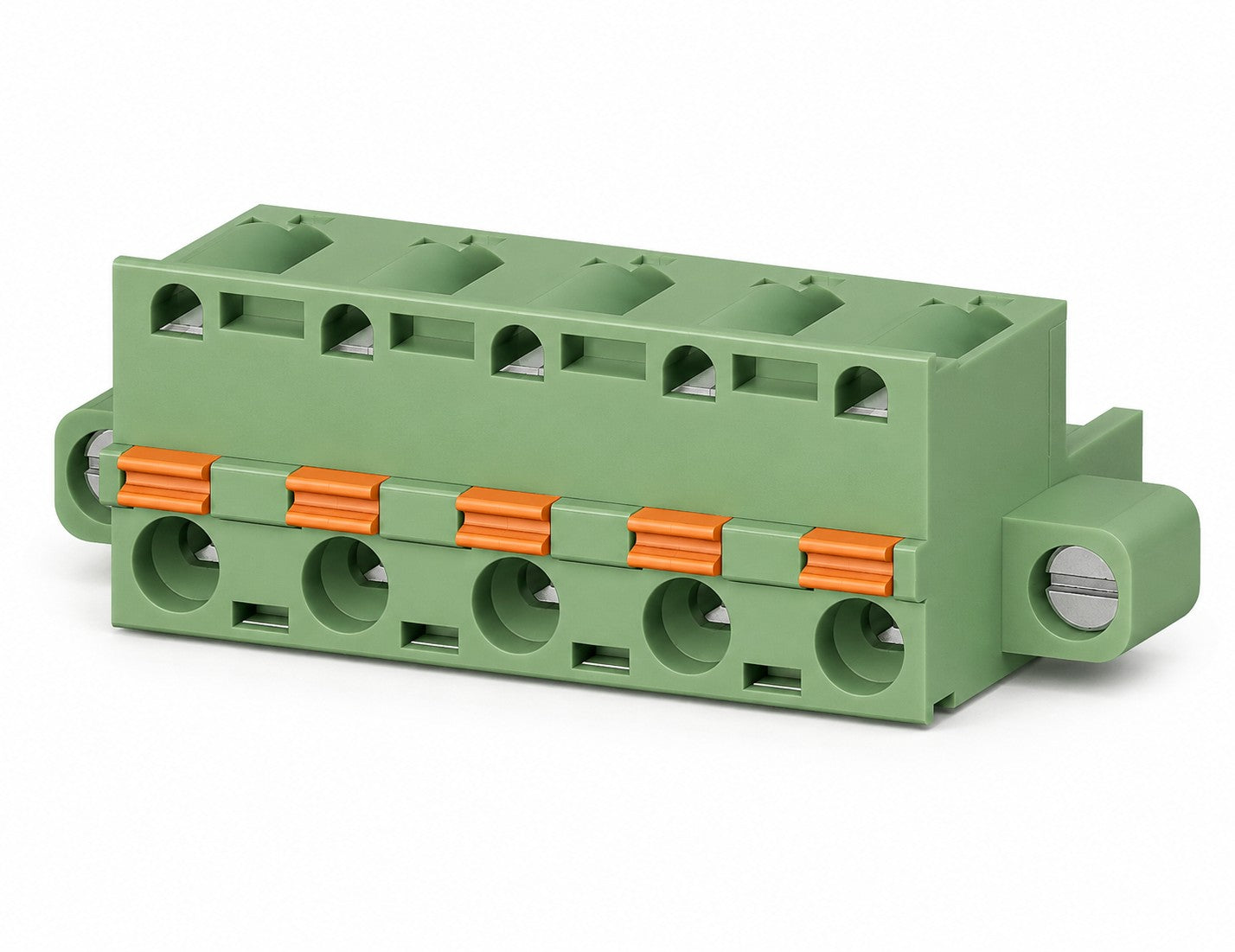

  • EB462AM SERIES Screwless Pluggable Blocks
  • EB462AM SERIES Push-Button Pluggable Blocks dimensional drawing
1 1

Power

EB462AM Series - Spring - Pluggable - Push-Button - 7.62mm

Request Sample Request 3D File

EB462AM Push-Button Pluggable Block. It has a centerline spacing of 7.62mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It accommodates wire sizes from 12-26AWG. It includes up to 16 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 16

Centerline Spacing 7.62mm Spacing (0.300")

Electrical

Voltage Rating 300 VAC

Current Rating 10 Amps

Wire Range Min / Max 12-26AWG

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Insulator Body Material: Polyamide, UL 94V-0

Contact Clip Material: PhBz (CuSn), Tin Plated

Mounting Flange Screw: M2.5, Steel, Zinc Plated, "+/-" Slot Type

Terminal Lever: Polyamide, UL 94V-0, Orange

Wire Retention Spring: Stainless Steel

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
