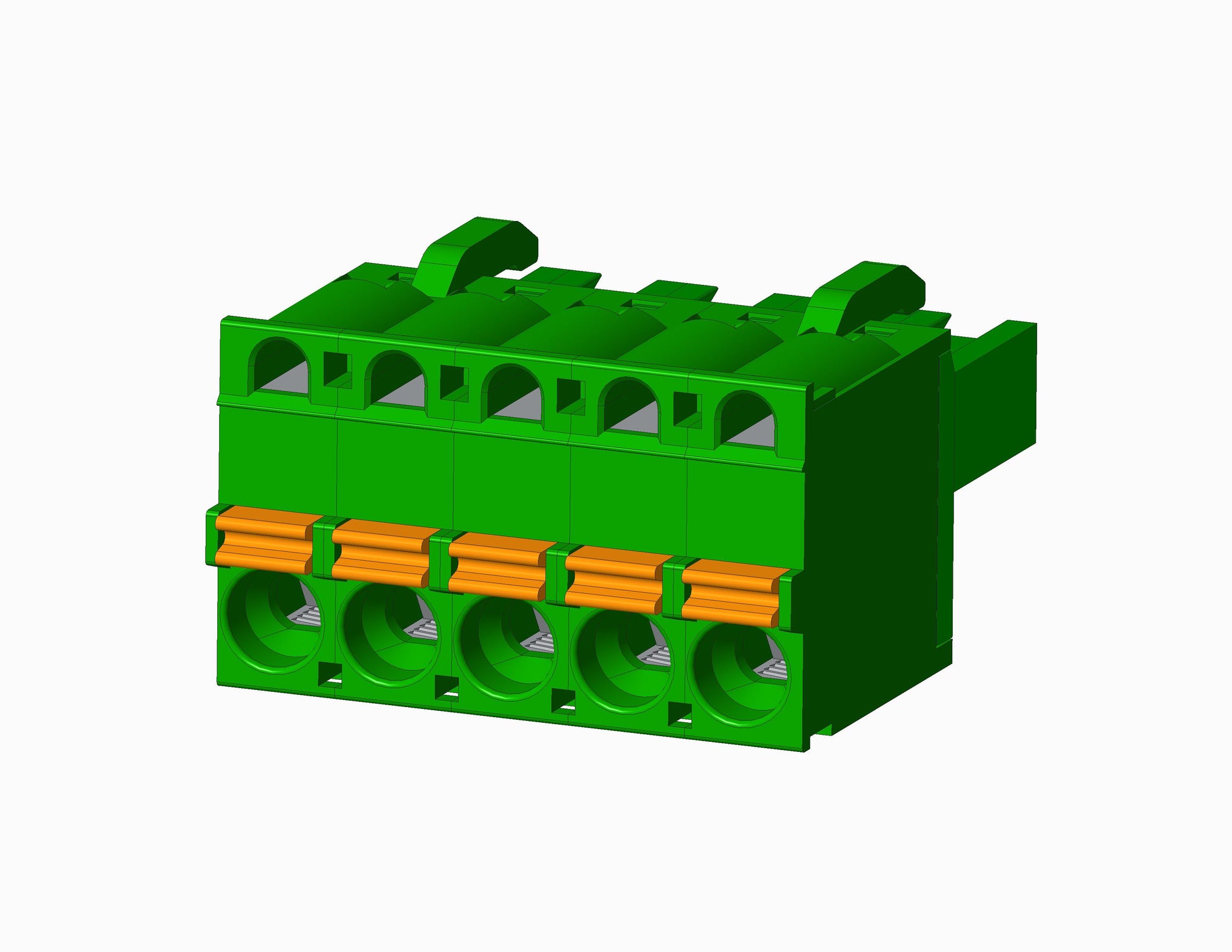

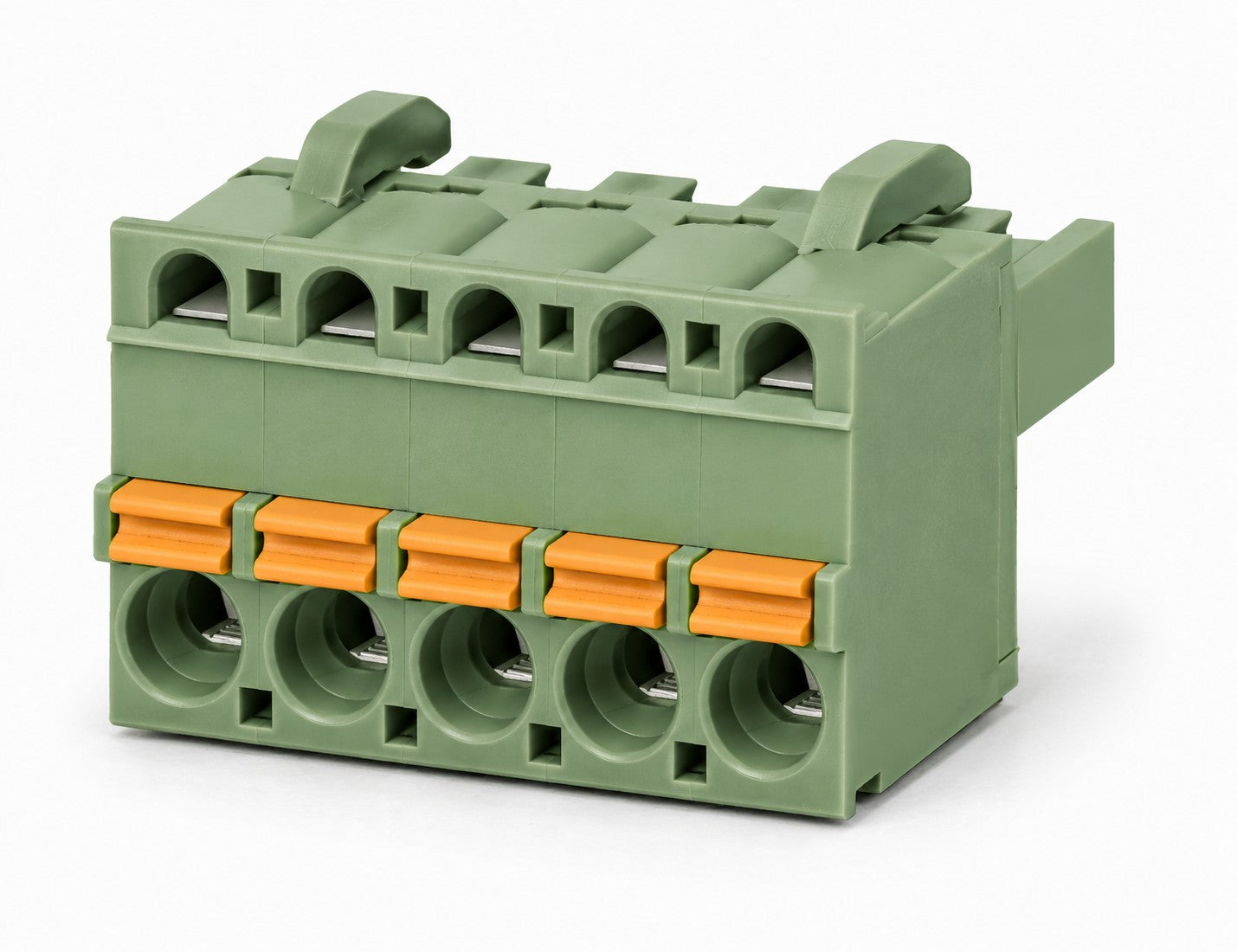

Name: EB460B-XX-500 SERIES Push-Button Pluggable Blocks
Brand: ebyelectro
Availability: InStock

Euro Style Terminal Blocks > Spring > Pluggable > Push-Button > Standard (5mm-5.08mm) > EB460B-XX-500

Approvals

1 1

Standard

EB460B-XX-500 Series - Spring - Pluggable - Push-Button - 5.0mm

Request Sample Request 3D File

EB460B-XX-500 Push-Button Pluggable Block. It has a centerline spacing of 5.0mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It accommodates wire sizes from 12-26AWG. It includes up to 24 positions. The housing is constructed from Polyamide, UL 94V-0. Feature: Mating end on back side..

Maximum number of positions 24

Centerline Spacing 5.00mm Spacing (0.197")

Electrical

Voltage Rating 300 VAC

Current Rating 10 Amps

Wire Range Min / Max 12-26AWG

Mechanical

Torque YES

Soldering Temperatures YES

Material

Insulator Body Material: Polyamide, UL 94V-0

Contact Clip Material: PhBz (CuZn)

Color: Green

Product Notes

Other colors and options available - please inquire.

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
