Name: EB4604 SERIES Tool Required Blocks
Brand: ebyelectro
Availability: InStock

Euro Style Terminal Blocks > Spring > Direct Solder > Tool Required > Compact (3.5mm-4.57mm) > EB4604

Approvals

1 1

Compact

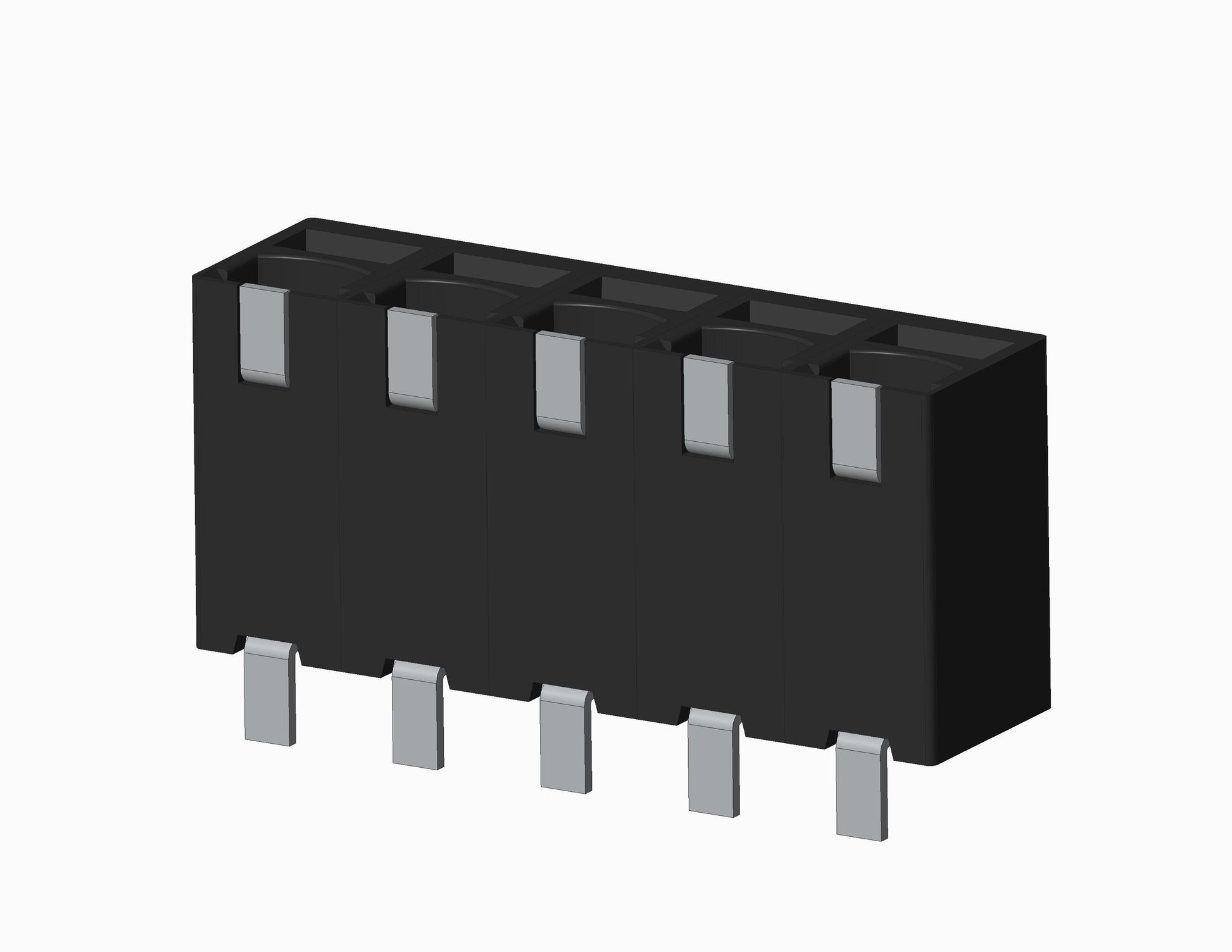

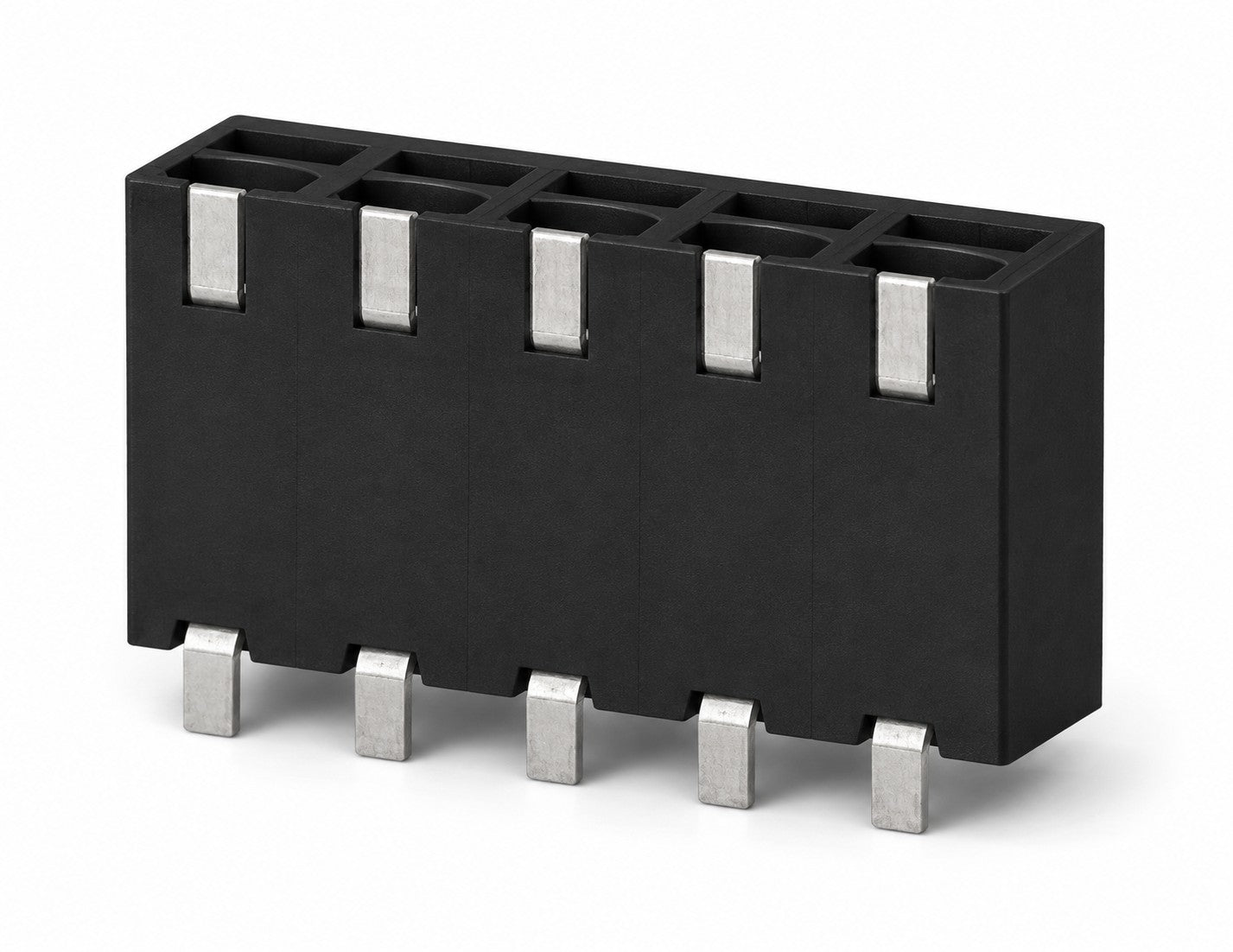

EB4604 Series - Spring - Direct Solder - Tool Required - 4.0mm

Request Sample Request 3D File

EB4604 Tool Required Pluggable Blocks. It has a centerline spacing of 4.0mm. The voltage rating is 300 VAC. The current rating is 9 Amps. It accommodates wire sizes from 18-22AWG. It includes up to 1 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from LCP, UL94V-0. Feature: Low Profile, Surface Mount Block.

Maximum number of positions 1

Centerline Spacing 4.00mm Spacing (0.157")

Electrical

Voltage Rating 300 VAC

Current Rating 9 Amps

Wire Range Min / Max 18-22AWG

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material: LCP, UL94V-0

Contact Solder Pin Material: a) PhBz, Matte Tin Plated (hi-temp) b) Brass, Matte Tin Plated (hi-temp)

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Request a Sample and 3D file: Product: EB4604 Series - Spring Direct Solder - Tool Required (4.0mm)
