Name: EB4601 SERIES Tool Required Blocks
Brand: ebyelectro
Availability: InStock

Euro Style Terminal Blocks > Spring > Direct Solder > Tool Required > Micro (2.5mm-2.54mm) > EB4601

Approvals

1 1

Micro

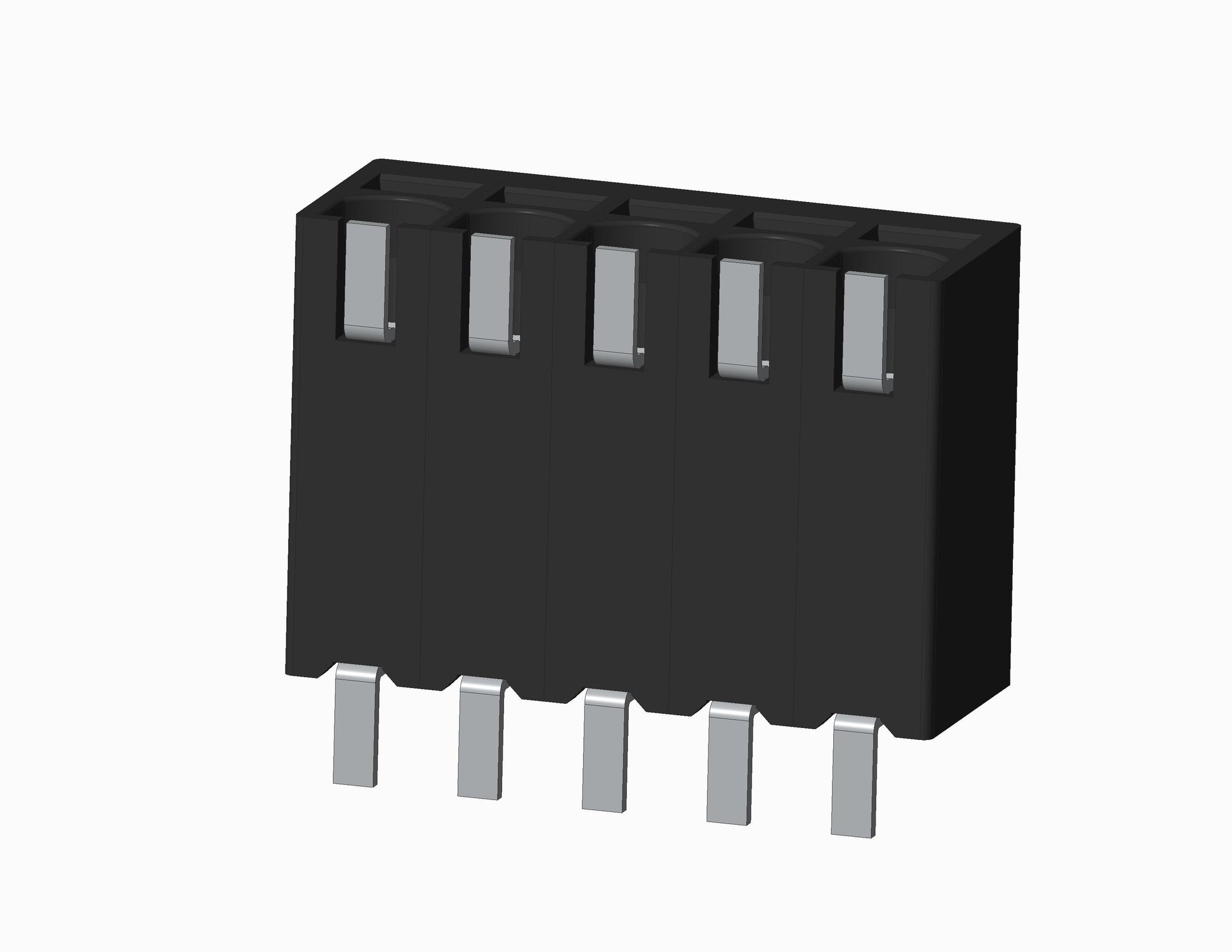

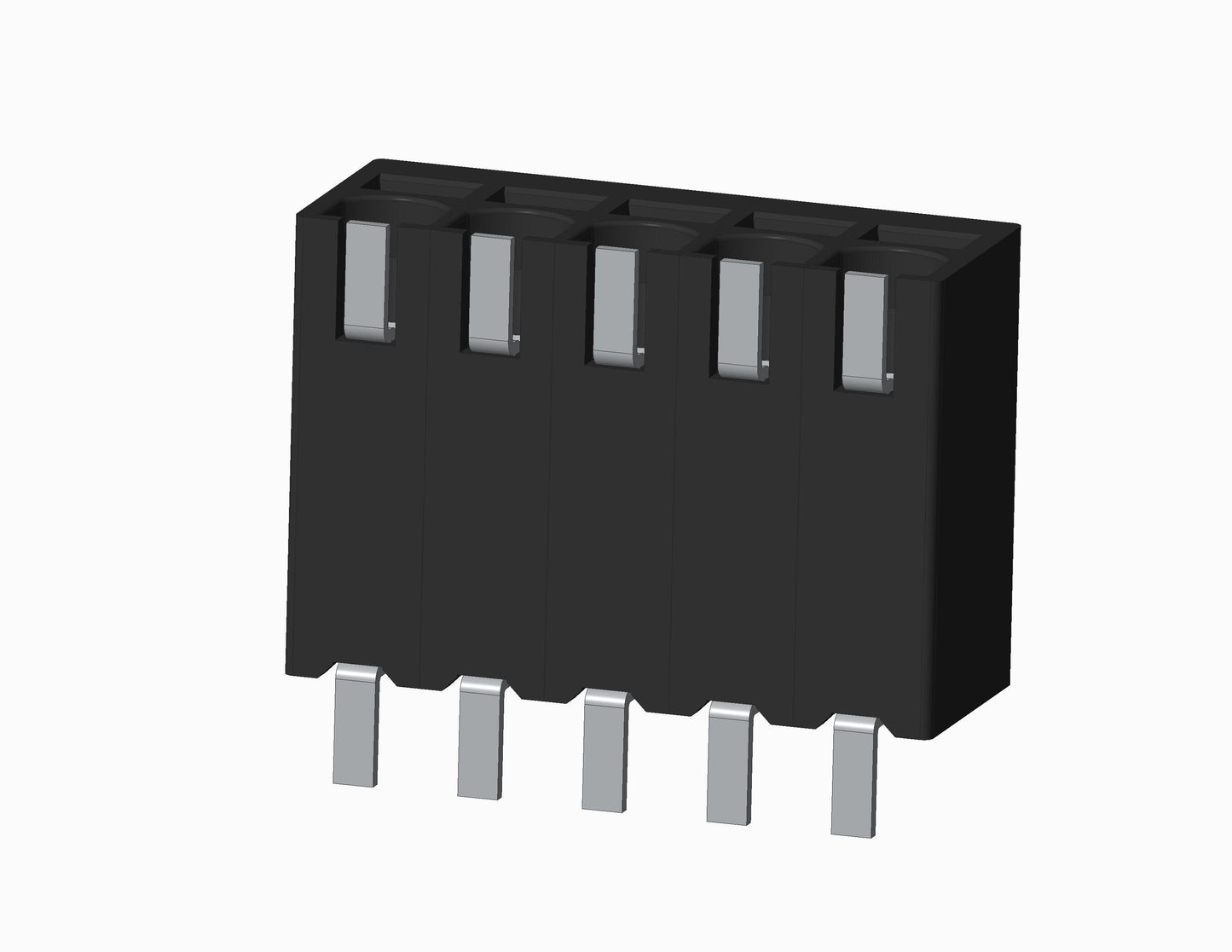

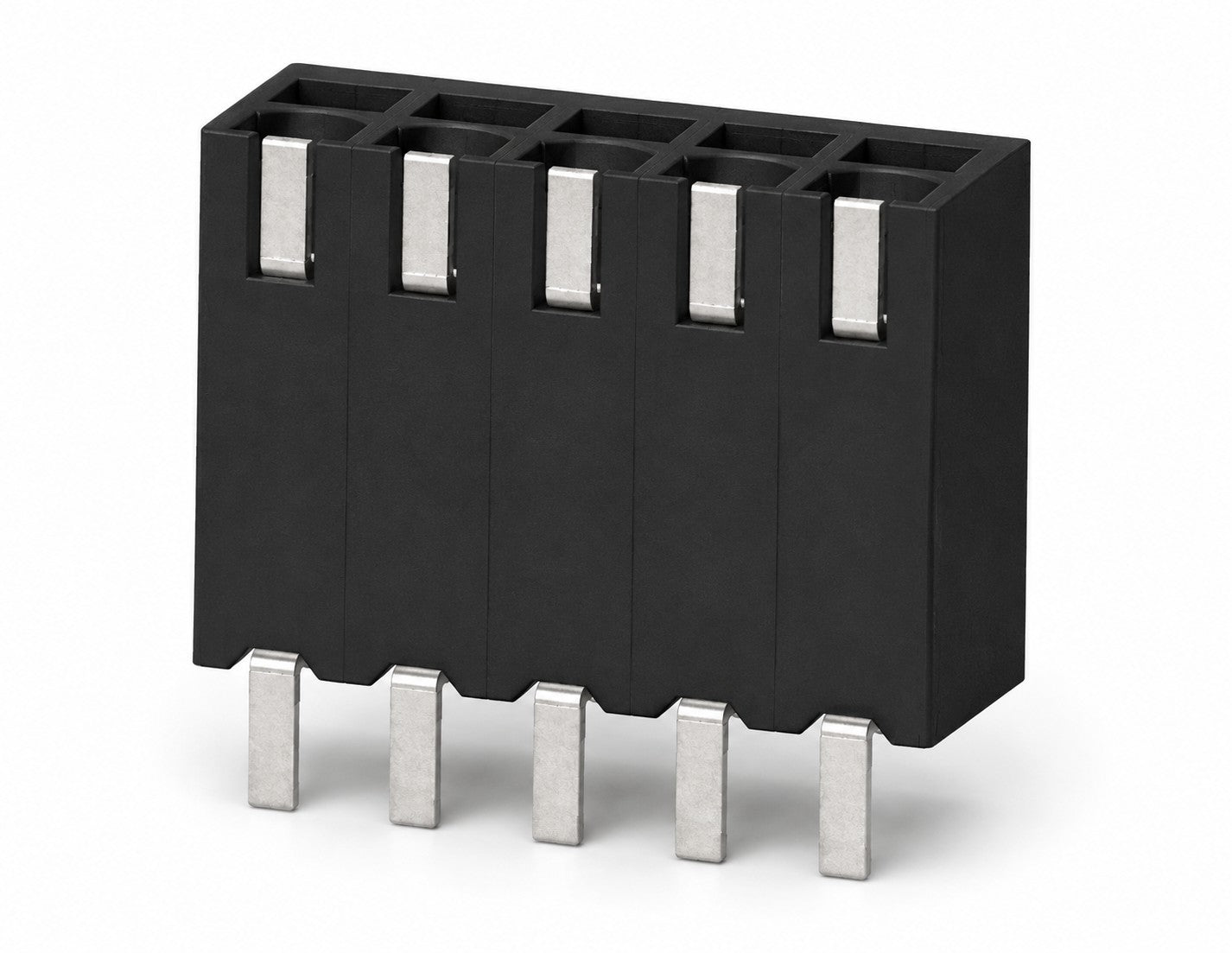

EB4601 Series - Spring - Direct Solder - Tool Required - 2.5mm

Request Sample Request 3D File

EB4601 Tool Required Pluggable Blocks. It has a centerline spacing of 2.5mm. The voltage rating is 150 VAC. The current rating is 5 Amps. It accommodates wire sizes from 18-26AWG. It includes up to 20 positions. The soldering temperature is 280°C, 536°F for 5 seconds Max. The contact block is made of Short: Brass, Tin Plated Long: PhBz, Tin Plated. The housing is constructed from Polyamide, UL 94V-0, High Temp. Feature: Surface Mount.

Maximum number of positions 20

Centerline Spacing 2.50mm Spacing (0.098")

Electrical

Voltage Rating 150 VAC

Current Rating 5 Amps

Wire Range Min / Max 18-26AWG

Mechanical

Torque

Soldering Temperatures 280°C, 536°F for 5 seconds Max

Material

Insulator Body Material: Polyamide, UL 94V-0, High Temp

Contact Block Material: Short: Brass, Tin Plated Long: PhBz, Tin Plated

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
