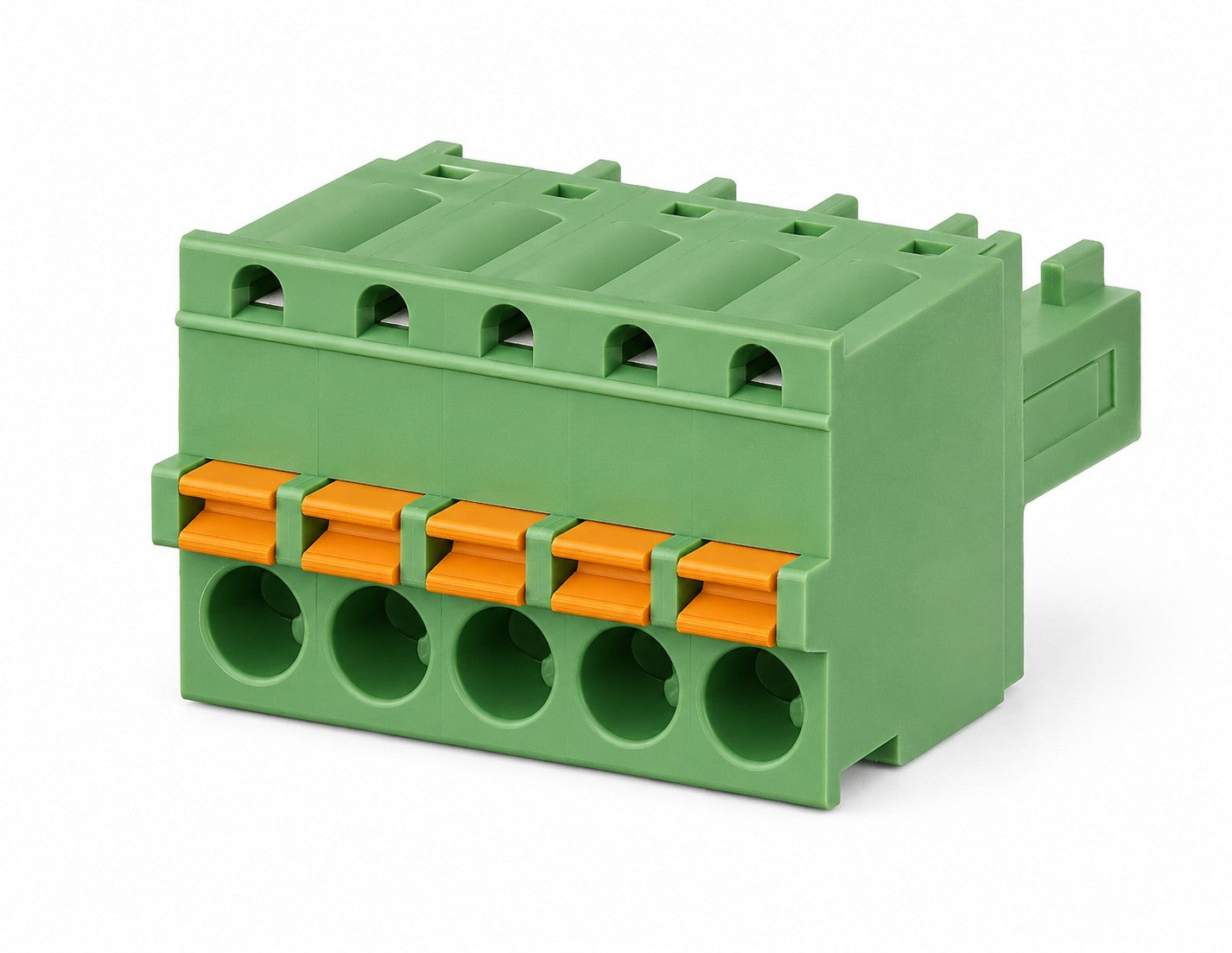

  • EB452 SERIES Screwless Pluggable Blocks

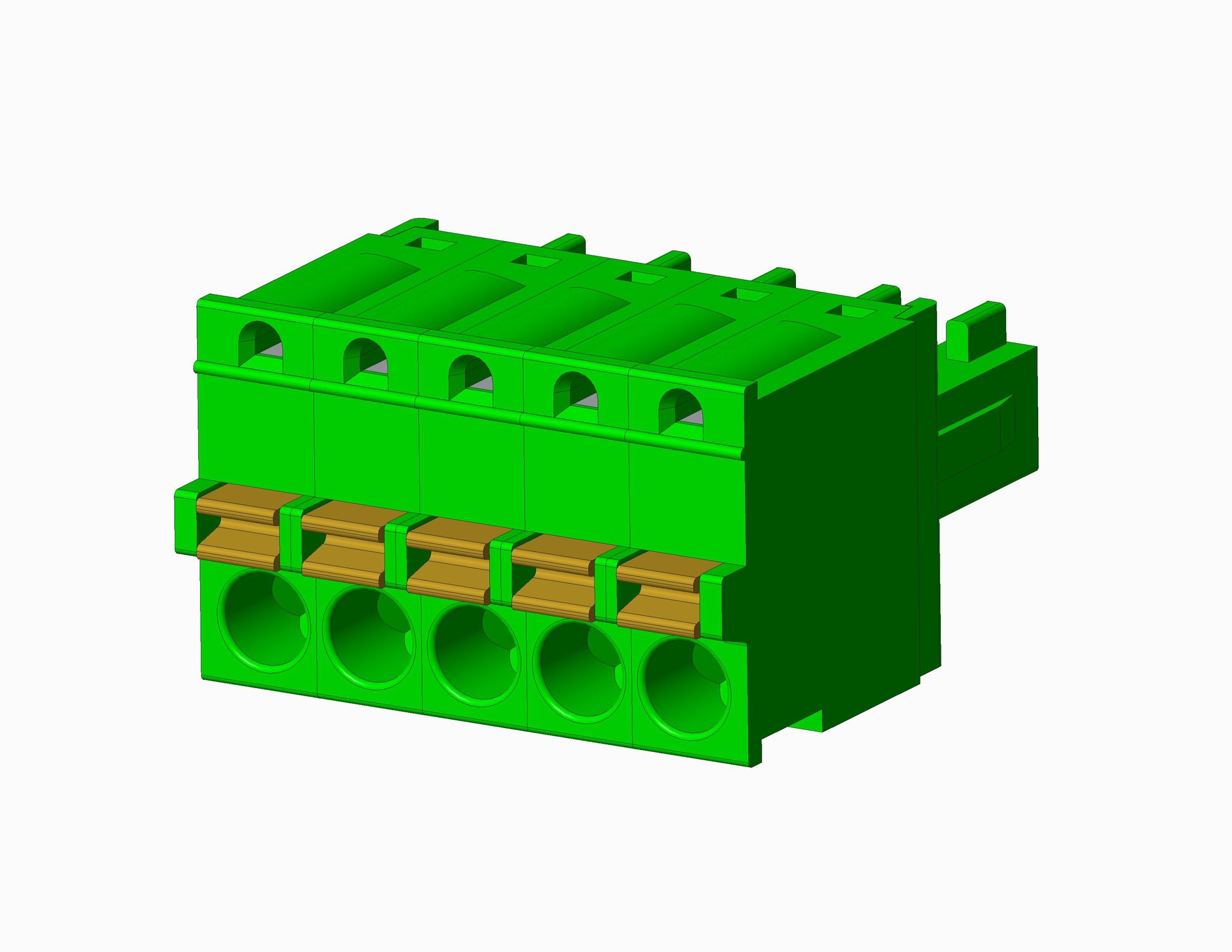

  • EB452 SERIES Push-Button Pluggable Blocks dimensional drawing
1 1

Compact

EB452 Series - Spring - Pluggable - Push-Button - 3.81mm

Request Sample Request 3D File

EB452 Push-Button Pluggable Block. It has a centerline spacing of 3.81mm. The voltage rating is 300 VAC. The current rating is 8 Amps. It accommodates wire sizes from 14-28AWG. It includes up to 24 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The contact block is made of Brass, Tin Plated. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 24

Centerline Spacing 3.81mm Spacing (0.150")

Electrical

Voltage Rating 300 VAC

Current Rating 8 Amps

Wire Range Min / Max 14-28AWG

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material Polyamide, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring Stainless Steel

Terminal Screw Size

Terminal Screw Material

Contact Block Material Brass, Tin Plated

Contact Solder Pin Material

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color

Cover
