Name: EB451M
Brand: ebyelectro
Availability: OutOfStock

Euro Style Terminal Blocks > Spring > Pluggable > Push Button > Compact (3.5mm-4mm) > EB451M

Approvals

1 1

Compact

EB451M Series - Spring - Pluggable - Push Button - 3.5mm

Request Sample Request 3D File

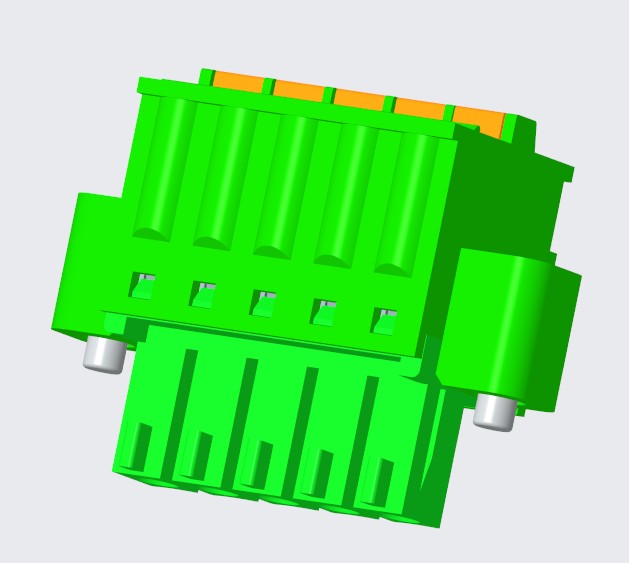

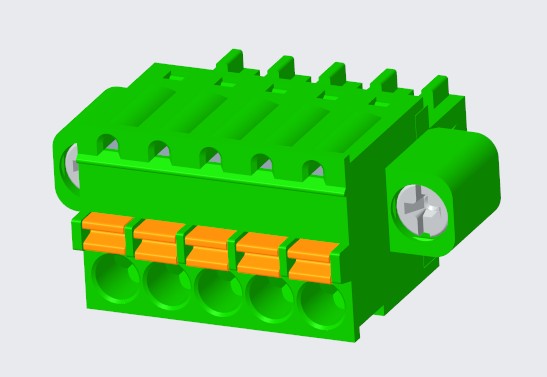

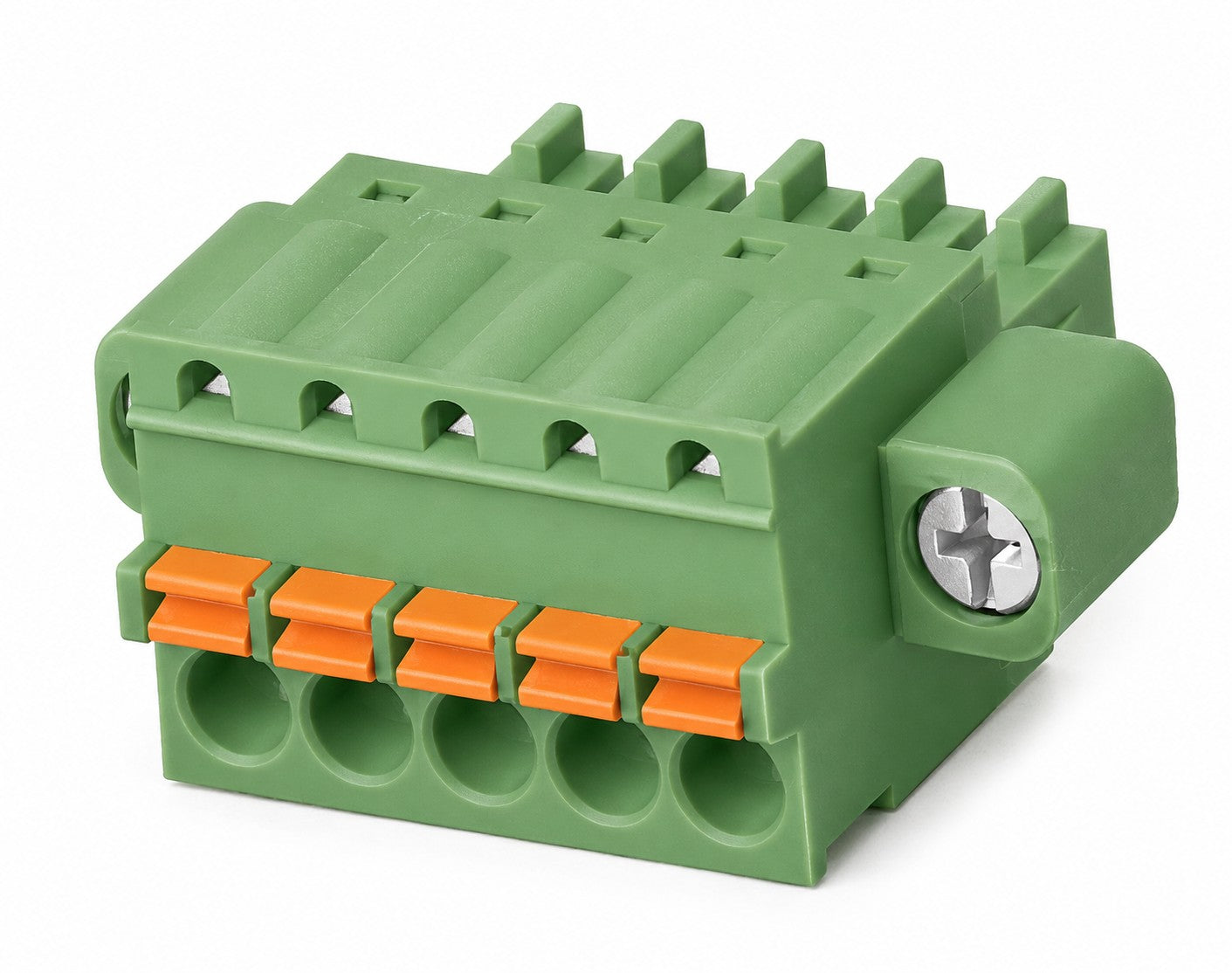

EB451M Spring Pluggable Push Button is a spring-type pluggable connector with wire entry and button in the same plane, designed for connections. It has a centerline spacing of 3.5 mm. The voltage rating is 300 VAC, and the current rating is 8 Amps. It accommodates wire sizes from 16–28 AWG and includes up to 24 positions. The soldering temperature is 260°C for 5 seconds. The insulator body is made of polyamide. The flange screw size is M3.0 and the wire retention spring is stainless steel.

Maximum number of positions 24

Centerline Spacing 3.50mm Spacing (0.138")

Electrical

Voltage Rating: 300 VAC

Current Rating: 8

Wire Range Min / Max: 16-28AWG

Material

Insulator Body Material: Polyamide

Contact Clip Material: PhBz, Tin Plated

Mounting Flange Screw: Steel, Zinc Plated

Wire Retention Spring: Stainless Steel

Terminal Screw Size: M3.0

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
