Name: EB451 SERIES Push-Button Pluggable Blocks
Brand: ebyelectro
Availability: InStock

Euro Style Terminal Blocks > Spring > Pluggable > Push-Button > Compact (3.5mm-4.57mm) > EB451

Approvals

1 1

Compact

EB451 Series - Spring - Pluggable - Push-Button - 3.5mm

Request Sample Request 3D File

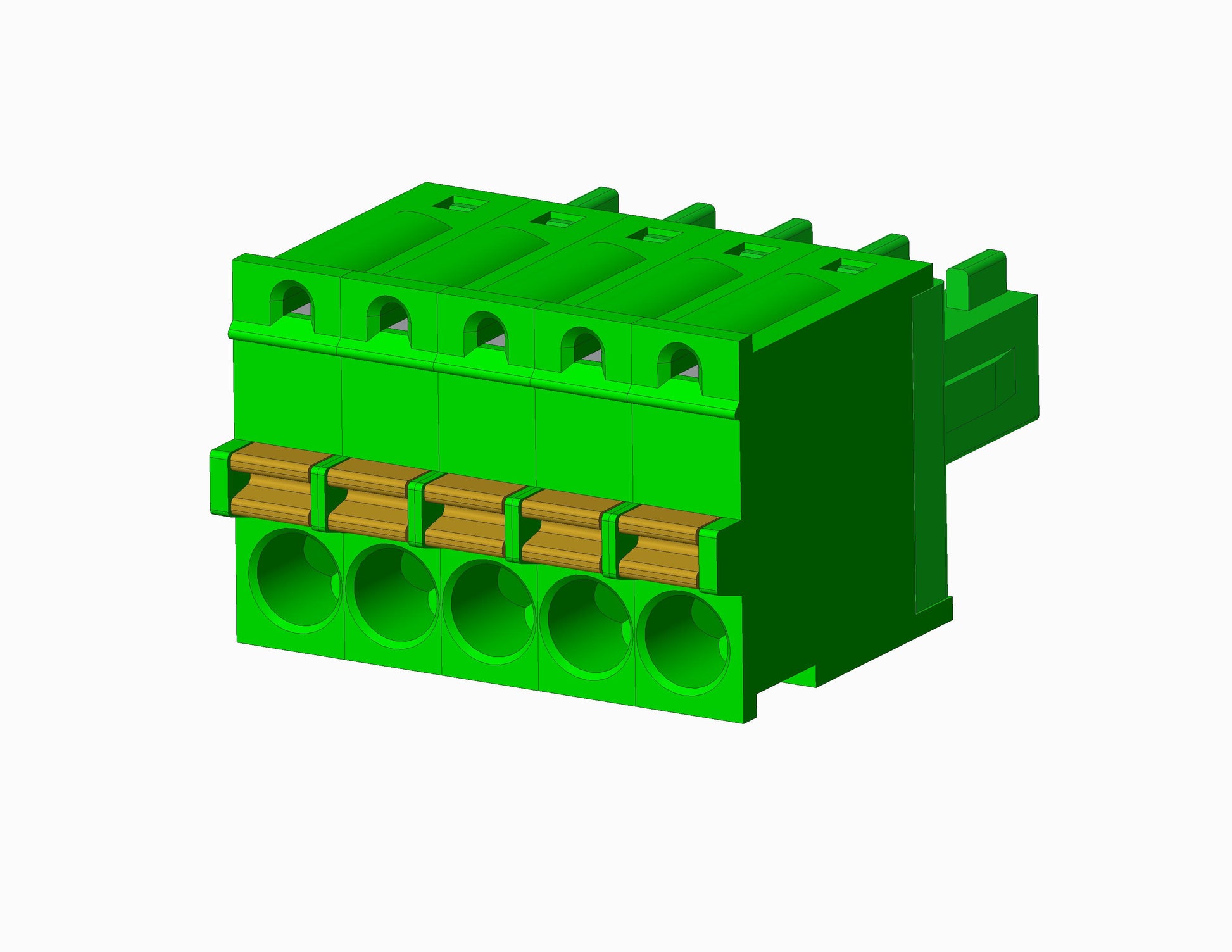

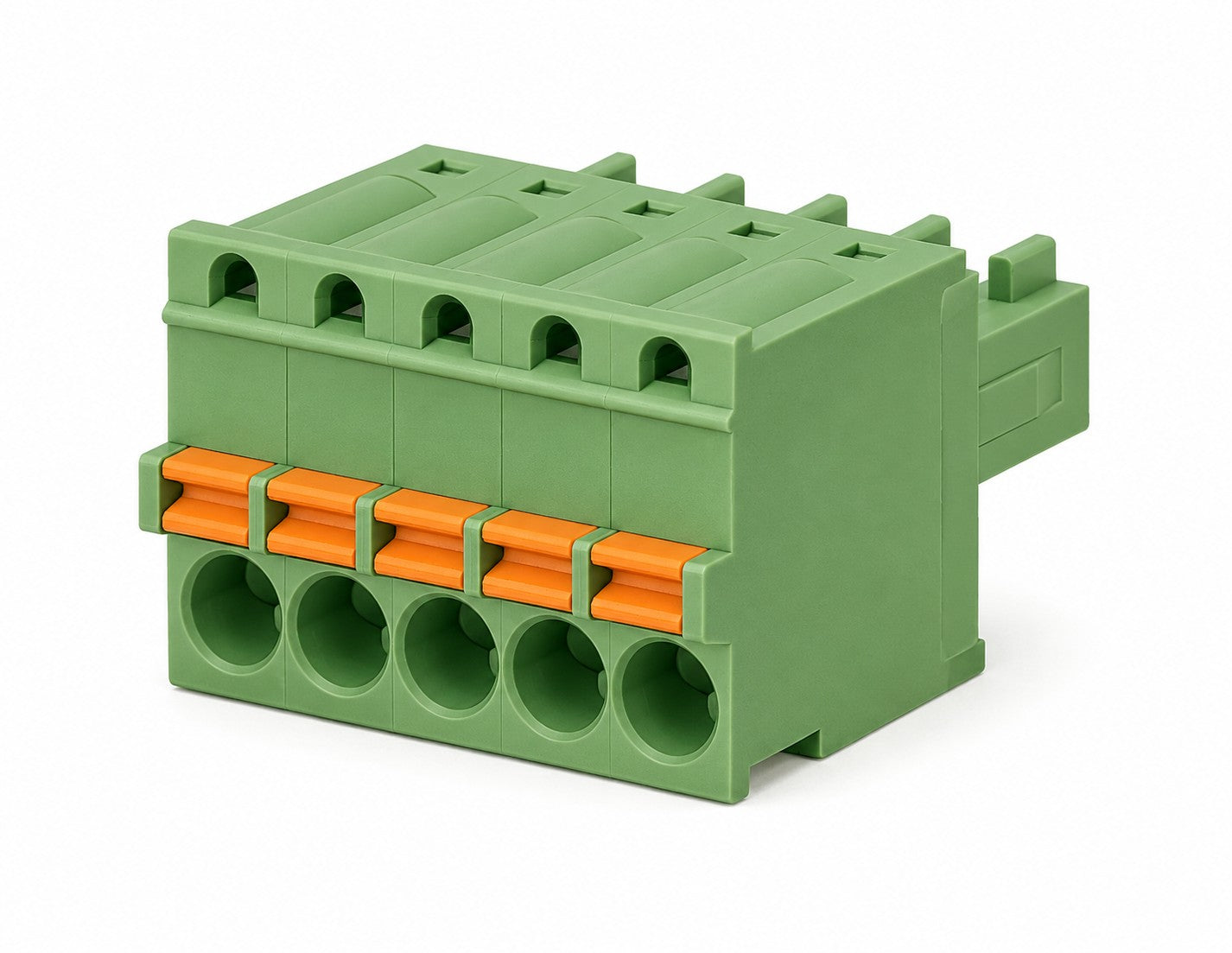

EB451 Push-Button Pluggable Block. It has a centerline spacing of 3.5mm. The voltage rating is 300 VAC. The current rating is 8 Amps. It accommodates wire sizes from 16-28AWG. It includes up to 24 positions. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 24

Centerline Spacing 3.50mm Spacing (0.138")

Electrical

Voltage Rating 300 VAC

Current Rating 8 Amps

Wire Range Min / Max 16-28AWG

Mechanical

Torque YES

Soldering Temperatures YES

Material

Insulator Body Material: Polyamide, UL 94V-0

Contact Clip Material: PhBz, Tin Plated

Wire Retention Spring: Stainless Steel

Color: Green

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
