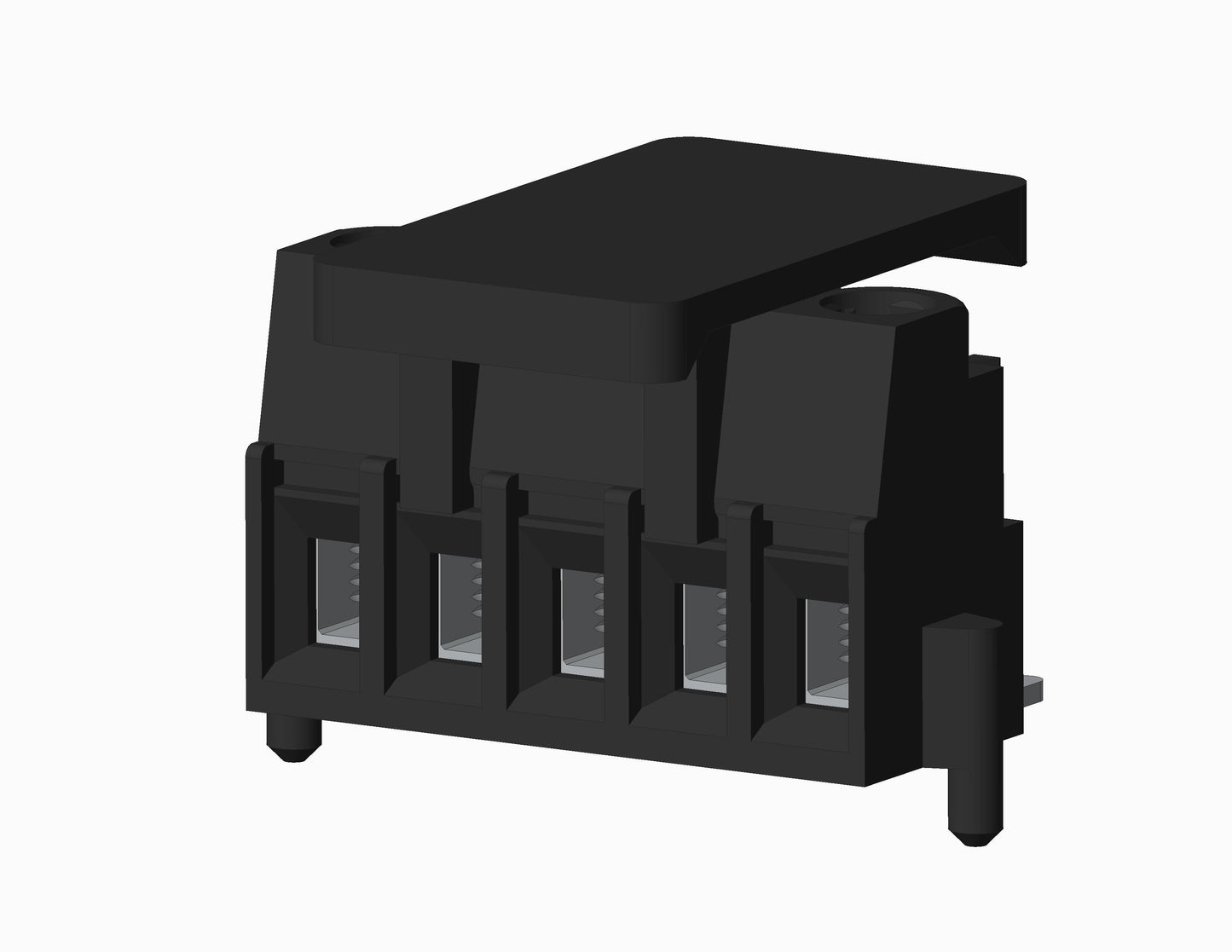

  • EB4500 SERIES Rising Cage Blocks dimensional drawing
1 1

Compact

EB4500 Series - Screw - Direct Solder - Rising Cage - 3.5mm

Request Sample Request 3D File

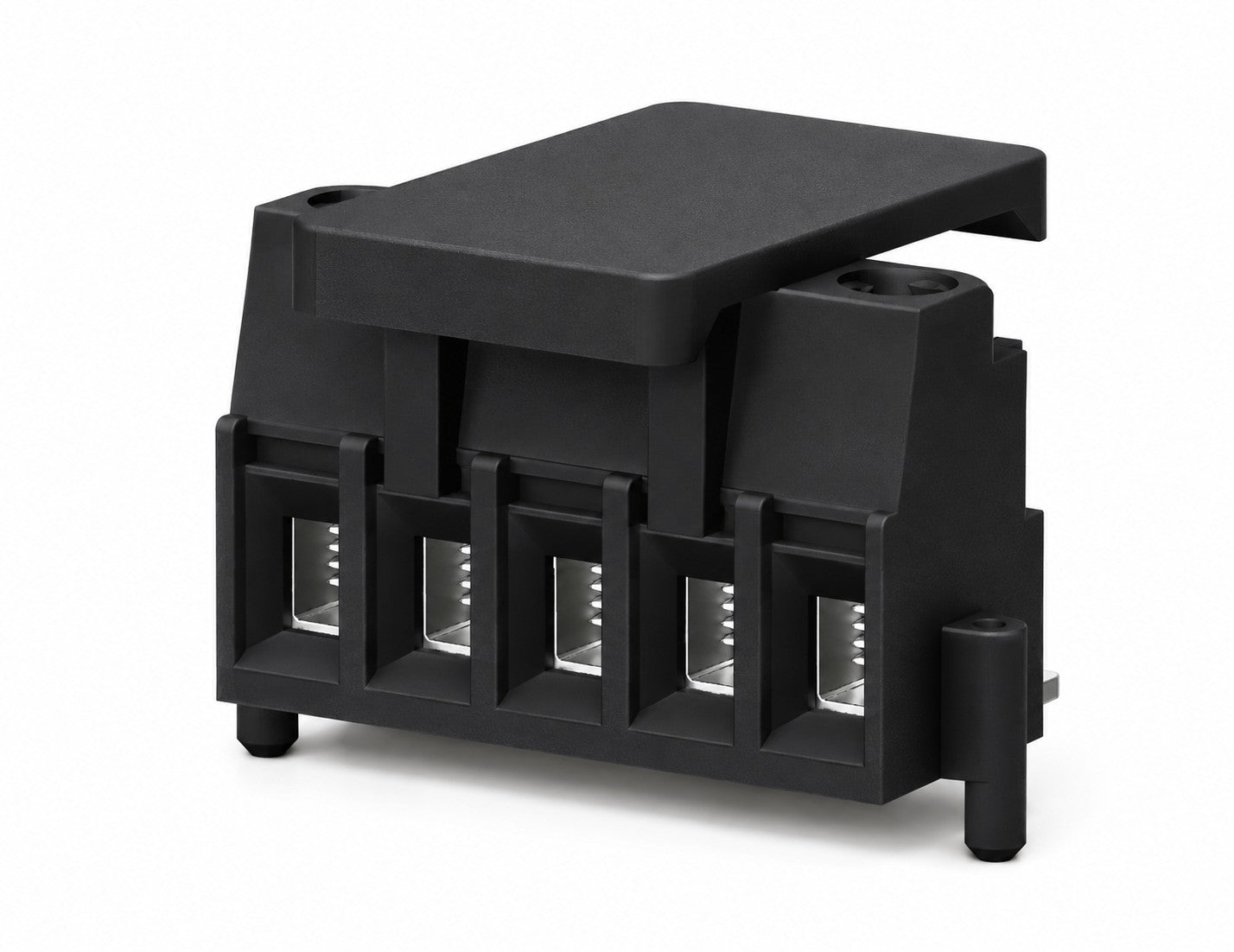

EB4500 Rising Cage Pluggable Blocks. It has a centerline spacing of 3.5mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It accommodates wire sizes from 16-30AWG. It includes up to 16 positions. The torque rating is 3.5 lbs-in. Max. The soldering temperature is 260°C, 500°F for 5 seconds Max. The contact block is made of Brass, Ni Plated. It features a terminal screw made of Steel, Zinc Plated, "-" Slotted. The housing is constructed from LCP, UL94V-0. Feature: High Temp.

Maximum number of positions 16

Centerline Spacing 3.50mm Spacing (0.138")

Electrical

Voltage Rating 300 VAC

Current Rating 10 Amps

Wire Range Min / Max 16-30AWG

Mechanical

Torque 3.5 lbs-in. Max

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material LCP, UL94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size M2.0

Terminal Screw Material Steel, Zinc Plated, "-" Slotted

Contact Block Material Brass, Ni Plated

Contact Solder Pin Material Brass, Tin Plated

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color

Cover

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Request a Sample and 3D file: Product: EB4500 Series - Screw - Direct Solder - Rising Cage (3.5mm)
