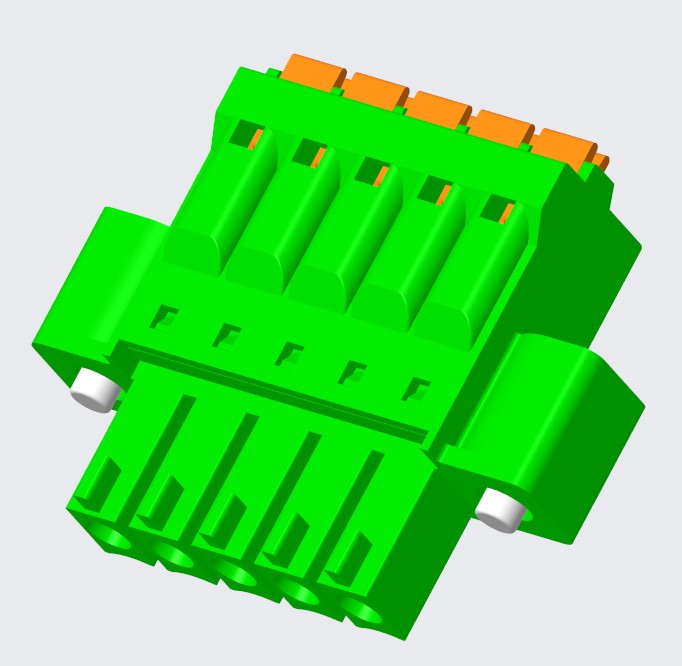

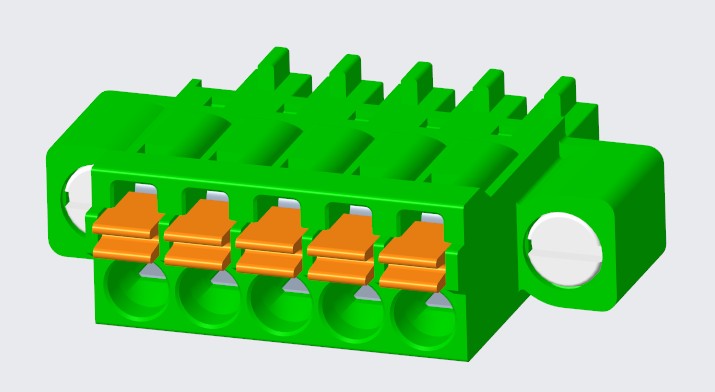

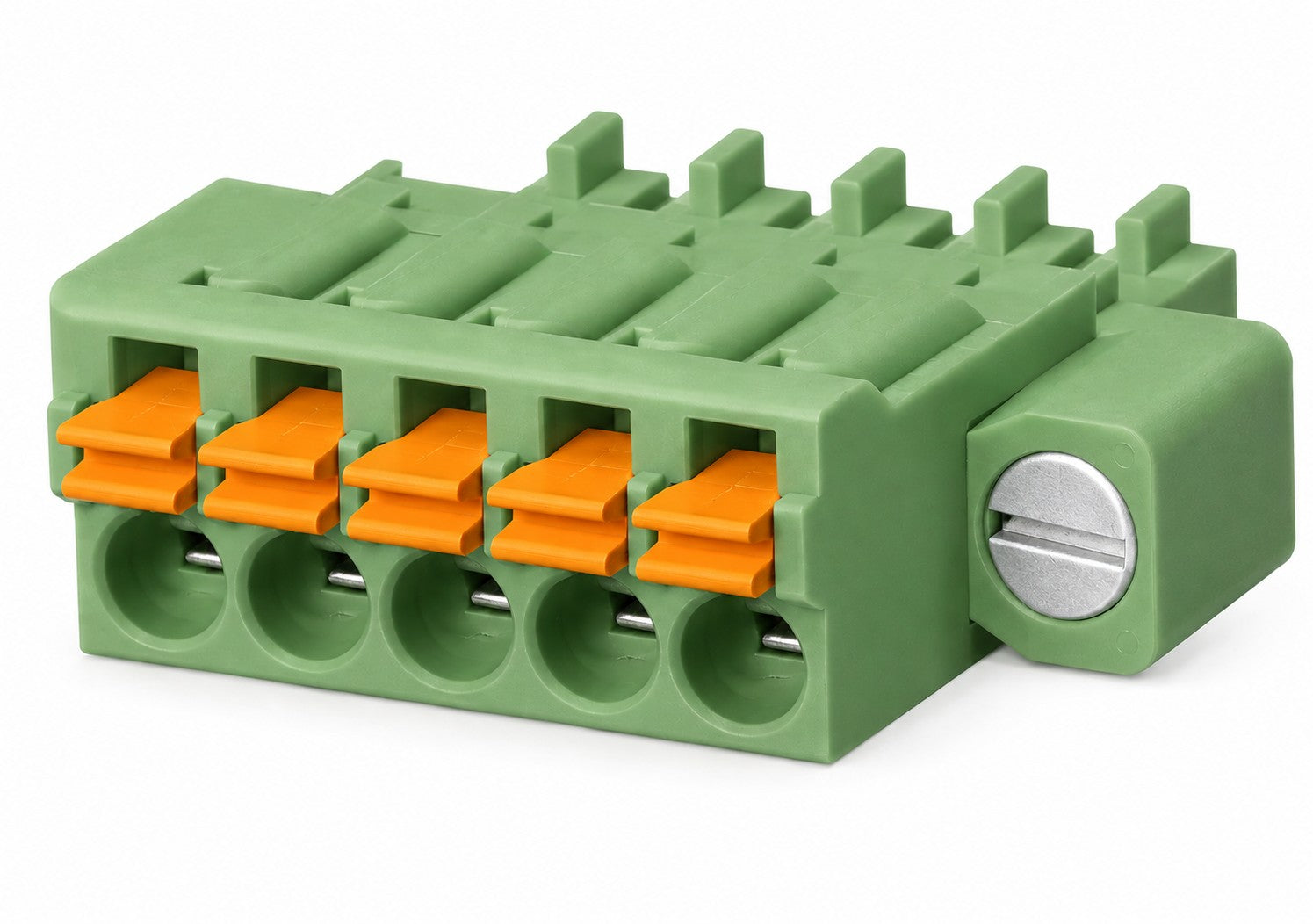

EB445M Spring Pluggable Push Button is a spring-type connector. It has a low-profile design with end mounts. It has a centerline spacing of 3.5 mm. The voltage rating is 160 VAC. The current rating is XX Amps. It accommodates wire sizes from 16–24 AWG. It includes up to 24 positions. The torque rating is 19.0 lbs-in max. The soldering temperature is 260°C (500°F) for 5 seconds maximum. The contact block is made of copper, Ni plated. The mounting flange screw is made of steel, zinc plated. The wire retention spring is made of stainless steel. The housing is constructed from polyamide, UL 94V-0.
