Name: EB435-XX-X00
Brand: ebyelectro
SKU: EB435
Availability: InStock

Euro Style Terminal Blocks > Spring > Pluggable > Push-Button > Compact (3.5mm-4mm) > EB435-XX-X00

Approvals

1 1

Compact

EB435-XX-X00 Series - Spring - Pluggable - Push-Button - 3.5mm

Request Sample Request 3D File

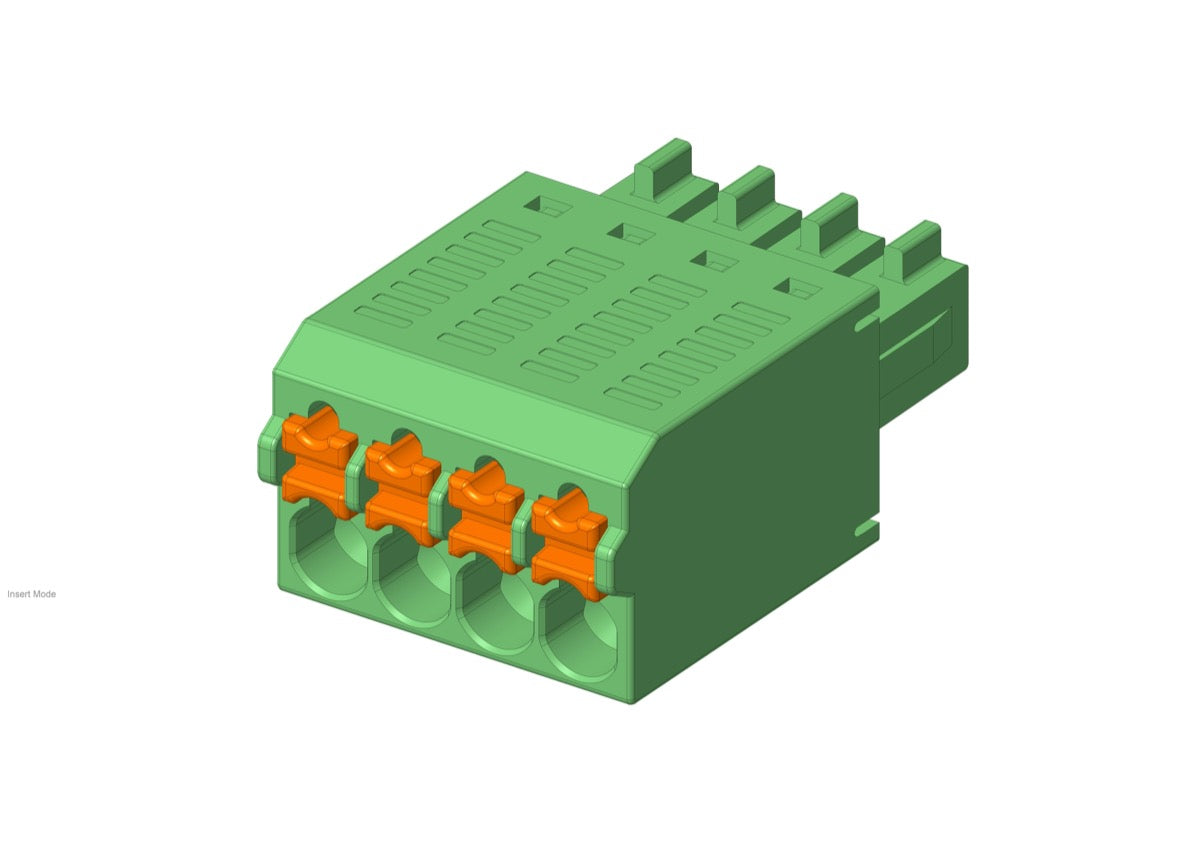

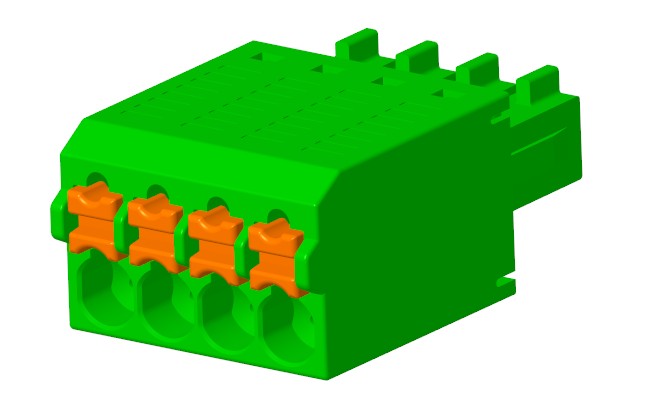

EB435-XX-X00 Spring Pluggable Push Button connector with a unique feature where a stranded wire can be inserted without depressing the lever for fast field terminations. It has a low-profile design. It has a centerline spacing of 3.5 mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It accommodates wire sizes from 16–20 AWG. It includes up to 16 positions. The contact is made of Brass, Tin plated. The wire retention spring is made of stainless steel. The housing is constructed from polyamide, UL 94V-0.

Maximum number of positions 16

Centerline Spacing 3.50mm

Electrical

Voltage Rating: 300 VAC

Current Rating: 10

Wire Range Min / Max: 16-20AWG

Material

Insulator Body Material: PA66

Contact Clip Material: Brass, Tin Plated

Wire Retention Spring: Stainless Steel

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
