Name: EB430 SERIES Push-Button Blocks 3.50mm
Brand: ebyelectro
Availability: InStock

Euro Style Terminal Blocks > Spring > Direct Solder > Push-Button > Compact (3.5mm-4.57mm) > EB430

Approvals

1 1

Compact

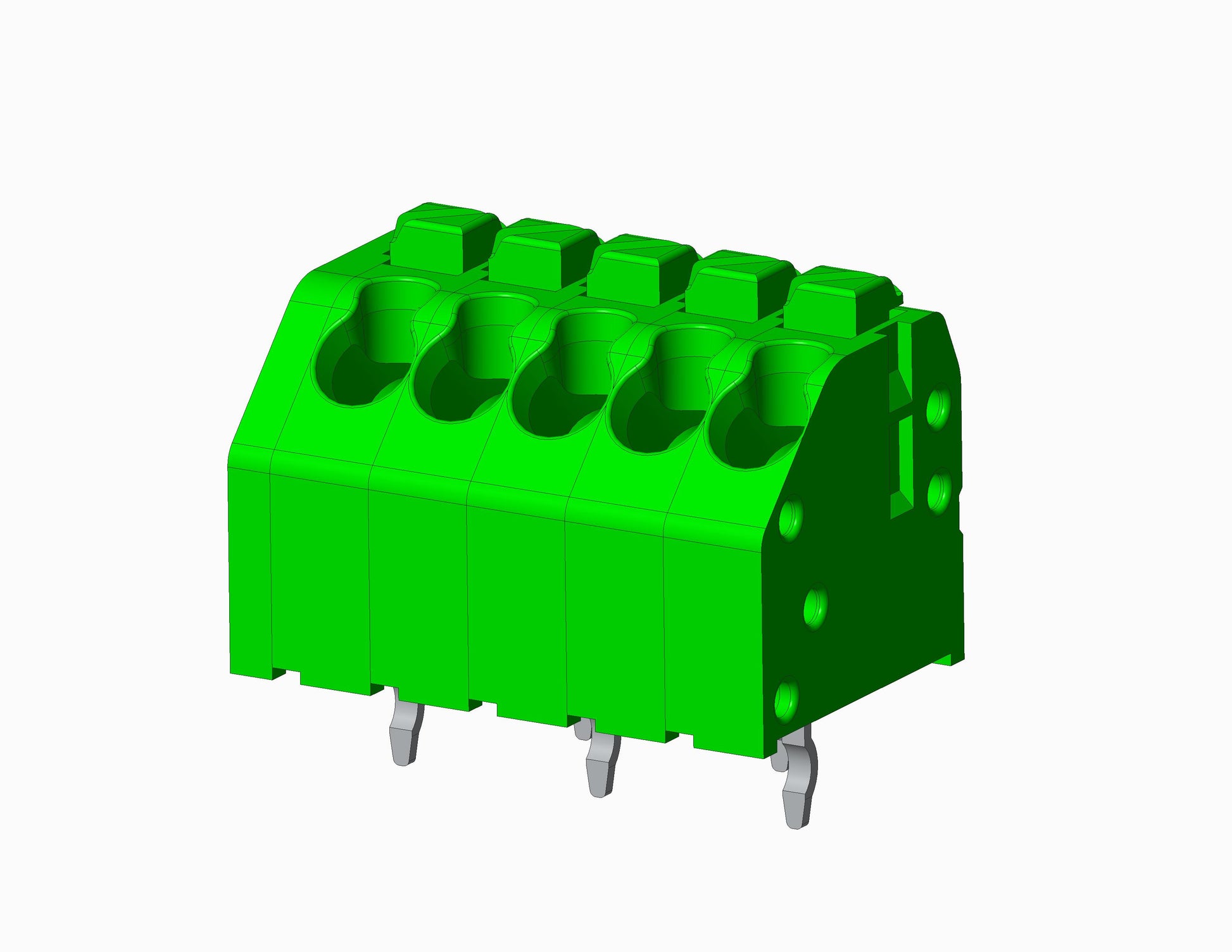

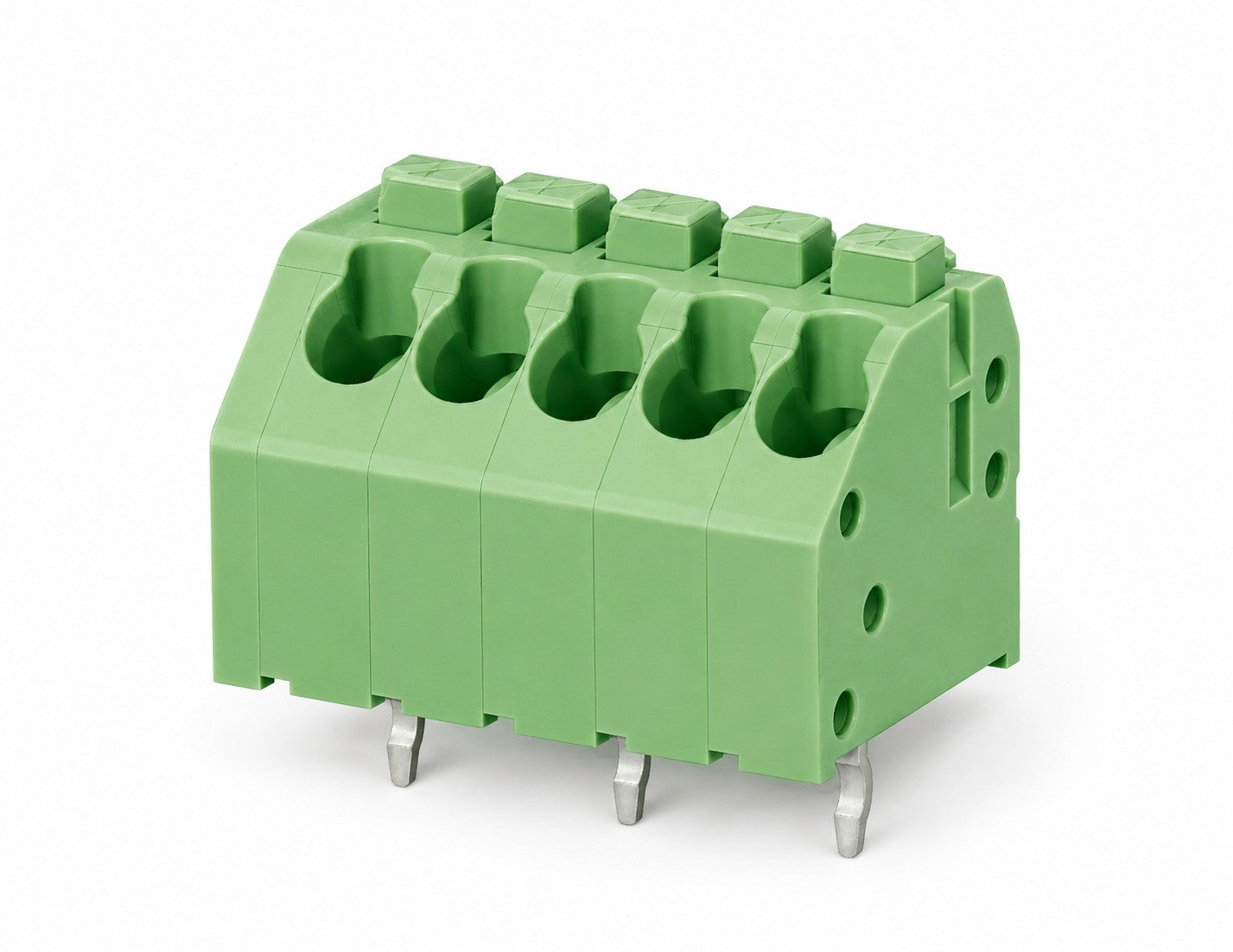

EB430 Series - Spring - Direct Solder - Push-Button - 3.5mm

Request Sample Request 3D File

EB430 Push-Button Blocks 3.50mm Pluggable Blocks. It has a centerline spacing of 3.5mm. The voltage rating is 300 VAC. The current rating is 6 Amps. It accommodates wire sizes from 16-22AWG. It includes up to 24 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The contact block is made of Brass, Tin Plated. The housing is constructed from Polyamide, UL 94V-0. Feature: Push Button and Variable Pin Alignments.

Maximum number of positions 24

Centerline Spacing 3.50mm Spacing (0.138")

Electrical

Voltage Rating 300 VAC

Current Rating 6 Amps

Wire Range Min / Max 16-22AWG

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material: Polyamide, UL 94V-0

Contact Block Material: Brass, Tin Plated

Contact Solder Pin Material: Brass, Tin Plated

Color: Please See PDF

Product Notes

Different Pitches are achieved through the use of 2.5mm & 3.5mm plastic spacers

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
