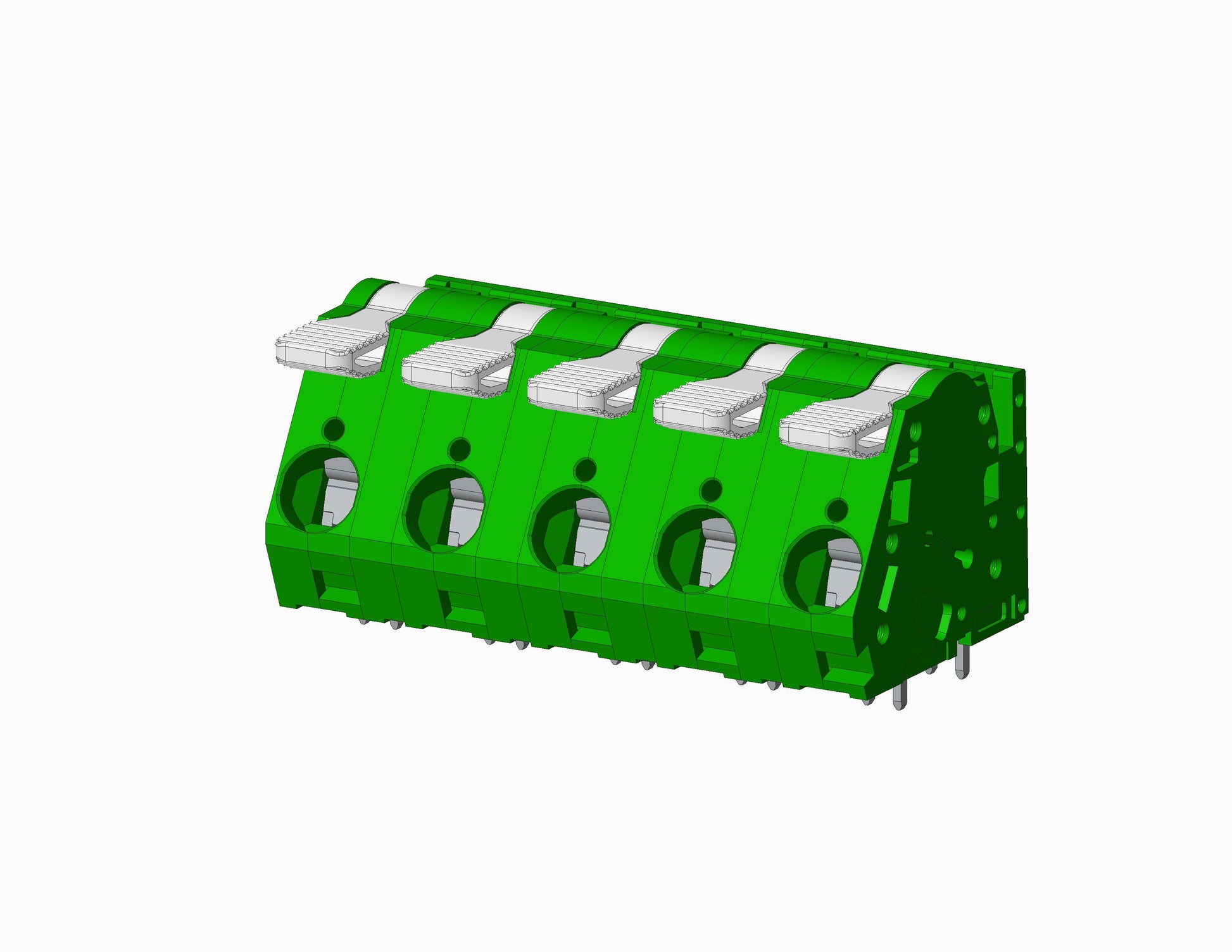

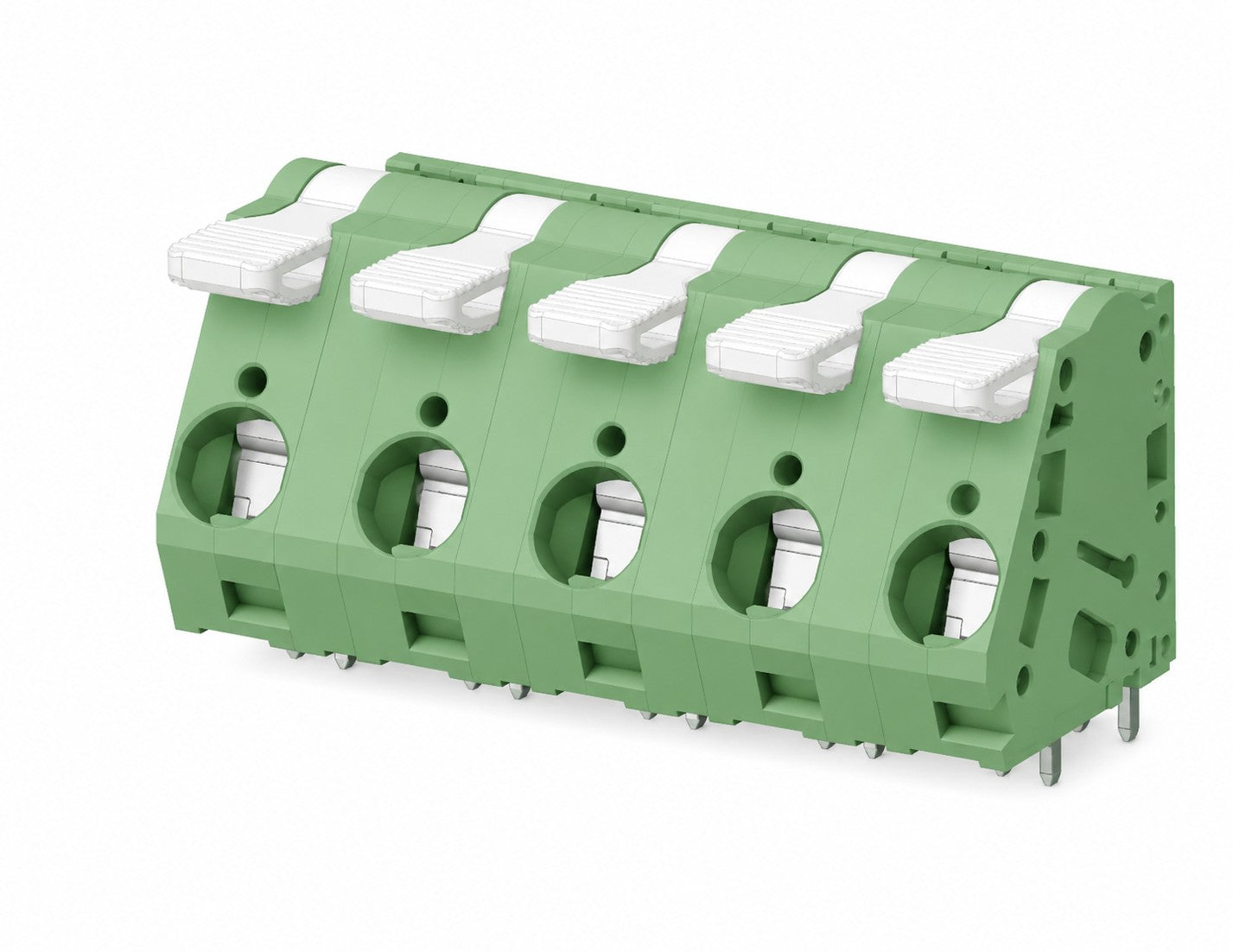

Name: EB4220-XX-X00 SERIES Lever Blocks
Brand: ebyelectro
Availability: InStock

Euro Style Terminal Blocks > Spring > Direct Solder > Lever > Power (6mm-20mm) > EB4220-XX-X00

Approvals

1 1

Power

EB4220-XX-X00 Series - Spring - Direct Solder - Lever - 10.0mm

Request Sample Request 3D File

EB4220-XX-X00 Spring Direct Solder Lever Blocks. It has a centerline spacing of 10.0mm. The voltage rating is 300 VAC. The current rating is 55 Amps. It accommodates wire sizes from 6-16AWG. It includes up to 12 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The contact block is made of Copper, Matte Tin over Ni Plating. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 12

Centerline Spacing 10.00mm Spacing (0.394")

Electrical

Voltage Rating 300 VAC

Current Rating 55 Amps

Wire Range Min / Max 6-16AWG

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material: Polyamide, UL 94V-0

Wire Retention Spring: Stainless Steel

Contact Block Material: Copper, Matte Tin over Ni Plating

Color: Please See PDF

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
