Name: EB4203V-XX-XX0
Brand: ebyelectro
Availability: OutOfStock

Euro Style Terminal Blocks > Spring > Direct Solder > Lever > Compact (3.5mm-4mm) > EB4203V-XX-XX0

Approvals

1 1

Compact

EB4203V-XX-XX0 Series - Spring - Direct Solder - Lever - 3.5mm

Request Sample Request 3D File

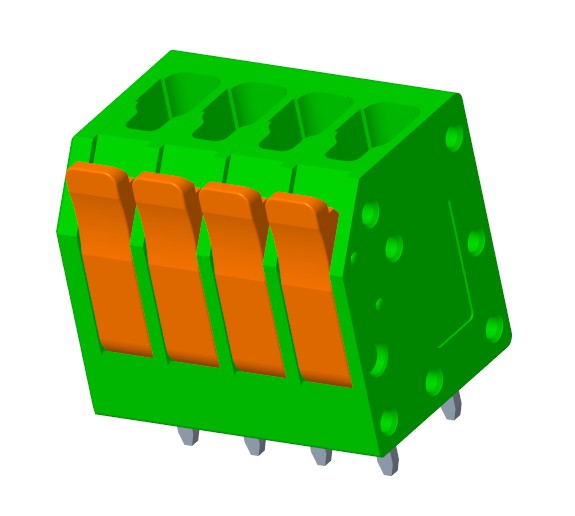

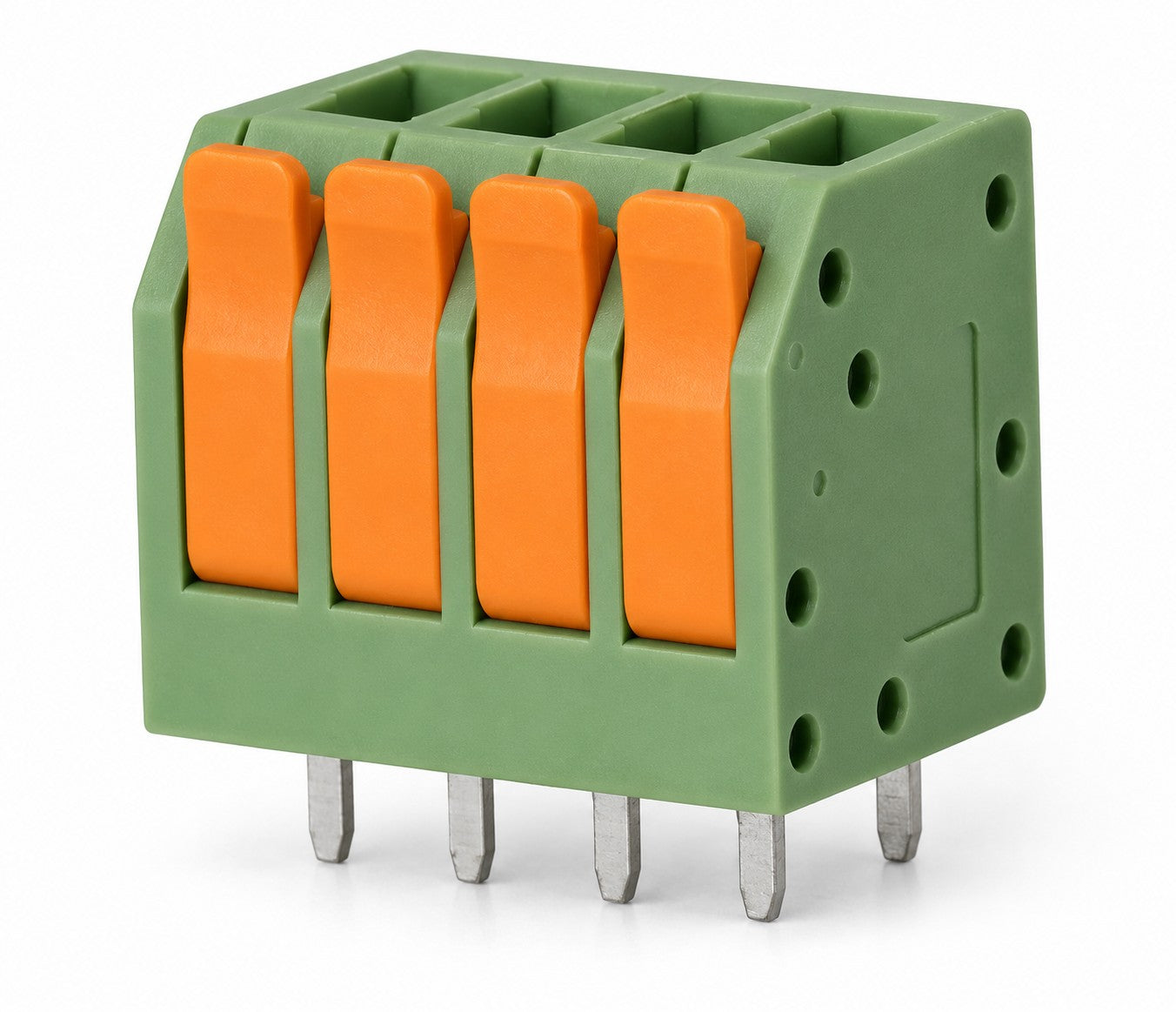

EB4203V-XX-XX0 Spring direct solder lever connector with a top wire entry that is perpendicular to the pcb with a finger friendly lever. It has a low-profile design. It has a centerline spacing of 3.5 mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It accommodates wire sizes from 16–24 AWG. It includes up to 18 positions. The contact is made of Brass, Tin plated. The wire retention spring is made of stainless steel. The housing is constructed from polyamide, UL 94V-0.

Maximum number of positions 18

Centerline Spacing 3.50

Electrical

Voltage Rating: 300

Current Rating: 10

Wire Range Min / Max: 16-24AWG

Material

Insulator Body Material: Polyamide

Wire Retention Spring: Stainless Steel

Contact Solder Pin Material: Brass, Tin Plated

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
