Terminal Blocks >  Spring > Direct Solder > Tool Required > Standard (5mm-5.08mm) > EB411-XX-800
Approvals
cRU US logo cRU US logo

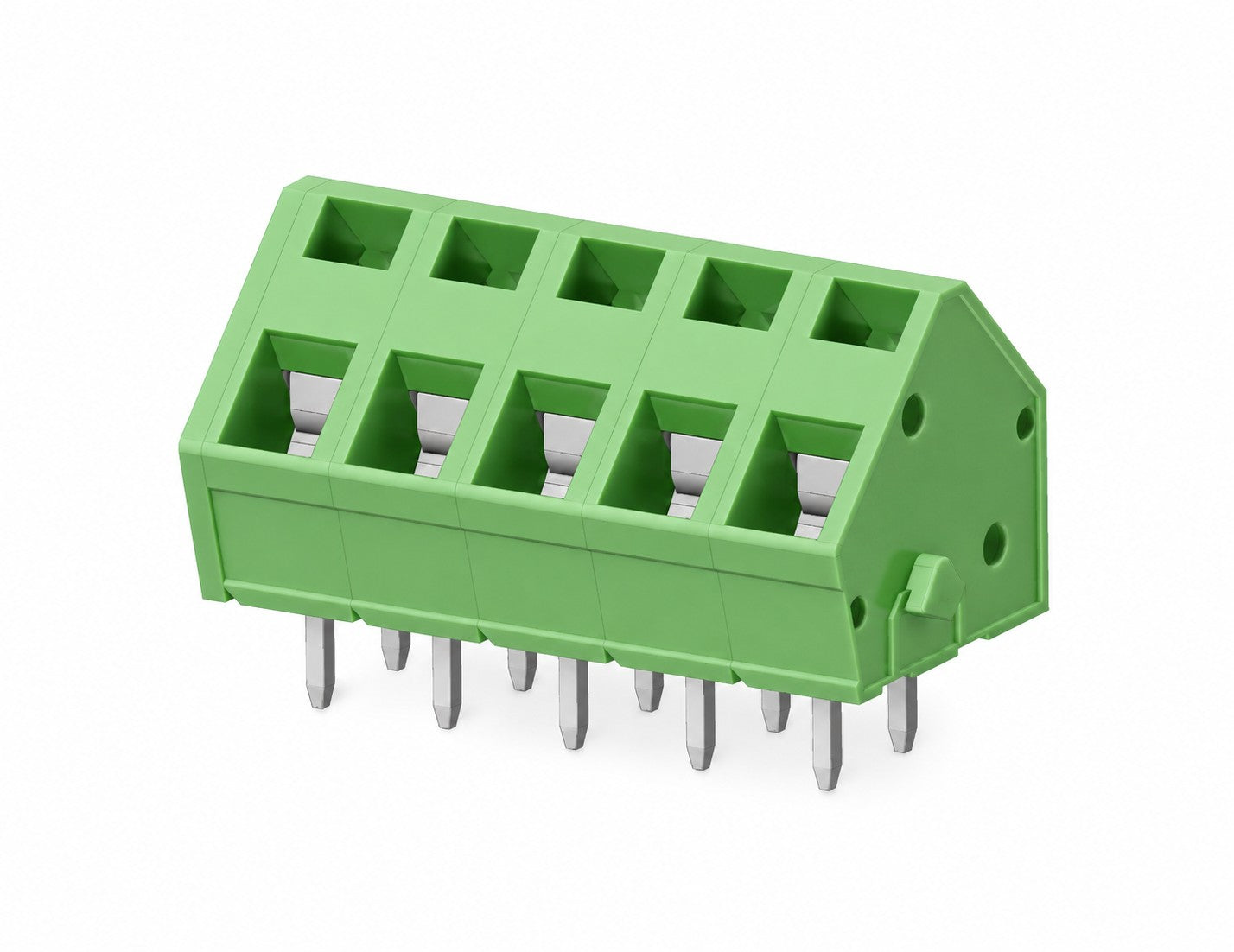

  • EB411-XX-800 SERIES Screwless Blocks

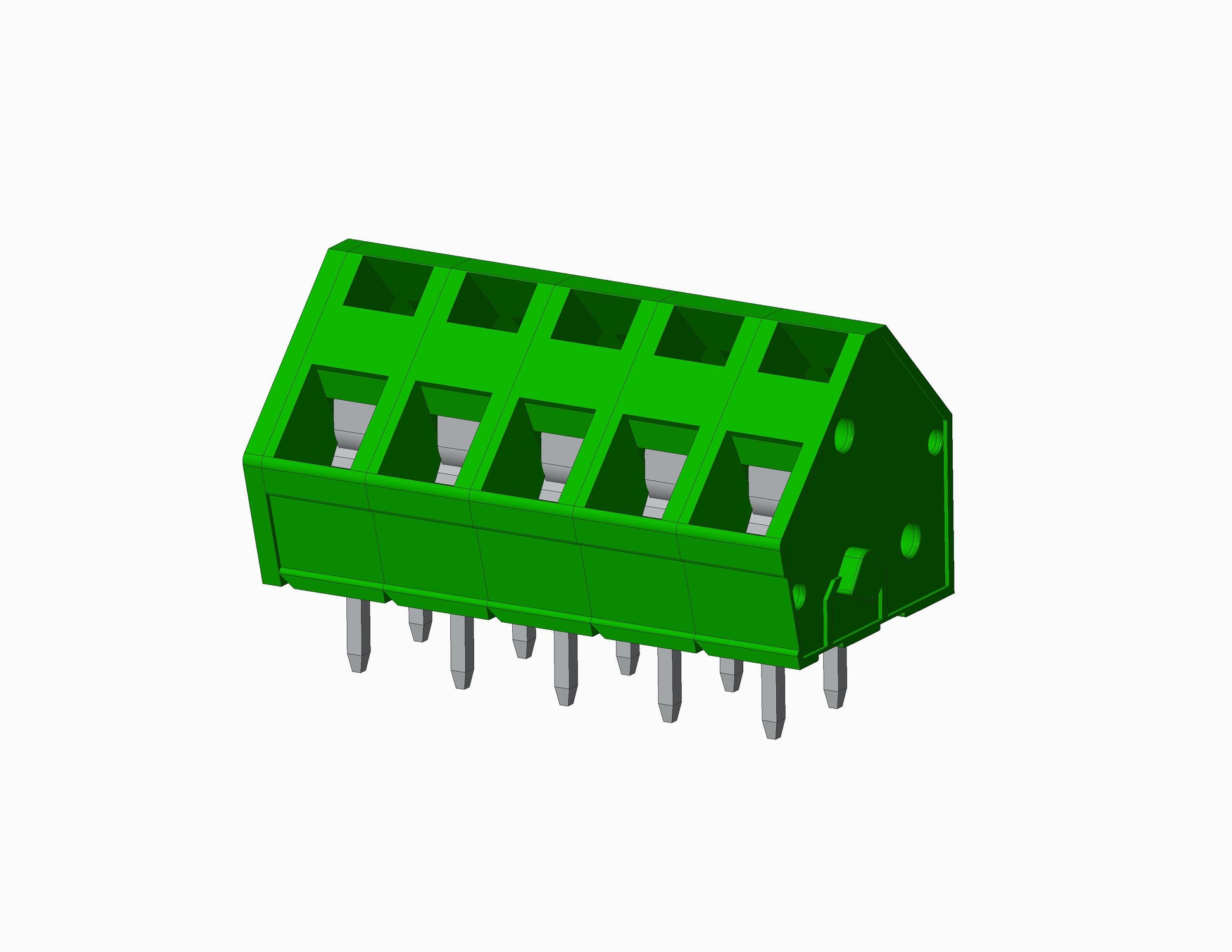

  • EB411-XX-800 SERIES Tool Required Blocks dimensional drawing
1 1

Standard

EB411-XX-800 Series - Spring - Direct Solder - Tool Required - 5.0mm

Request Sample Request 3D File

EB411-XX-800 Tool Required Pluggable Blocks. It has a centerline spacing of 5.0mm. The voltage rating is 300 VAC. The current rating is 15 Amps. It accommodates wire sizes from 12-28AWG. It includes up to 24 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 24

Centerline Spacing 5.00mm Spacing (0.197")

Electrical

Voltage Rating 300 VAC

Current Rating 15 Amps

Wire Range Min / Max 12-28AWG

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material Polyamide, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring Stainless Steel

Terminal Screw Size

Terminal Screw Material

Contact Block Material

Contact Solder Pin Material Brass, Tin Plated

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color Gray

Cover

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Request a Sample and 3D file: Product: EB411-XX-800 Series - Spring - Direct Solder - Tool Required (5.0mm)
