Name: EB408-XX-803 SERIES Tool Required Blocks
Brand: ebyelectro
Availability: InStock

Euro Style Terminal Blocks > Spring > Direct Solder > Tool Required > Power (6mm-20mm) > EB408-XX-803

Approvals

1 1

Power

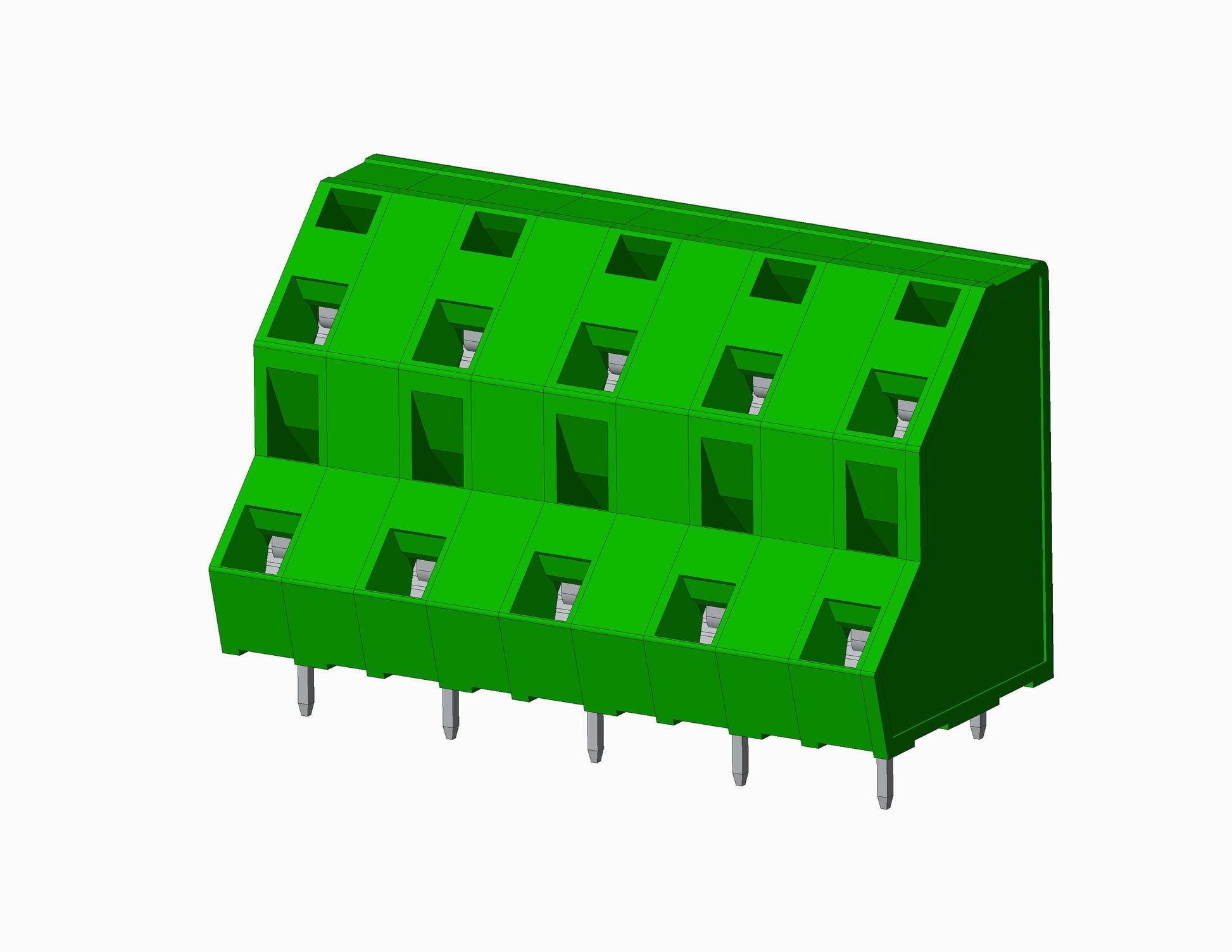

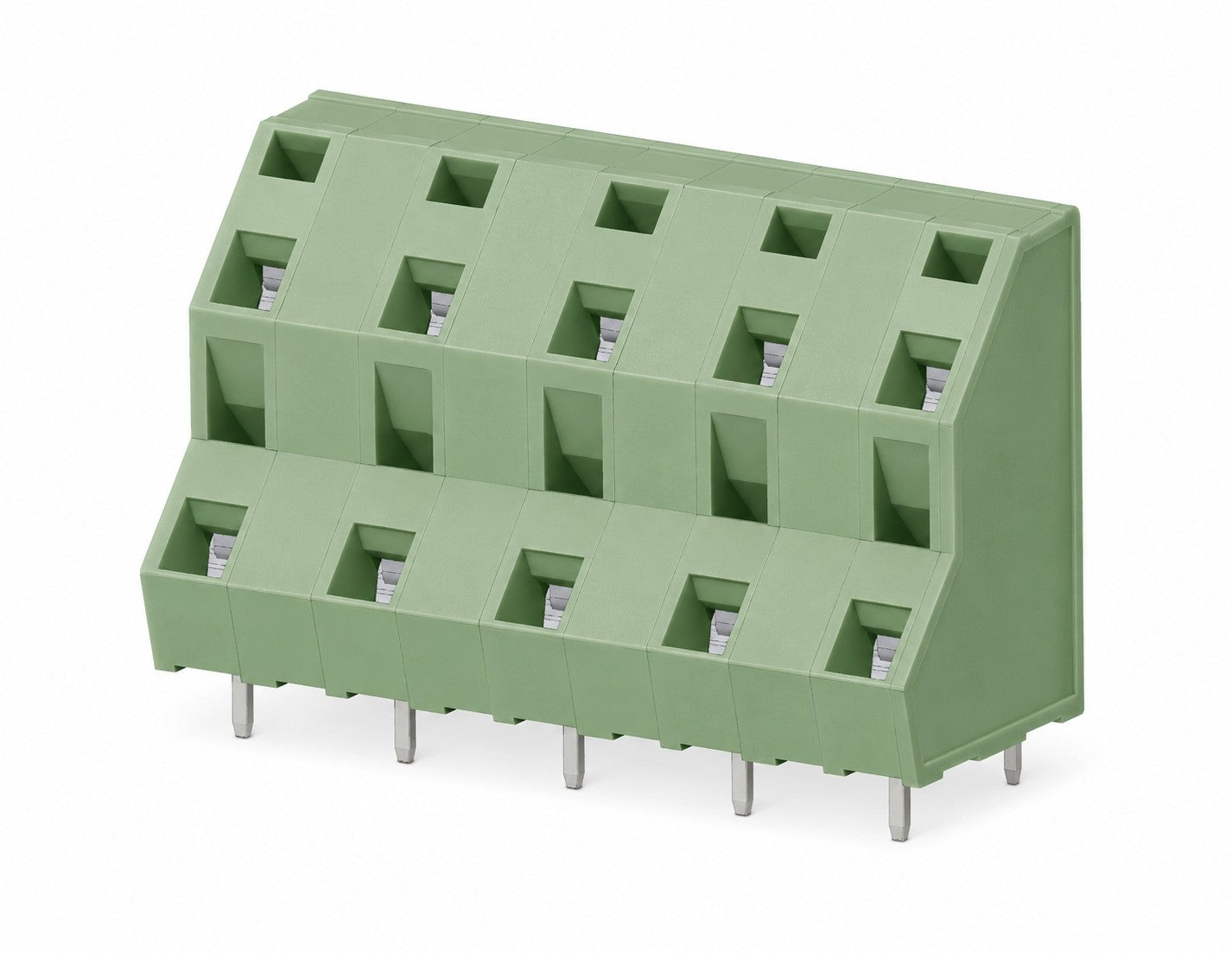

EB408-XX-803 Series - Spring - Direct Solder - Tool Required - 10.16mm

Request Sample Request 3D File

EB408-XX-803 Tool Required Pluggable Blocks. It has a centerline spacing of 10.16mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It accommodates wire sizes from 12-28AWG. It includes up to 24 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polyamide, UL 94V-0. Feature: Pins Staggered.

Maximum number of positions 24

Centerline Spacing 10.16mm Spacing (0.400")

Electrical

Voltage Rating 300 VAC

Current Rating 10 Amps

Wire Range Min / Max 12-28AWG

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material: Polyamide, UL 94V-0

Wire Retention Spring: Stainless Steel

Contact Solder Pin Material: Brass, Tin Plated

Product Notes

• Pins Staggered

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
