Name: EB3560-XX-802 SERIES Tool Required Blocks
Brand: ebyelectro
Availability: InStock

Euro Style Terminal Blocks > Spring > Direct Solder > Tool Required > Power (6mm-20mm) > EB3560-XX-802

Approvals

1 1

Power

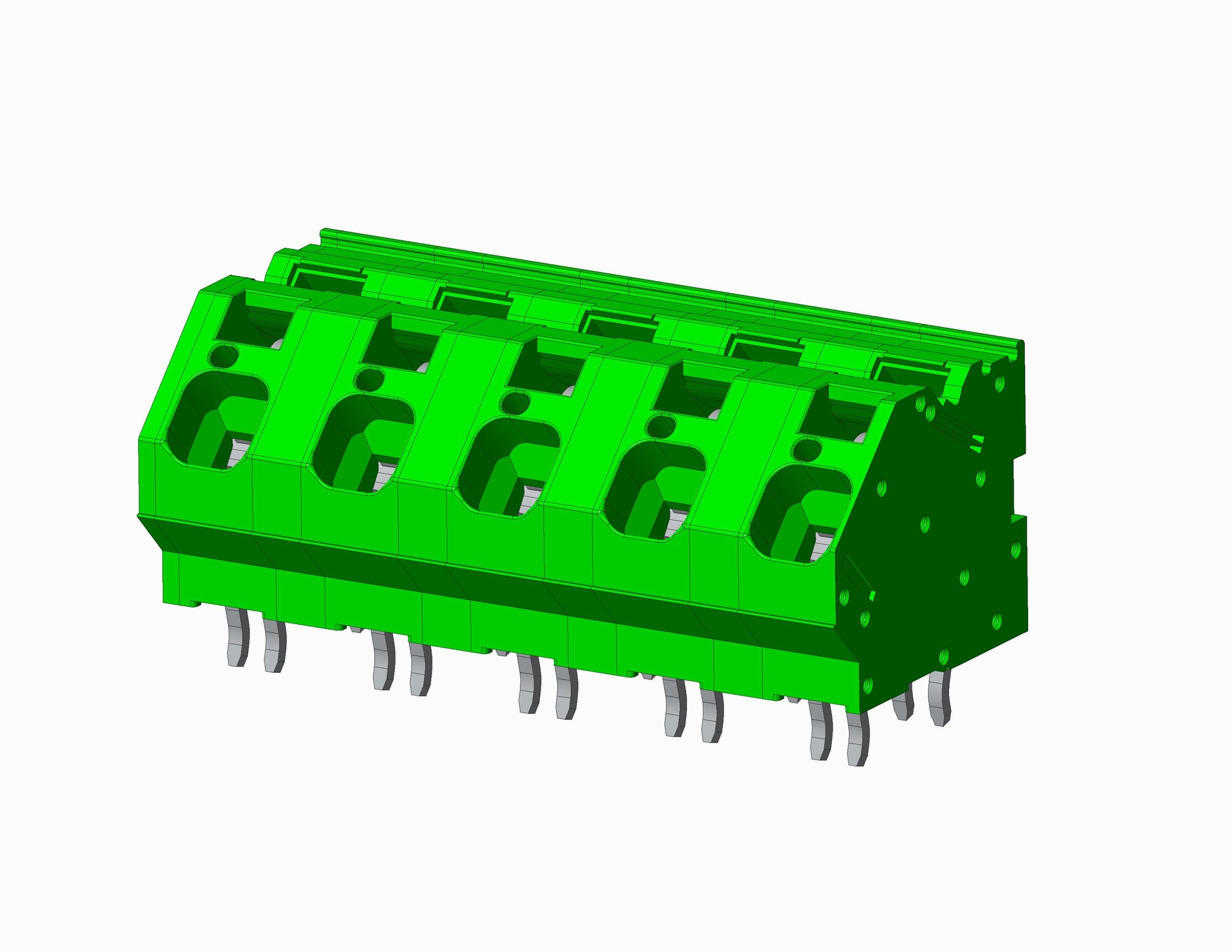

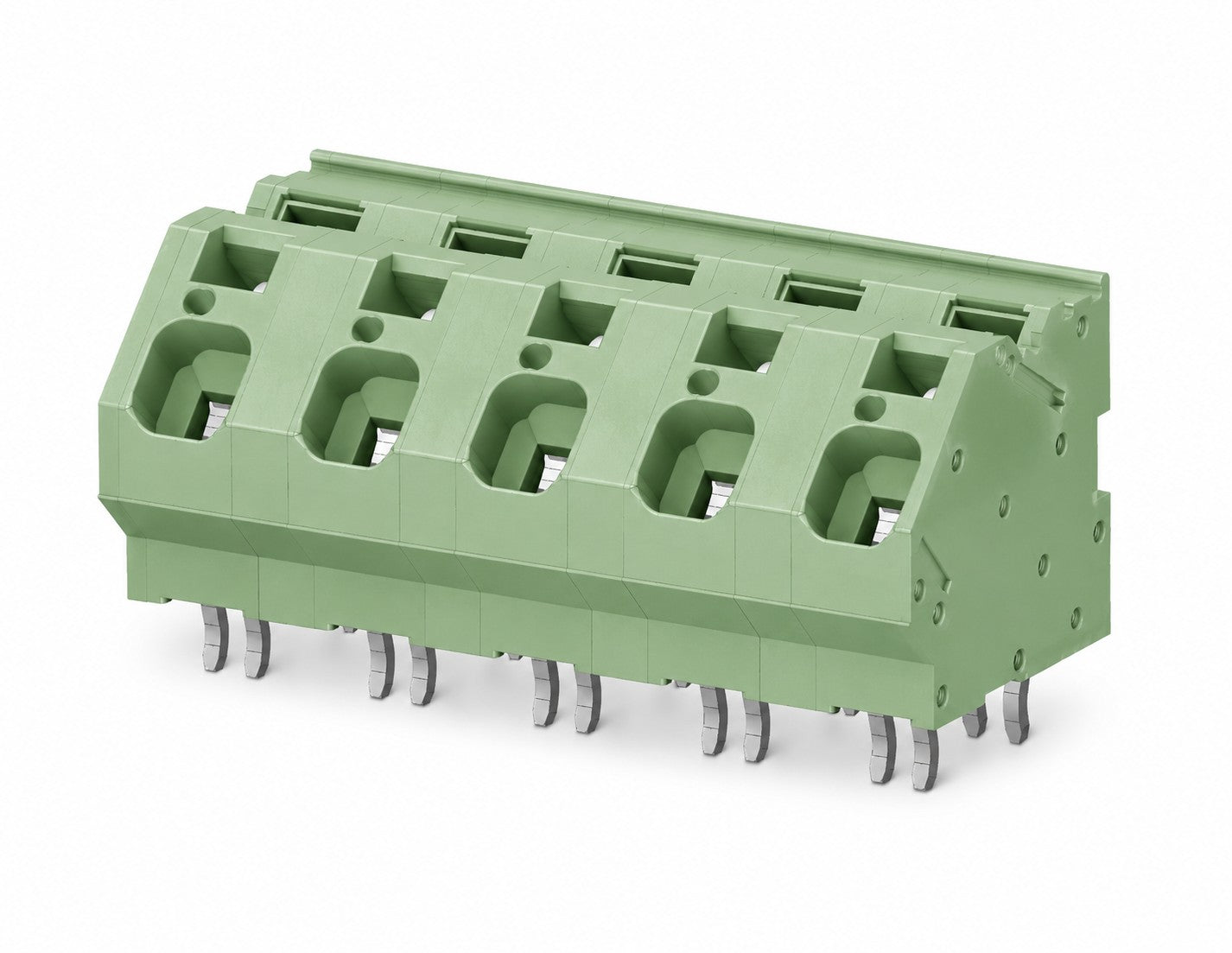

EB3560-XX-802 Series - Spring - Direct Solder - Tool Required - 15.0mm

Request Sample Request 3D File

EB3560-XX-802 Tool Required Pluggable Blocks. It has a centerline spacing of 15.0mm. The voltage rating is 600 VAC. The current rating is 37 Amps. It accommodates wire sizes from 6-24AWG. It includes up to 12 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 12

Centerline Spacing 15.00mm Spacing (0.591")

Electrical

Voltage Rating 600 VAC

Current Rating 37 Amps

Wire Range Min / Max 6-24AWG

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material: Polyamide, UL 94V-0

Wire Retention Spring: Stainless Steel

Contact Solder Pin Material: rass, Tin Plated

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
