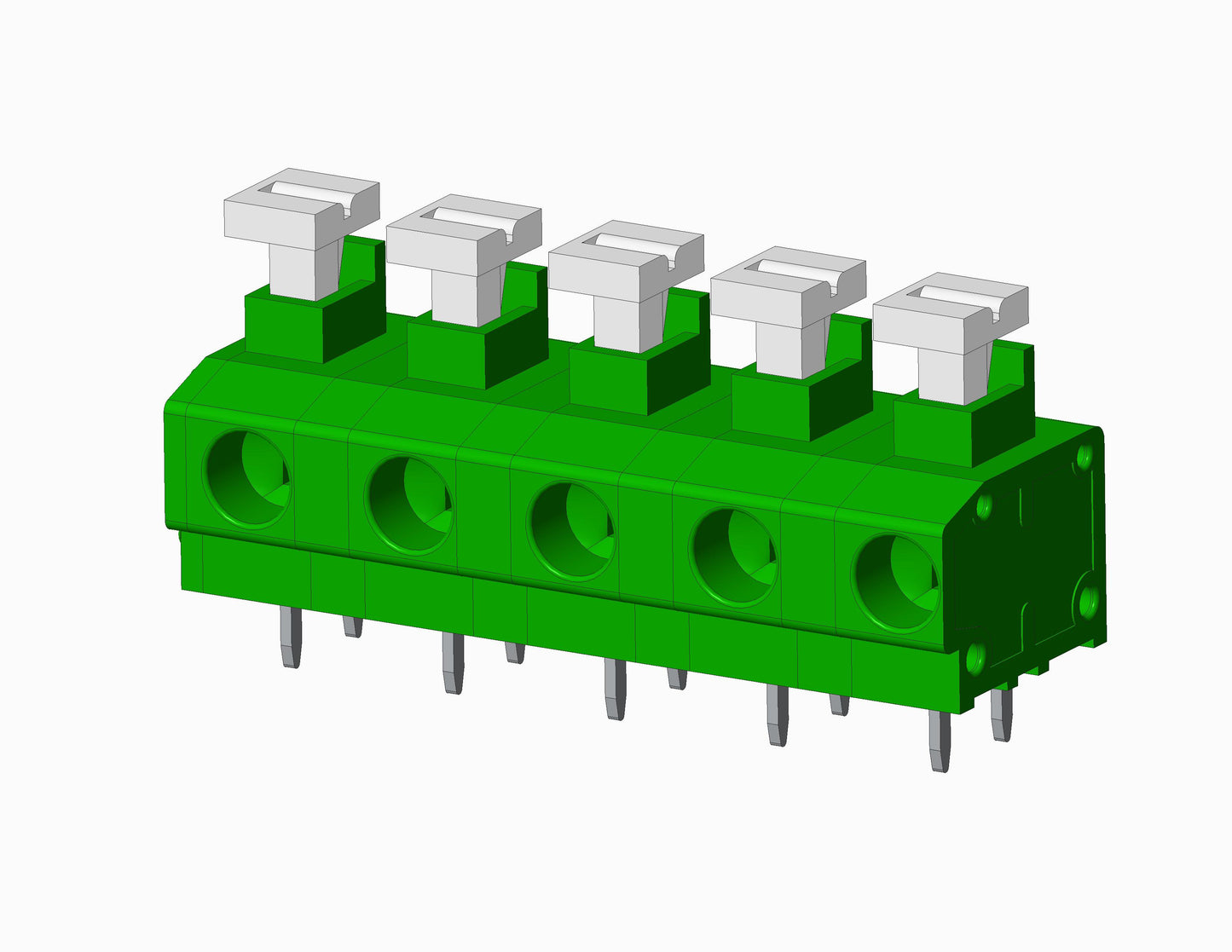

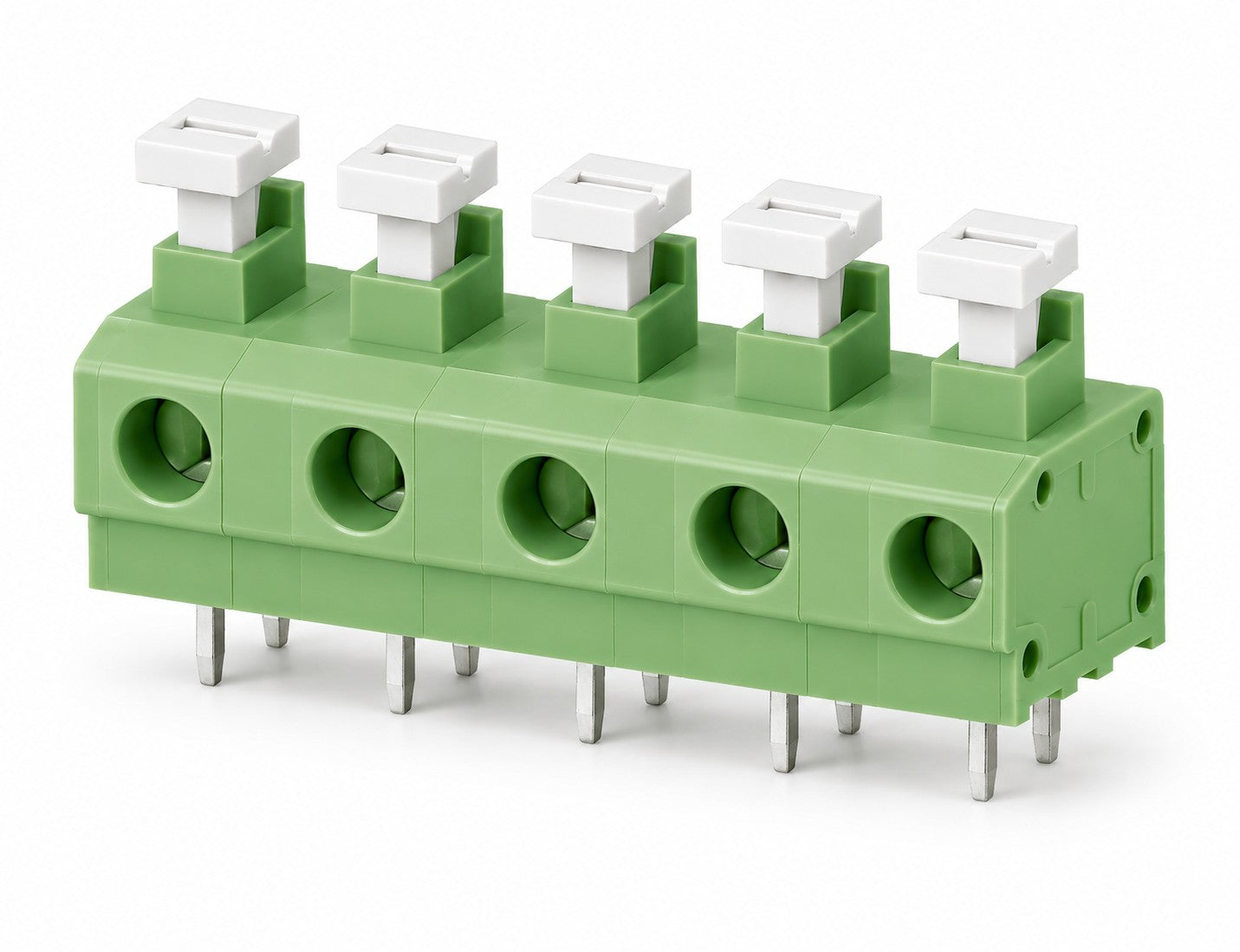

  • EB3507 SERIES Screwless Blocks
  • EB3507 SERIES Push-Button Blocks dimensional drawing
1 1

Power

EB3507 Series - Spring - Direct Solder - Push-Button - 7.5mm

Request Sample Request 3D File

EB3507 Push-Button Pluggable Blocks. It has a centerline spacing of 7.5mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It accommodates wire sizes from 14-20AWG. It includes up to 16 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 16

Centerline Spacing 7.50mm Spacing (0.295")

Electrical

Voltage Rating 300 VAC

Current Rating 10 Amps

Wire Range Min / Max 14-20AWG

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material Polyamide, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring Stainless Steel

Terminal Screw Size

Terminal Screw Material

Contact Block Material

Contact Solder Pin Material Brass, Tin Plated

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color

Cover
