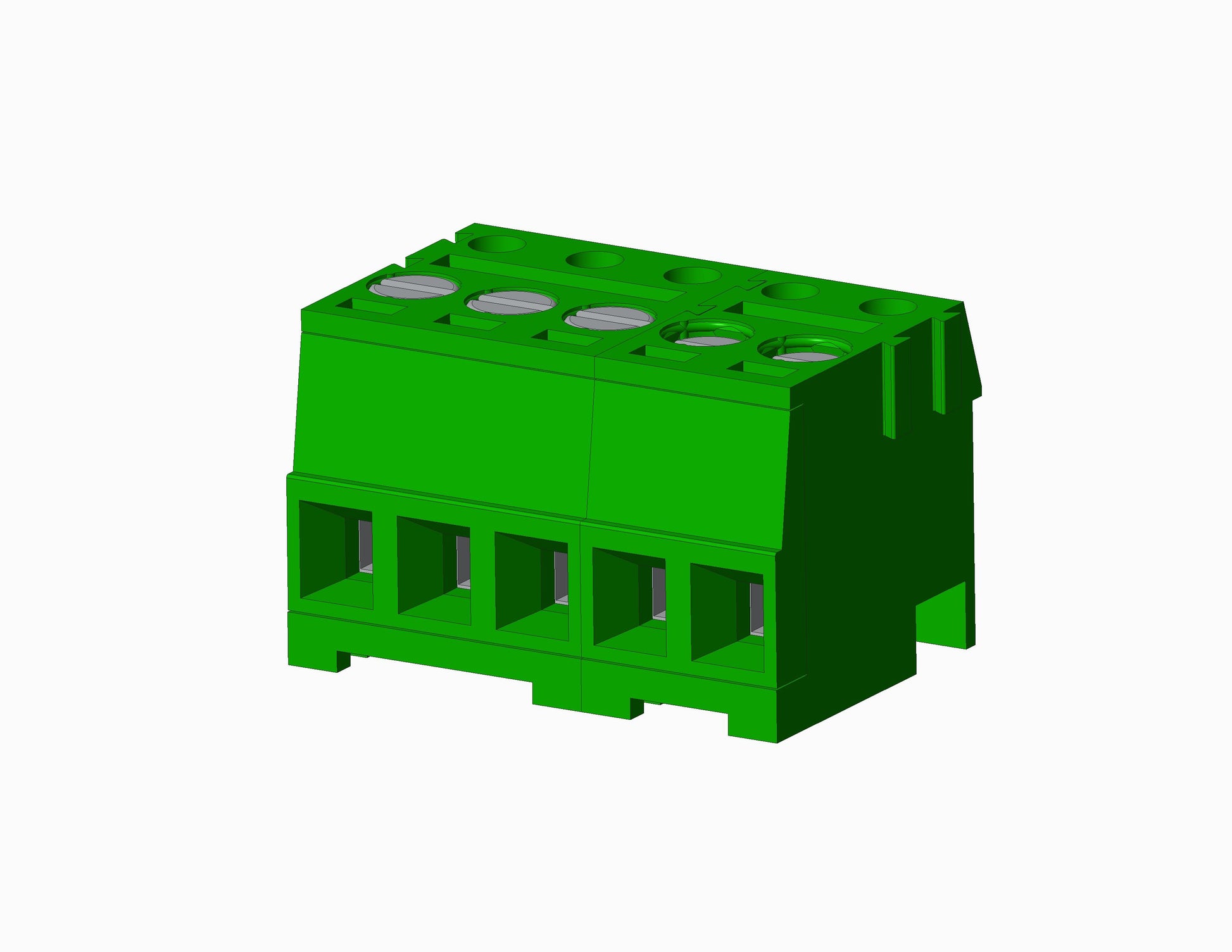

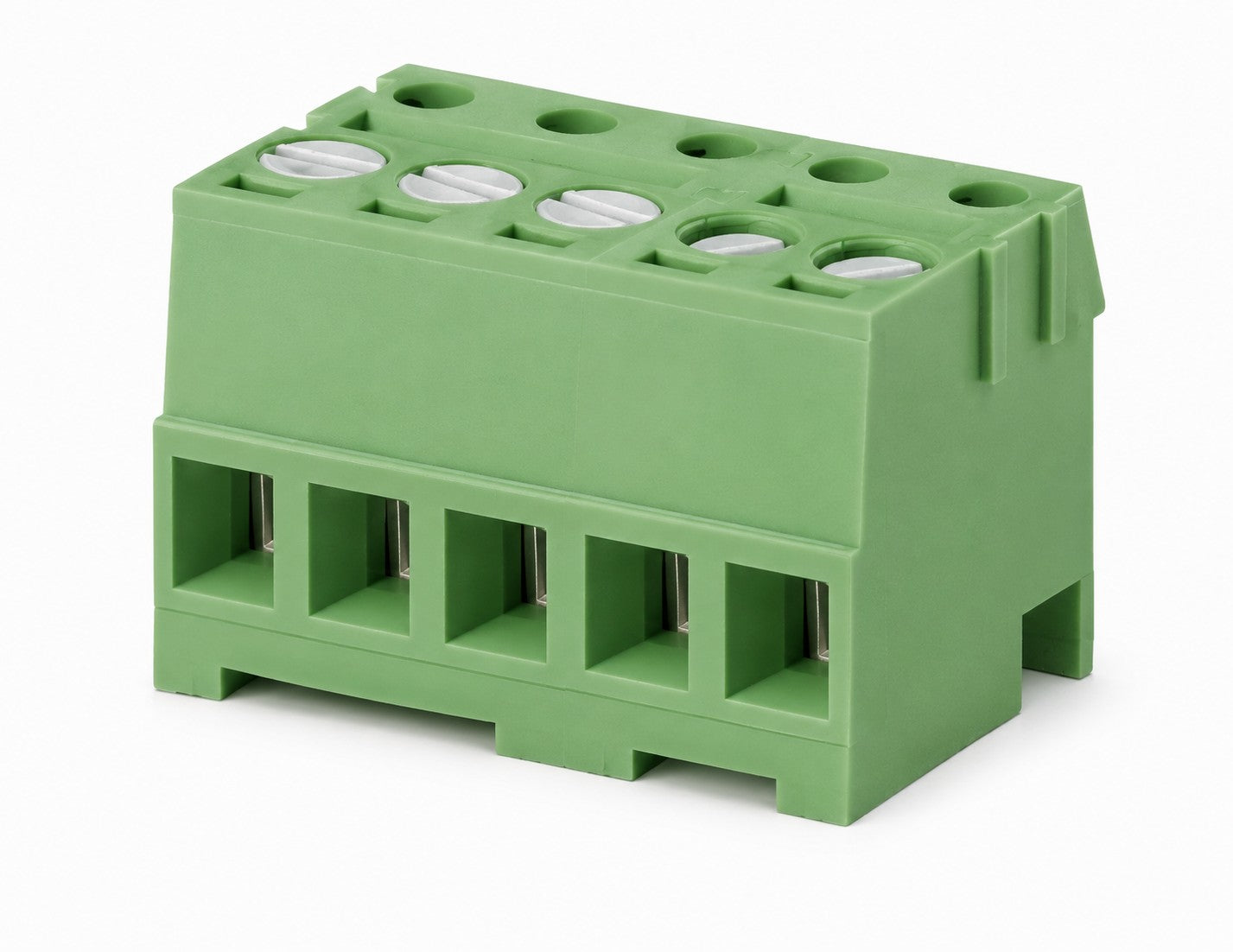

  • EB332 SERIES Pluggable Blocks
  • EB332 SERIES Pluggable Blocks dimensional drawing
1 1

Compact

EB332 Series - Screw - Pluggable - Rising Cage - 3.5mm

Request Sample Request 3D File

EB332 Pluggable Block. It has a centerline spacing of 3.5mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It accommodates wire sizes from 16-28AWG. It includes up to 24 positions. The torque rating is 1.7 lbs-in max. The contact block is made of Brass, Tin Plated. It features a terminal screw made of Polyamide, UL 94V-0. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 24

Centerline Spacing 3.50mm Spacing (0.138")

Electrical

Voltage Rating 300 VAC

Current Rating 10 Amps

Wire Range Min / Max 16-28AWG

Mechanical

Torque 1.7 lbs-in. Max.

Soldering Temperatures

Material

Insulator Body Material Polyamide, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size M2.0

Terminal Screw Material Polyamide, UL 94V-0

Contact Block Material Brass, Tin Plated

Contact Solder Pin Material

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material PhBz, Tin Plated

Color

Cover

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.
