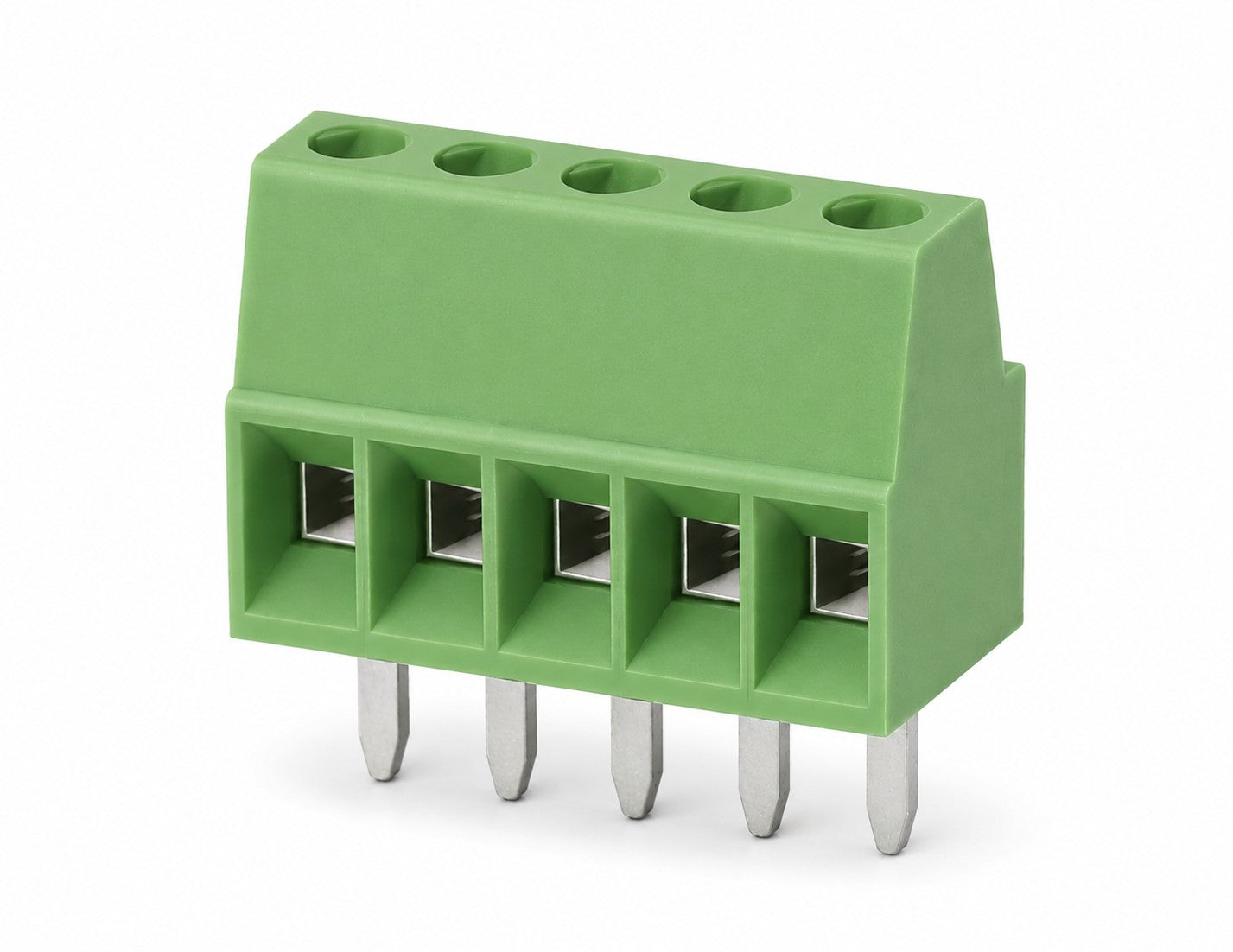

  • EB254 SERIES Rising Clamp Blocks

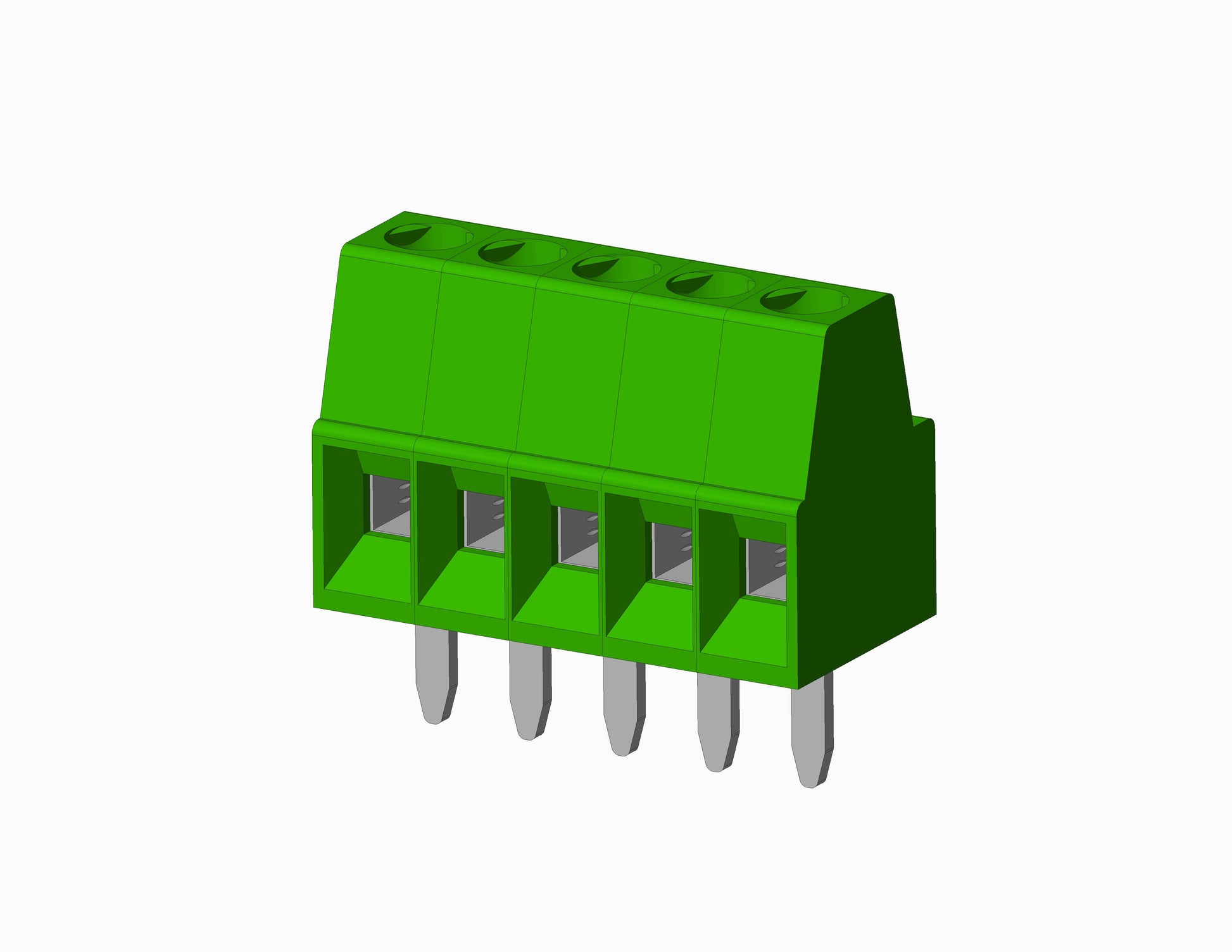

  • EB254 SERIES Rising Cage Blocks dimensional drawing
1 1

Micro

EB254 Series - Screw - Direct Solder - Rising Cage - 2.54mm

Request Sample Request 3D File

EB254 Rising Cage Pluggable Blocks. It has a centerline spacing of 2.54mm. The voltage rating is 150 VAC. The current rating is 6 Amps. It includes up to 24 positions. The torque rating is 1.3 lbs-in max. The soldering temperature is 260°C, 500°F for 5 seconds Max. The contact block is made of Brass, Ni Plated. It features a terminal screw made of Steel, Zinc Plated, "-" Slotted. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 24

Centerline Spacing 2.54mm Spacing (0.100")

Electrical

Voltage Rating 150 VAC

Current Rating 6 Amps

Wire Range Min / Max

Mechanical

Torque 1.3 lbs-in. Max.

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material Polyamide, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size M1.6

Terminal Screw Material Steel, Zinc Plated, "-" Slotted

Contact Block Material Brass, Ni Plated

Contact Solder Pin Material Brass, Tin Plated

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color Green

Cover

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Request a Sample and 3D file: Product: EB254 Series - Screw Direct Solder - Rising Cage (2.54mm)
