EB2015MF Series - Screw - Direct Solder - Rising Cage - 15.0mm

Request Sample Request 3D File

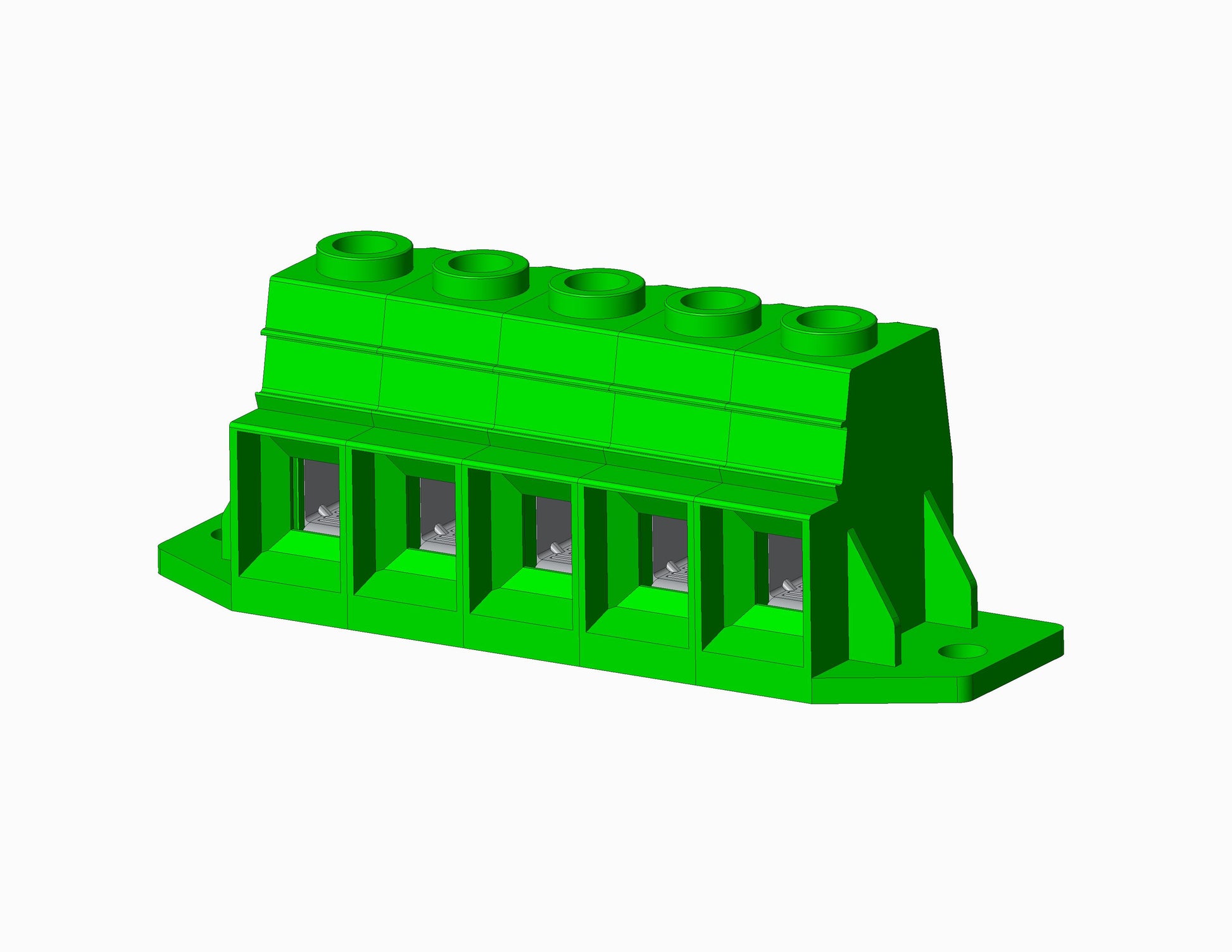

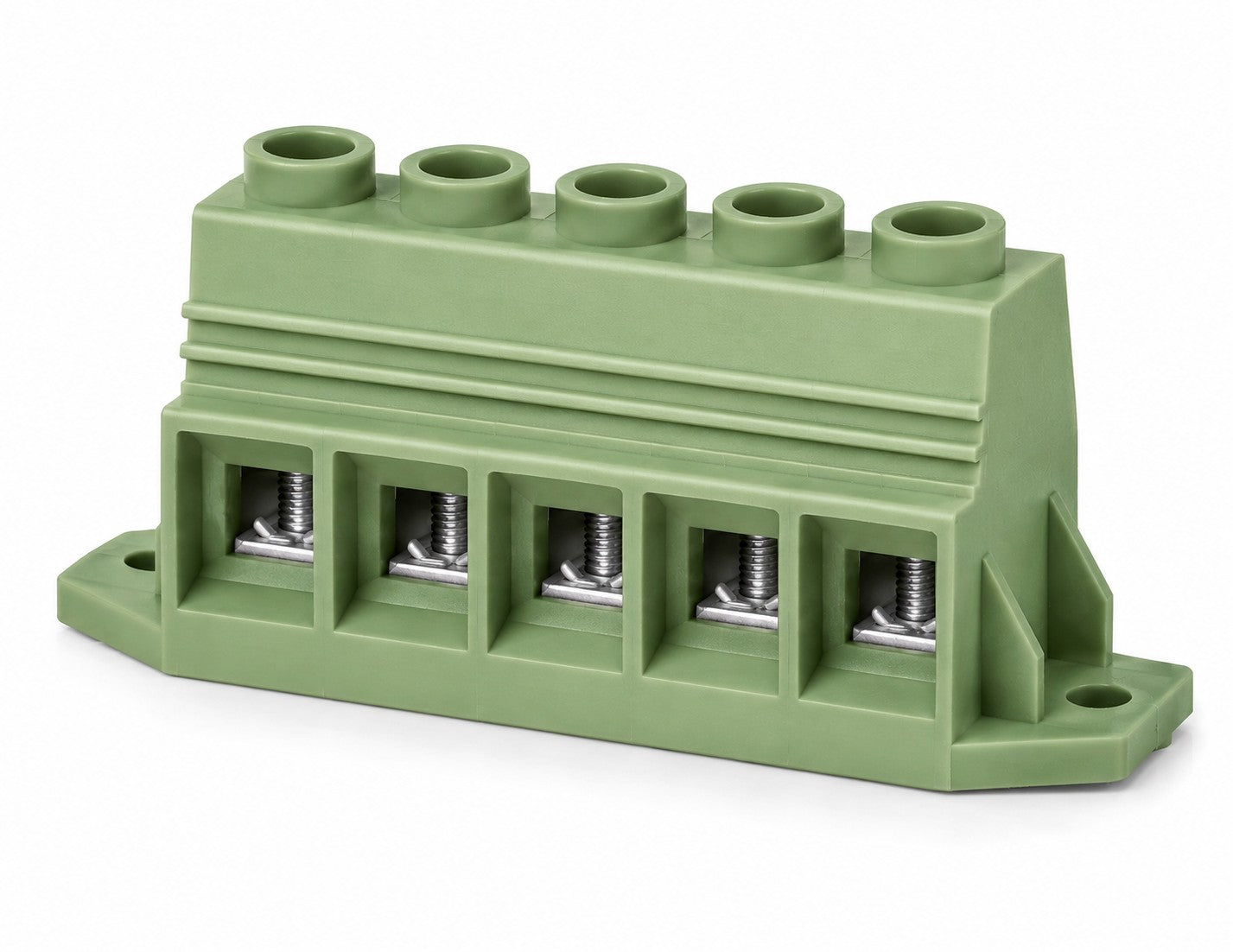

EB2015MF Rising Cage Direct Solder Blocks. It has a centerline spacing of 15.0mm. The voltage rating is 600 VAC. The current rating is 125 Amps. It accommodates wire sizes from 2-20AWG. It includes up to 10 positions. The torque rating is 36.5 lbs-in max. The soldering temperature is 260°C, 500°F for 5 seconds Max. The contact block is made of Stamped Steel, Zinc Plated. It features a terminal screw made of Steel, Zinc Plated, "-" Slotted. The housing is constructed from Polyamide, UL 94V-0. Feature: Dual Leg Mounting Flange.

Maximum number of positions 10

Centerline Spacing 15.00mm Spacing (0.591")

Mechanical

Torque: 36.5 lbs-in. Max.

Soldering Temperatures: 260°C, 500°F for 5 seconds Max

Electrical

Voltage Rating: 600 VAC

Current Rating: 125 Amps

Wire Range Min / Max: 2-20AWG

Material

Insulator Body Material: Polyamide, UL 94V-0

Terminal Screw Size: M5.0

Terminal Screw Material: Steel, Zinc Plated, "-" Slotted

Contact Block Material: Stamped Steel, Zinc Plated

Contact Solder Pin Material: Copper, Tin Plated

Color: Please See PDF

Product Notes

EBY's Cage Clamp, direct solder, mini-blocks are the ideal choice for high reliability applications or those that require frequent insertion and withdrawals of the wiring harness. • Available in modular and molded to size constructions. • Standard molding materials to all UL94V-O flammability class. • High temperature materials for re-flow applications available. • Custom marking, screws and pin length readily available.
