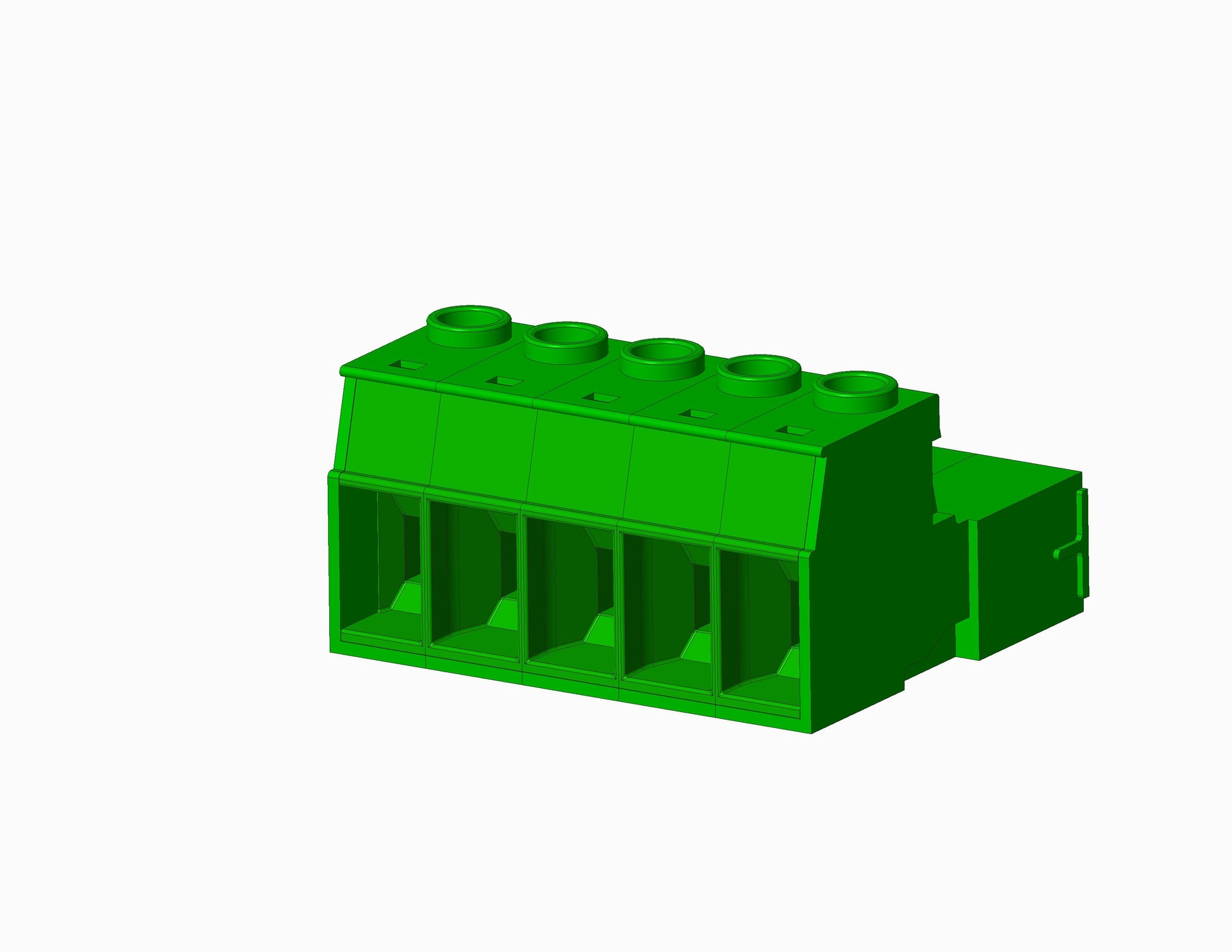

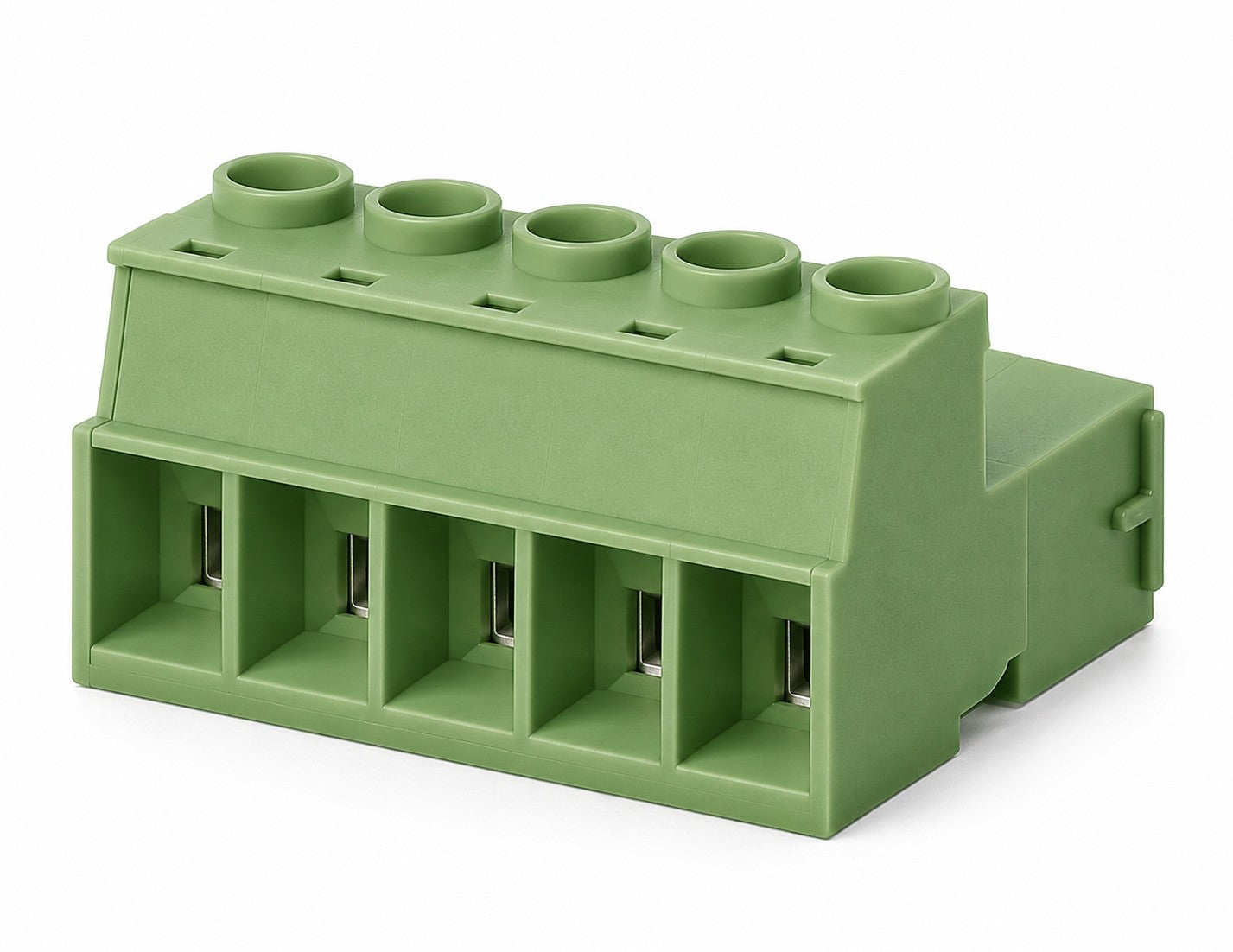

Name: EB1810 SERIES Pluggable Blocks
Brand: ebyelectro
Availability: InStock

Euro Style Terminal Blocks > Screw > Pluggable > Rising Cage > Power (6mm-20mm) > EB1810

Approvals

1 1

Power

EB1810 Series - Screw - Pluggable - Rising Cage - 10.16mm

Request Sample Request 3D File

EB1810 Pluggable Block. It has a centerline spacing of 10.16mm. The voltage rating is 600 VAC. The current rating is 55 Amps. It accommodates wire sizes from 6-20AWG. It includes up to 24 positions. The torque rating is 18.0 lbs-in max. The contact block is made of Brass, Ni Plated. It features a terminal screw made of Steel, Zinc Plated, "-" Slotted. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 24

Centerline Spacing 10.16mm Spacing (0.400")

Electrical

Voltage Rating 600 VAC

Current Rating 55 Amps

Wire Range Min / Max 6-20AWG

Mechanical

Torque 18.0 lbs-in. Max.

Soldering Temperatures

Material

Insulator Body Material: Polyamide, UL 94V-0

Contact Clip Material: PhBz (CuSn), Tin Plated

Terminal Screw Size: M4.5

Terminal Screw Material: Steel, Zinc Plated, "-" Slotted

Contact Block Material: Brass, Ni Plated

Color: Green

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Request a Sample and 3D file: Product: EB1810 Series - Screw Pluggable - Rising Cage (10.16mm)
