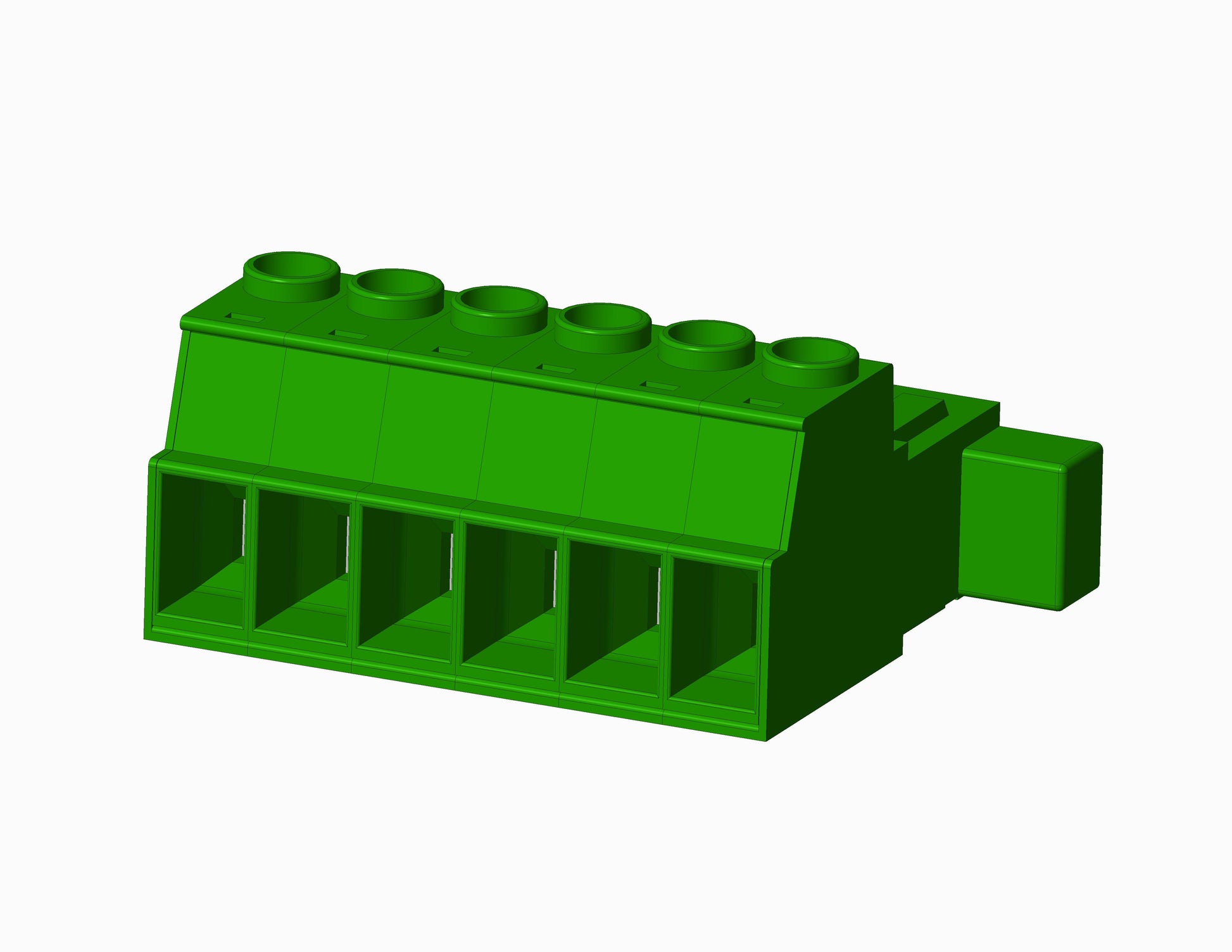

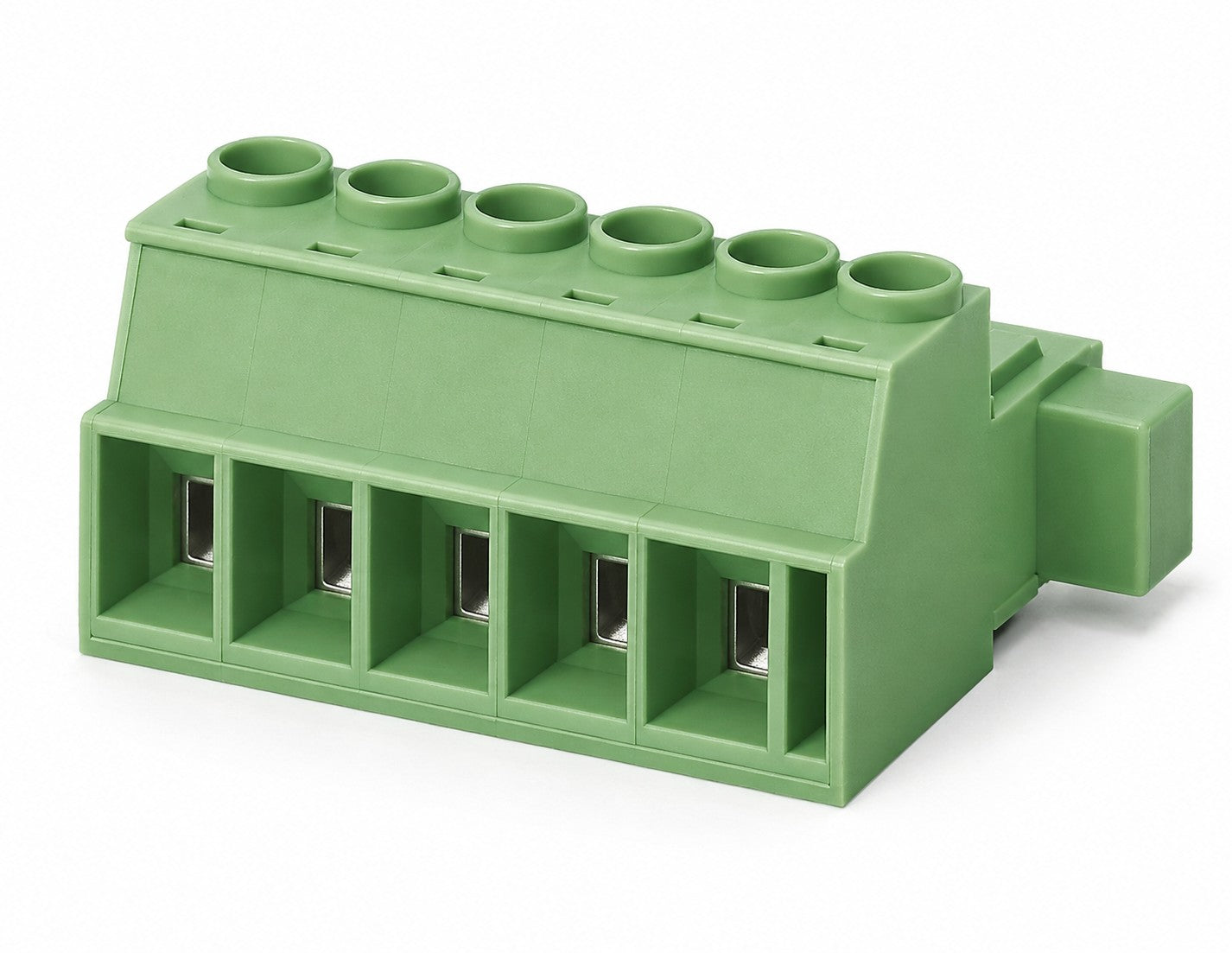

  • EB1789MN SERIES Pluggable Blocks
  • EB1789MN SERIES Pluggable Blocks dimensional drawing
1 1

Power

EB1789MN Series - Screw - Pluggable - Rising Cage - 7.62mm

Request Sample Request 3D File

EB1789MN Pluggable Block. It has a centerline spacing of 7.62mm. The voltage rating is 600 VAC. The current rating is 41 Amps. It accommodates wire sizes from 8-24AWG. It includes up to 16 positions. The torque rating is 9.0 lbs-in max. The contact block is made of Brass, Ni Plated. It features a terminal screw made of Steel, Zinc Plated, "-" Slotted. The housing is constructed from Polycarbonate, UL 94V-0.

Maximum number of positions 16

Centerline Spacing 7.62mm Spacing (0.300")

Electrical

Voltage Rating 600 VAC

Current Rating 41 Amps

Wire Range Min / Max 8-24AWG

Mechanical

Torque 9.0 lbs-in. Max.

Soldering Temperatures

Material

Insulator Body Material Polycarbonate, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size M3

Terminal Screw Material Steel, Zinc Plated, "-" Slotted

Contact Block Material Brass, Ni Plated

Contact Solder Pin Material Copper, Tin Plated

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color Green
