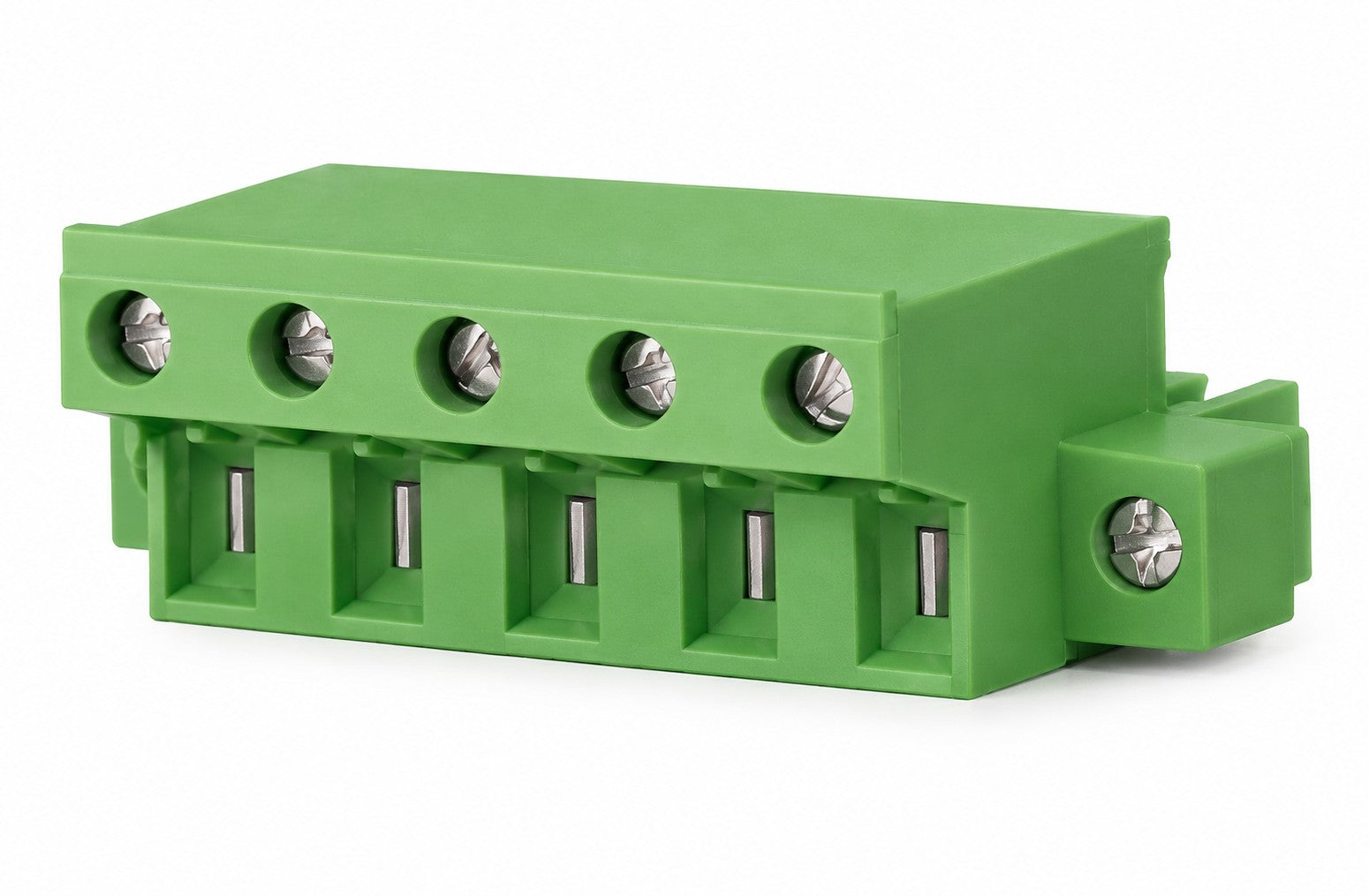

Name: EB17858M-XX-X00
Brand: ebyelectro
Availability: OutOfStock

Euro Style Terminal Blocks > Screw > Pluggable > Tool Required > Power (6mm-20mm) > EB17858M

Approvals

1 1

Power

EB17858M Series - Screw - Pluggable - Tool Required - mm

Request Sample Request 3D File

Maximum number of positions

Centerline Spacing

Mechanical

Torque: 3.5lbs-in

Electrical

Voltage Rating: 300 VAC

Current Rating: 20

Wire Range Min / Max: 12-22AWG

Material

Insulator Body Material: Polyamide

Contact Clip Material: PhBz, Tin Plated

Contact Housing Material: Steel, Zinc Plated

Contact Cam: Steel, Zinc Plated

Mounting Flange Screw: Steel, Zinc Plated

Terminal Screw Size: M2.5

Terminal Screw Material: Steel, Zinc Plated

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Primary Mating Pairs

HC1750M Series - Shrouded - (/7.5mm)

VC1750M Series - Shrouded - (/7.5mm)
