Power

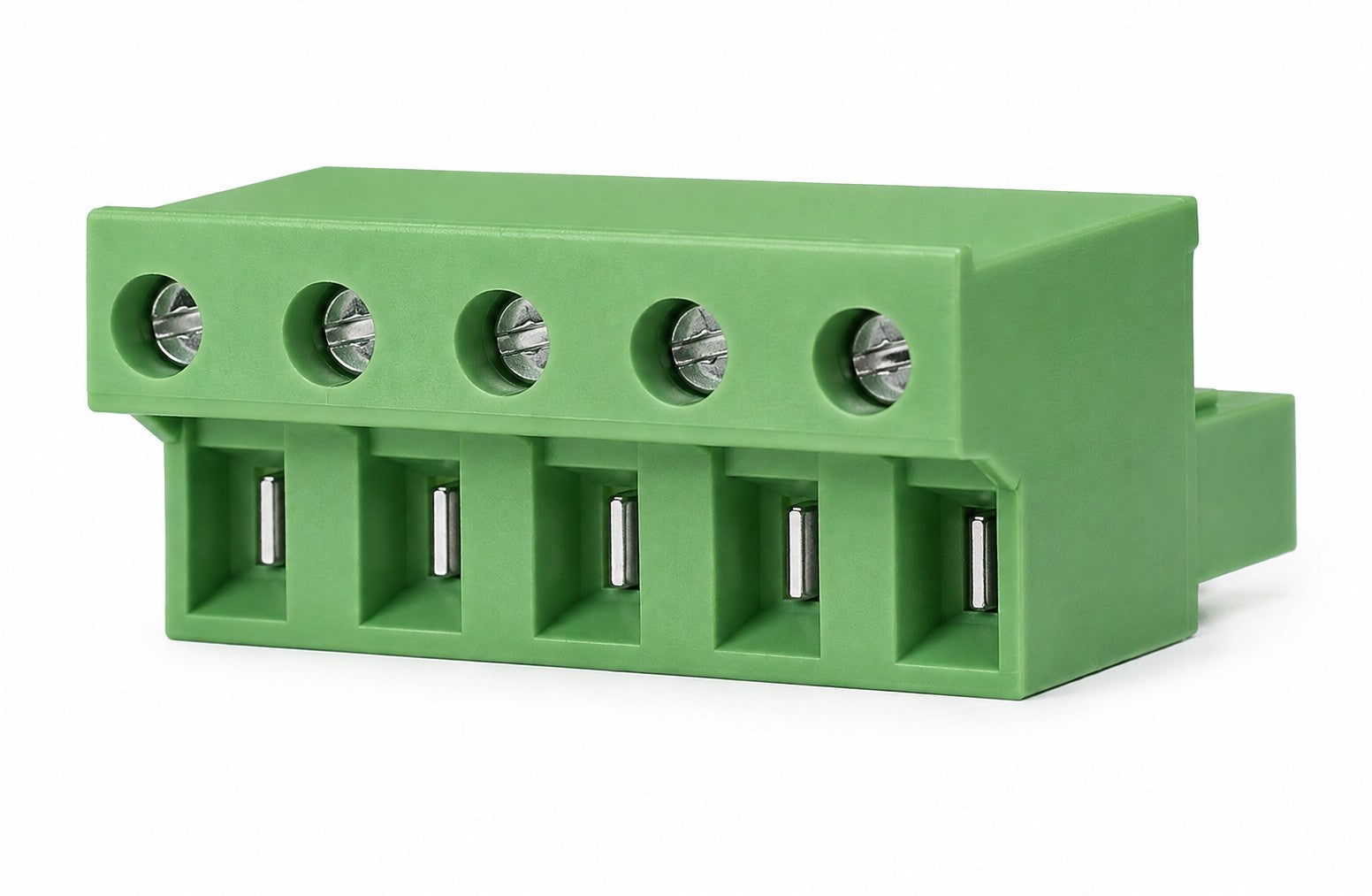

EB17858 Series - Screw - Pluggable - Tool Required - 7.5mm

EB1758-XX-X00 Pluggable connector, screw connection, 7.5mm pin spacing for power applications. Screw and wire in the same direction to facilitate ease of wiring.  It has a voltage rating of 300 VAC and a current rating of 20 Amps. It accommodates wire sizes from 12–22 AWG. The torque rating is 3.5 lbs-in. The insulator body is constructed from polyamide. The contact clip is made of phosphor bronze, tin-plated. The contact housing is made of steel, zinc -plated. The contact cam is made of steel, zinc-plated. It includes an M2.5 terminal screw made of steel, zinc plated.

Maximum number of positions 16

Centerline Spacing 7.50 mm Spacing

Mechanical

Torque: 3.5lbs-in

Electrical

Voltage Rating: 300 VAC

Current Rating: 20

Wire Range Min / Max: 12-22AWG

Material

Insulator Body Material: Polyamide

Contact Clip Material: PhBz, Tin Plated

Contact Housing Material: Steel, Zinc Plated

Contact Cam: Steel, Zinc Plated

Terminal Screw Size: M2.5

Terminal Screw Material: Steel, Zinc Plated

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Request a Sample and 3D file: Product: EB17858 Series - Screw Pluggable - Tool Required (7.5mm)
