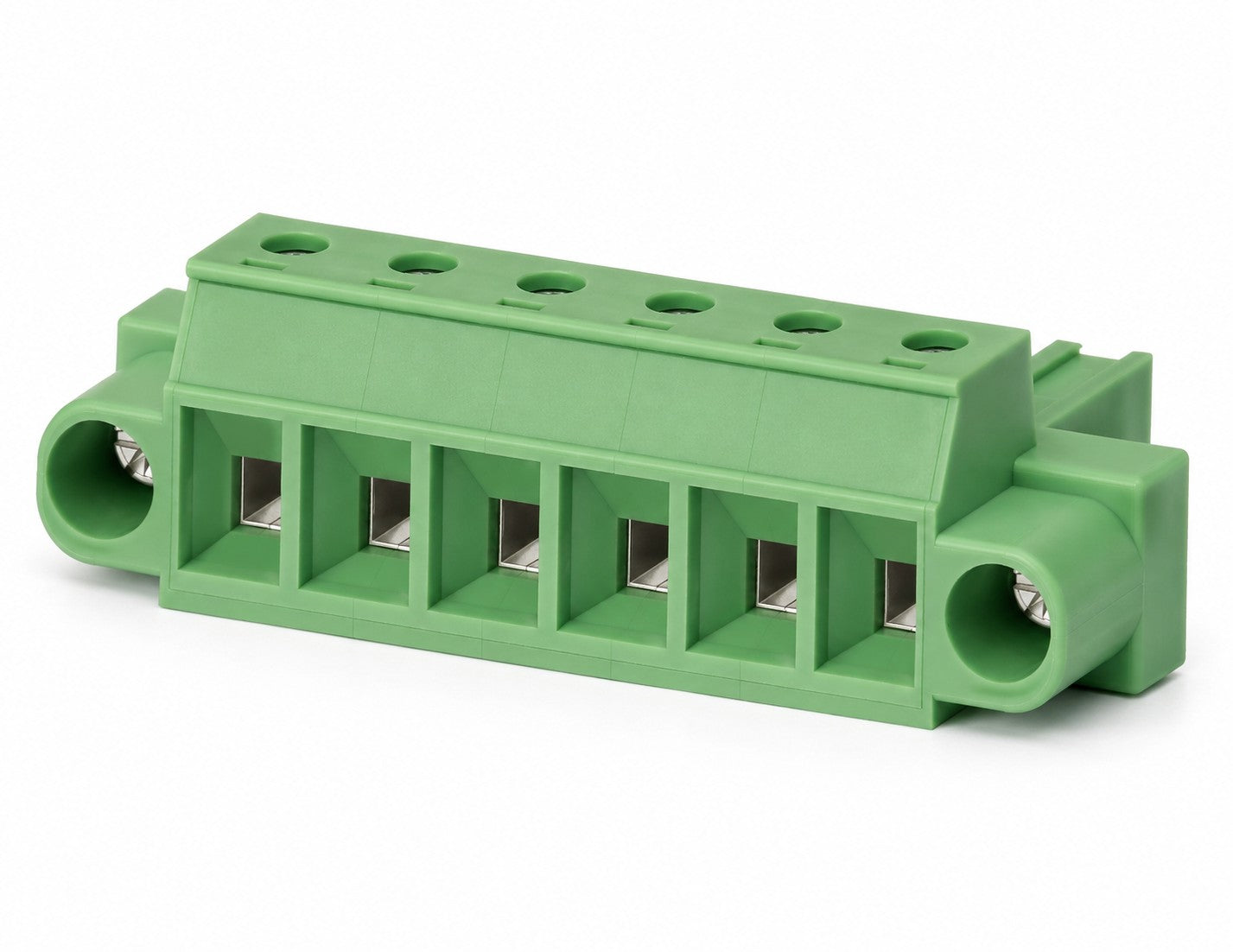

Name: EB1768M SERIES Pluggable Blocks
Brand: ebyelectro
Availability: InStock

Euro Style Terminal Blocks > Screw > Pluggable > Rising Cage > Power (6mm-20mm) > EB1768M

Approvals

1 1

Power

EB1768M Series - Screw - Pluggable - Rising Cage - 7.62mm

Request Sample Request 3D File

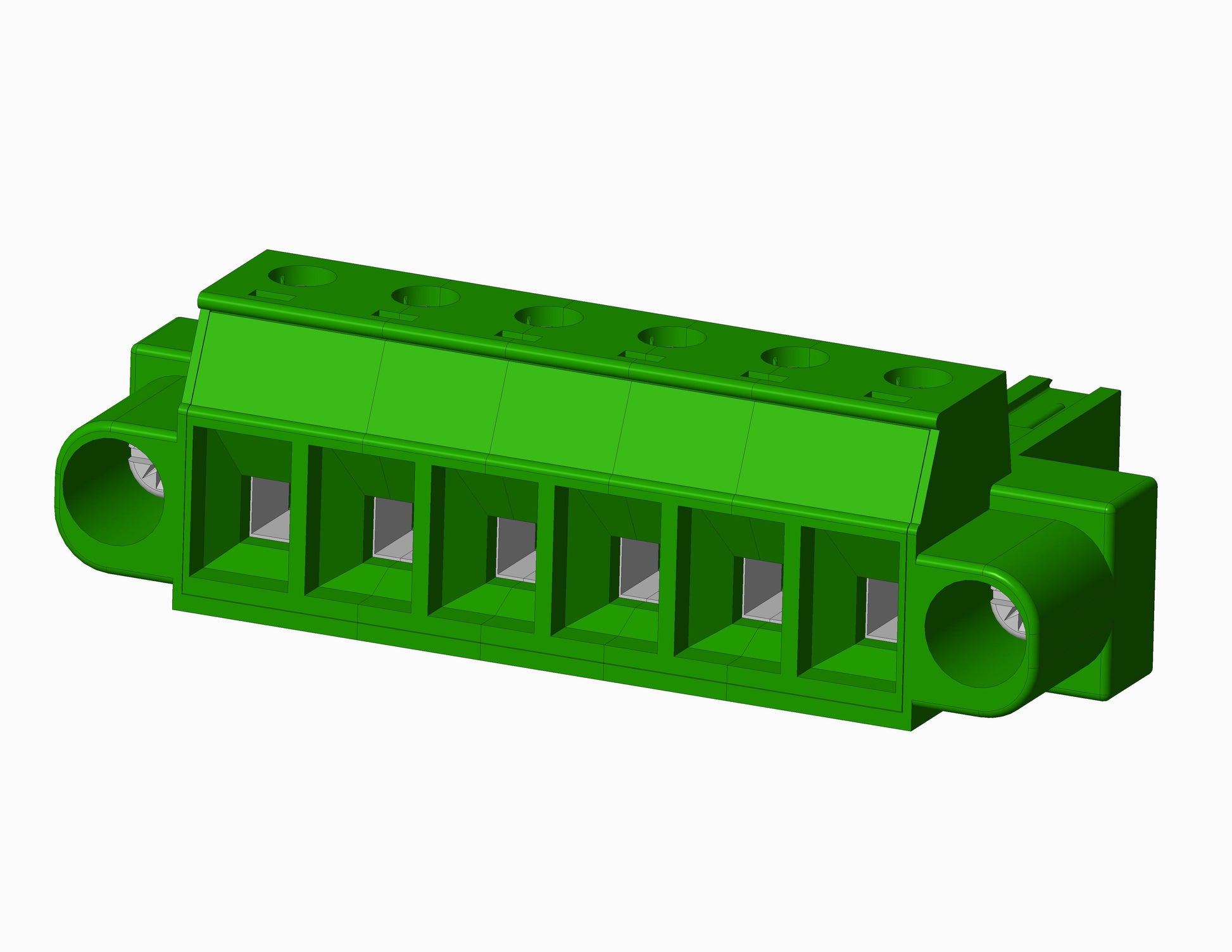

EB1768M Pluggable Block. It has a centerline spacing of 7.62mm. The voltage rating is 300 VAC. The current rating is 20 Amps. It accommodates wire sizes from 10-30AWG. It includes up to 16 positions. The torque rating is 4.5 lbs-in max. The soldering temperature is 260°C, 500°F for 5 seconds Max. The contact block is made of Brass, Tin Plated. It features a terminal screw made of Steel, Zinc Plated, "-" Slotted. The housing is constructed from Polyamide, UL 94V-0. Feature: with Mounting Flanges.

Maximum number of positions 16

Centerline Spacing 7.62mm Spacing (0.300")

Electrical

Voltage Rating 300 VAC

Current Rating 20 Amps

Wire Range Min / Max 10-30AWG

Mechanical

Torque 4.5 lbs-in. Max.

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material: Polyamide, UL 94V-0

Contact Clip Material: Brass, Tin Plated

Mounting Flange Screw: M3.0, Steel, Zinc Plated, "-" Slotted

Terminal Screw Size: M3.0

Terminal Screw Material: Steel, Zinc Plated, "-" Slotted

Contact Block Material: Brass, Tin Plated

Color: Green

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
