Standard

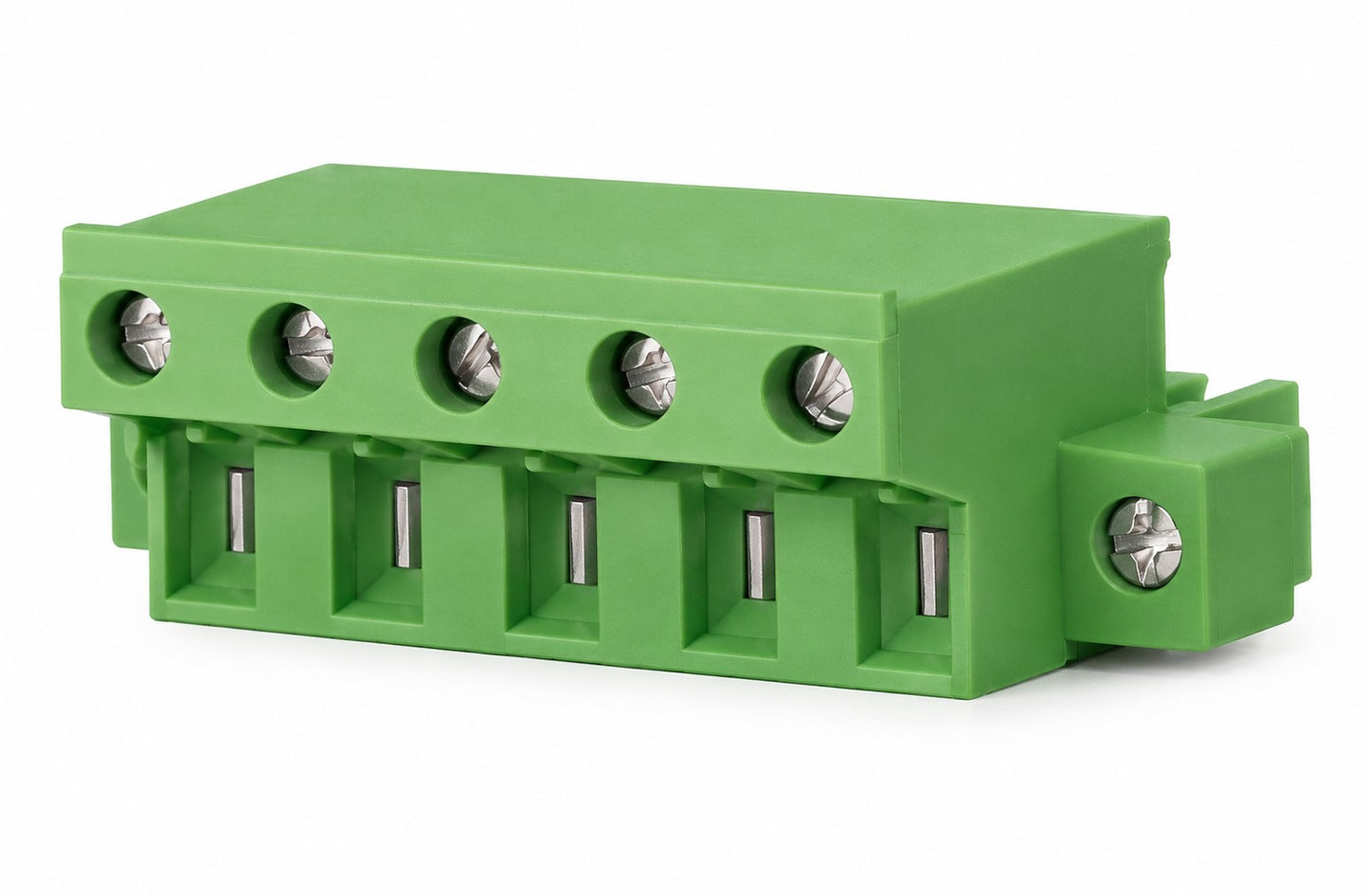

EB1758M Series - Screw - Pluggable - Tool Required - 7.5mm

EB1758M-XX-X00 Pluggable connector, screw connection, 7.5mm pin spacing and mounting ends for power applications.  Screw and wire in the same direction to facilitate ease of wiring. It has a voltage rating of 300 VAC and a current rating of 20 Amps. It accommodates wire sizes from 12–22 AWG. The torque rating is 3.5 lbs-in. The insulator body is constructed from polyamide. The contact clip is made of phosphor bronze, tin-plated. The contact housing is made of steel, zinc -plated. The contact cam is made of steel, zinc-plated. It includes an M2.5 terminal screw made of steel, zinc plated. It has mounting flange screws made of steel, zinc plated.

Maximum number of positions 16

Centerline Spacing 7.50mm Spacing

Mechanical

Torque: 3.5lbs-in

Electrical

Voltage Rating: 300 VAC

Current Rating: 20

Wire Range Min / Max: 12-22AWG

Material

Insulator Body Material: Polyamide

Contact Clip Material: PhBz, Tin Plated

Contact Housing Material: Steel, Zinc Plated

Mounting Flange Screw: Steel, Zinc Plated

Terminal Screw Size: M2.5

Terminal Screw Material: Steel, Zinc Plated

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Request a Sample and 3D file: Product: EB1758M Series - Screw Pluggable - Tool Required (7.5mm)
