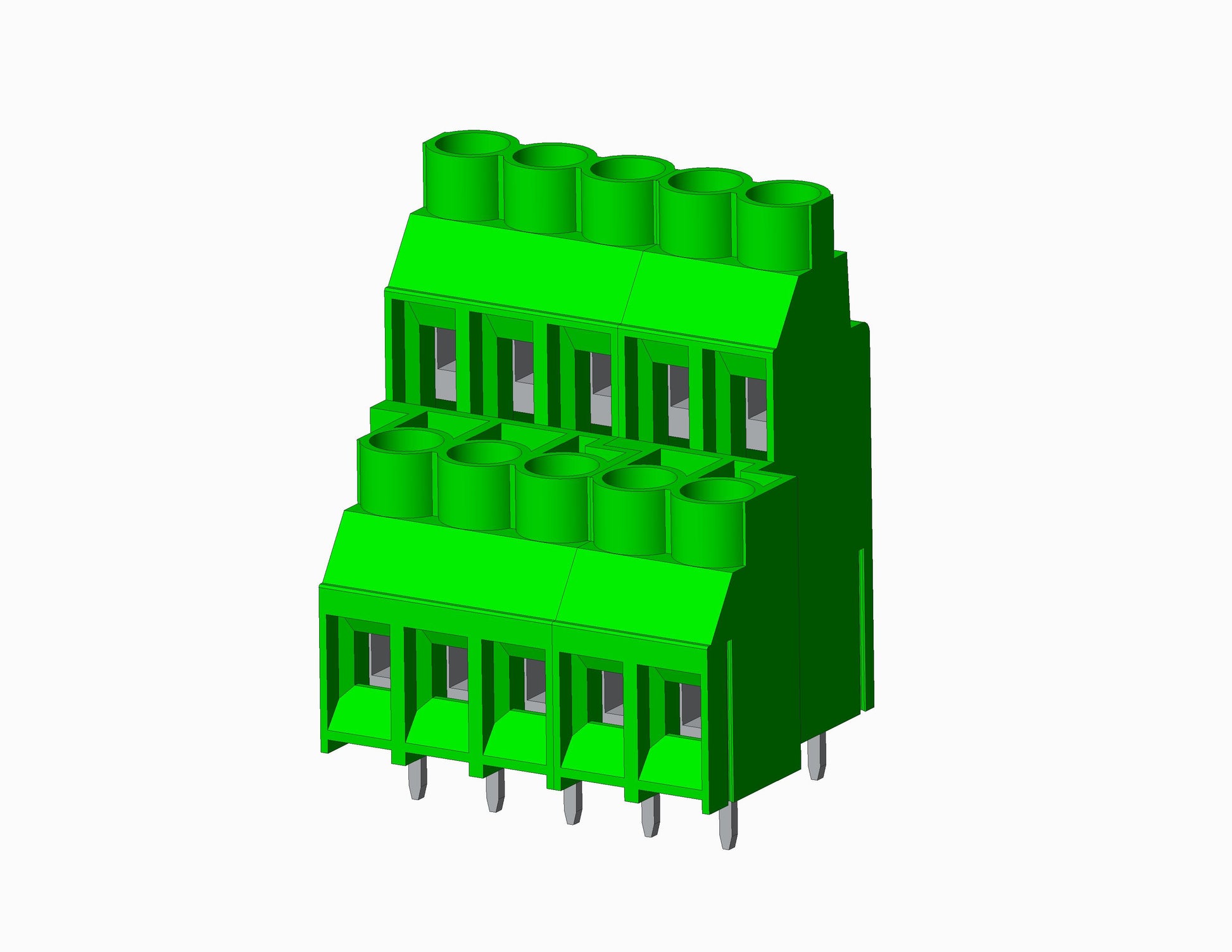

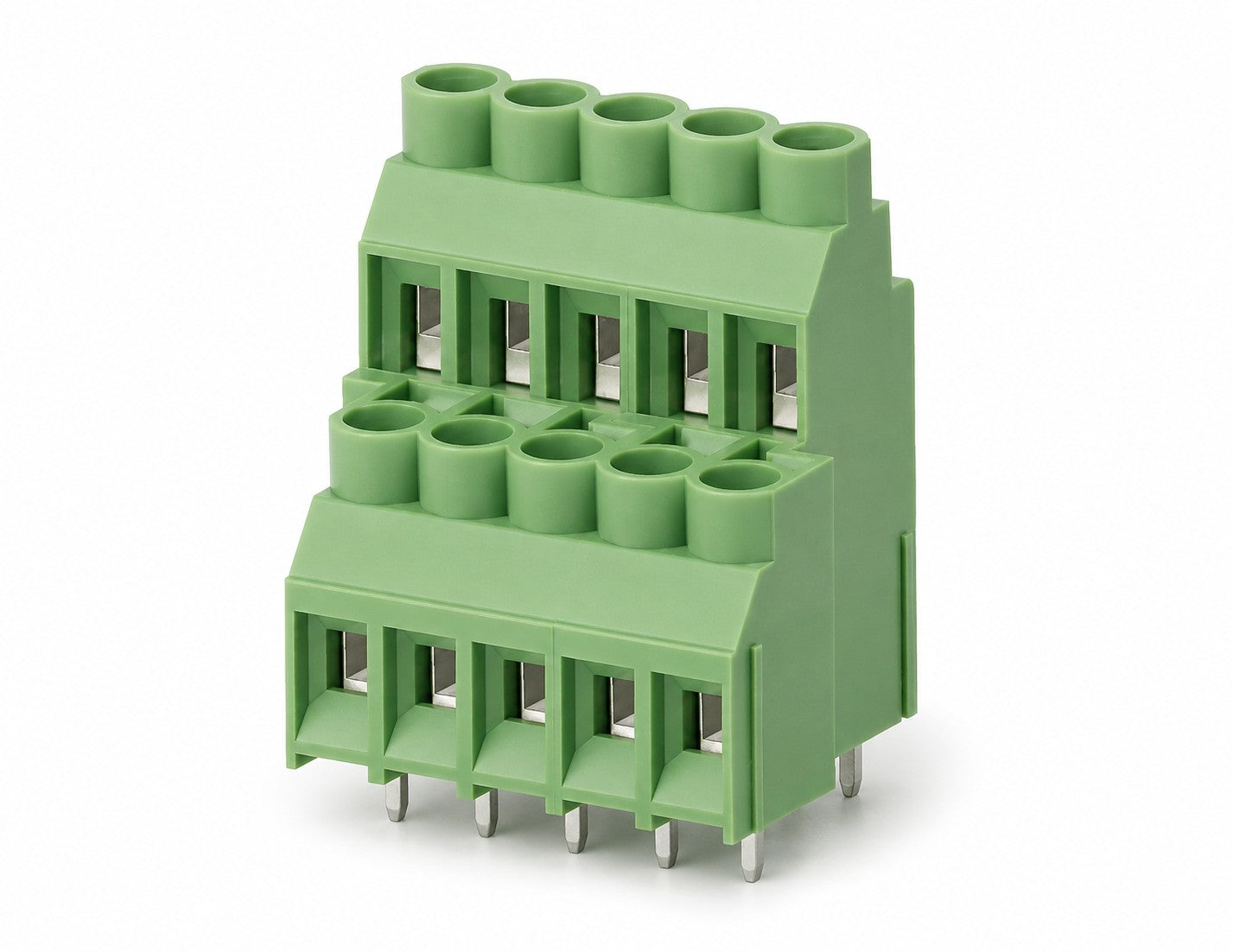

EB1746 Rising Cage Pluggable Blocks. It has a centerline spacing of 6.35mm. The voltage rating is 300 VAC. The current rating is 30 Amps. It accommodates wire sizes from 10-30AWG. It includes up to 32 positions. The torque rating is 5.2 lbs-in max. The soldering temperature is 260°C, 500°F for 5 seconds Max. The contact block is made of Brass, Ni Plated. It features a terminal screw made of Steel, Zinc Plated, "-" Slotted. The housing is constructed from Polyamide, UL 94V-0. Feature: Dual Level.
