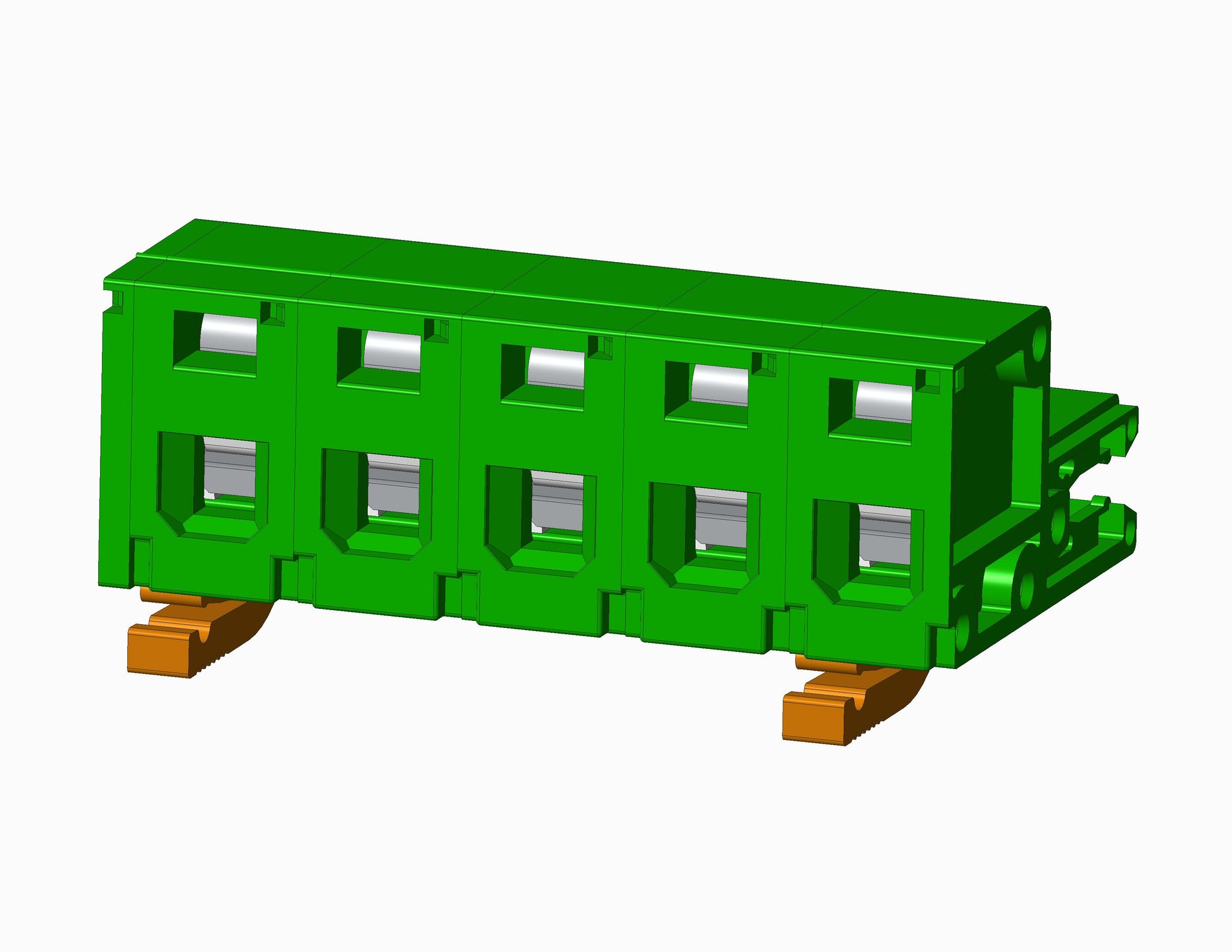

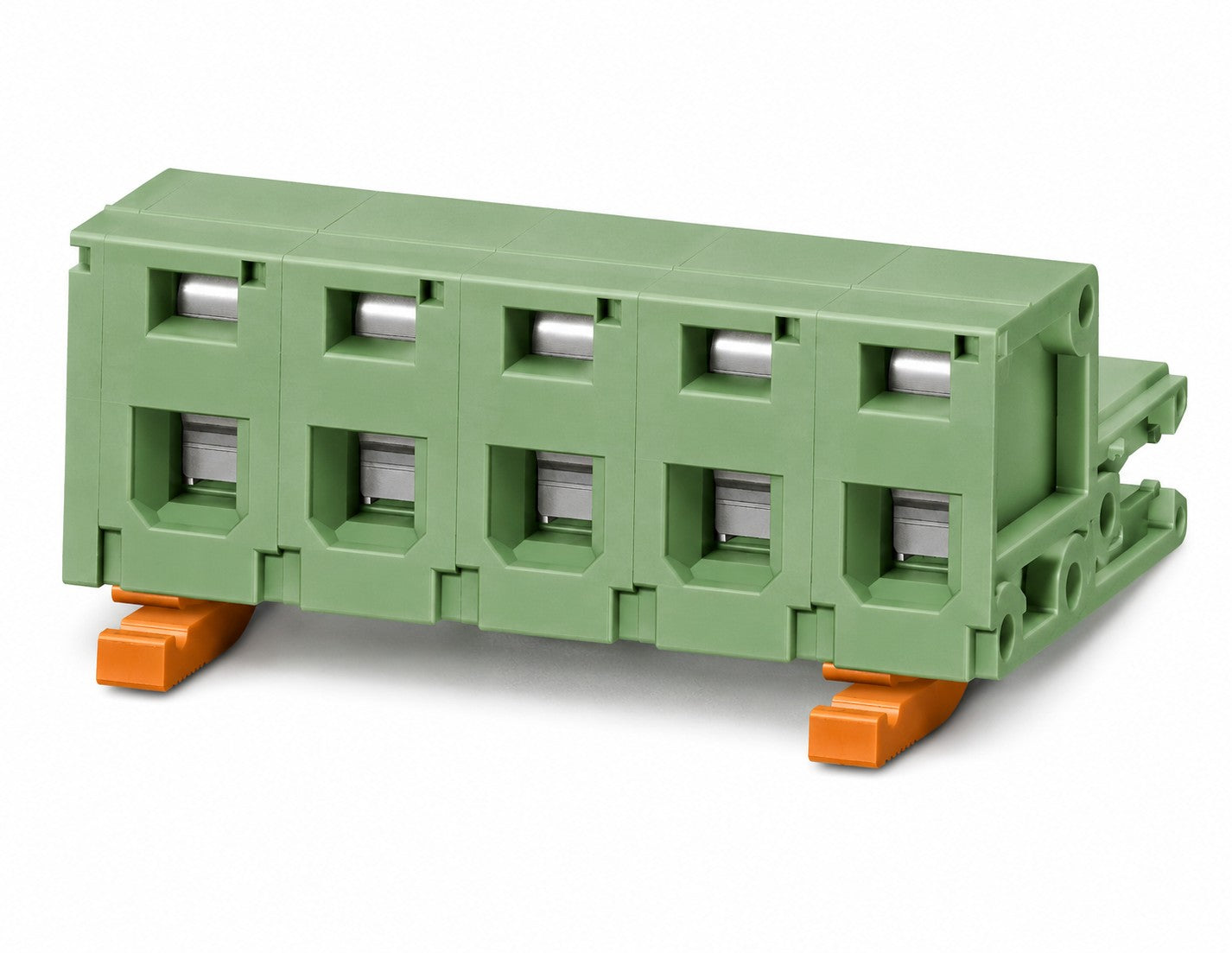

Name: EB1740 SERIES Tool Required Pluggable Blocks
Brand: ebyelectro
Availability: InStock

Terminal Blocks | Spring | Pluggable | Tool Required >

Approvals

1 1

Power

EB1740 Series - Spring - Pluggable - Tool Required - 7.5mm

Request Sample Request 3D File

EB1740 Tool Required Pluggable Block. It has a centerline spacing of 7.5mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It accommodates wire sizes from 14-26AWG. It includes up to 16 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polyamide, UL 94V-0. Feature: Card Edge Connector.

Maximum number of positions 16

Centerline Spacing 7.50mm Spacing (0.295")

Electrical

Voltage Rating 300 VAC

Current Rating 10 Amps

Wire Range Min / Max 14-26AWG

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material: Polyamide, UL 94V-0

Contact Clip Material: PhBz, Tin Plated

Wire Retention Spring: Stainless Steel

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
